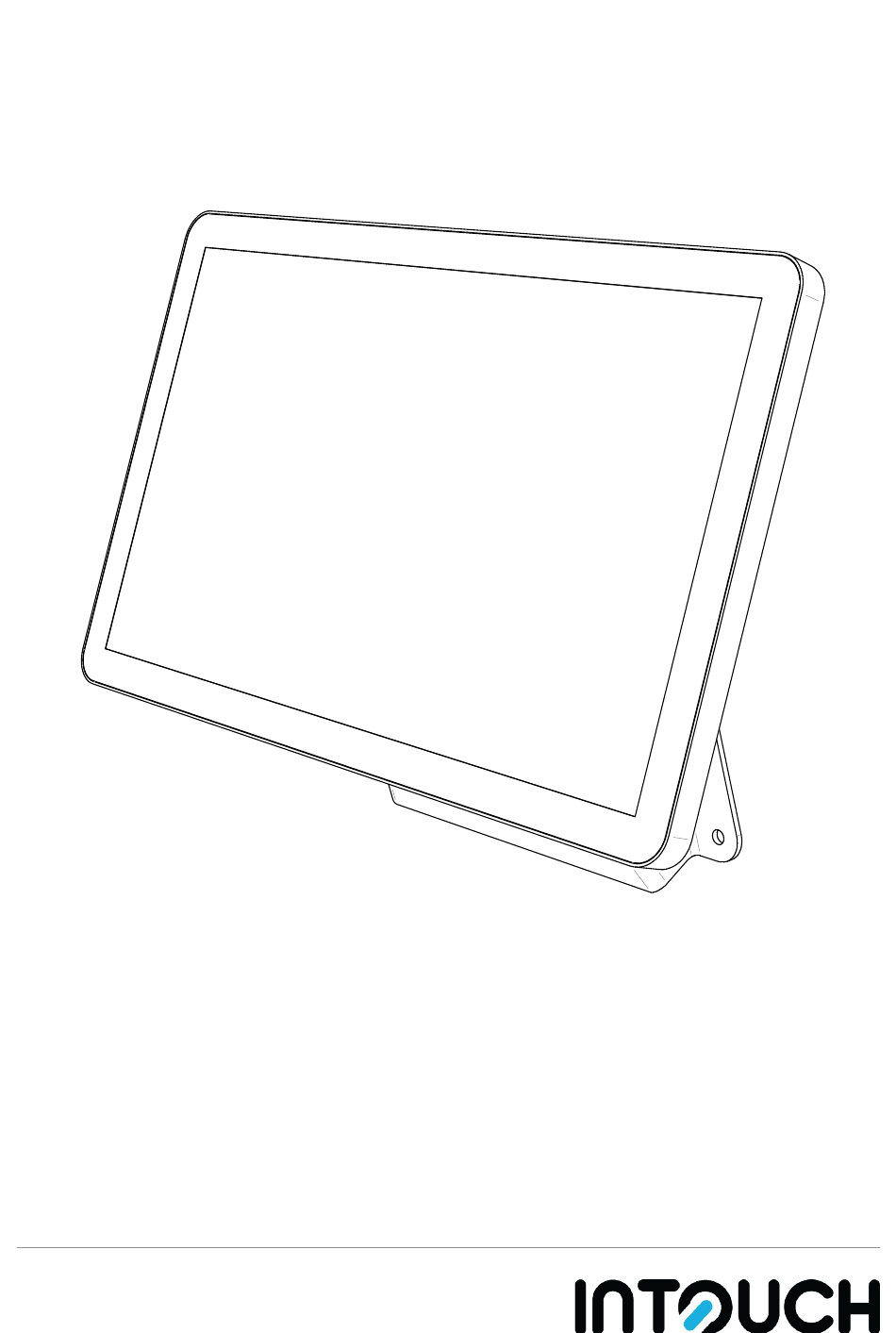

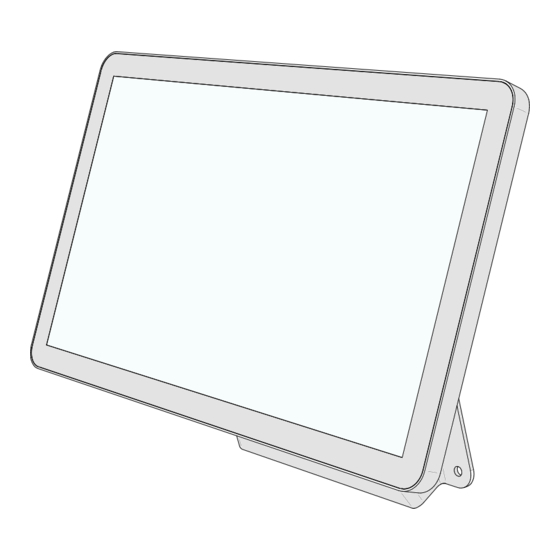

KIO-LITE-215L-WM
- 21.5 inch Touch Screen Display Kiosk
Wall Mount Configuration
1920 x 1080 Resolution
21.5 inch Active Area - 477 x 269 mm
16:9 Aspect Ratio
KIO-LITE-215L-WM
USER MANUAL
Intel NUC PC
Optional Accessories: Camera, EFTPOS Terminal Mount, Card Reader and 2D Scanner
Overall Dimensions: 380H x 530W x 180D
Product data available in DXF and 3D PDF formats
COPYRIGHT 2020 - INTOUCH SCREENS
Advertisement
Table of Contents
Related Manuals for InTouch KIO-LITE-215L-WM
Summary of Contents for InTouch KIO-LITE-215L-WM
- Page 1 16:9 Aspect Ratio KIO-LITE-215L-WM USER MANUAL Intel NUC PC Optional Accessories: Camera, EFTPOS Terminal Mount, Card Reader and 2D Scanner Overall Dimensions: 380H x 530W x 180D Product data available in DXF and 3D PDF formats COPYRIGHT 2020 - INTOUCH SCREENS...
- Page 2 Overall Dimensions: 380H x 530W x 180D *Cabling and external power supplies not illustrated Wall Mounting Detail Product data available in DXF and 3D PDF formats COPYRIGHT 2020 - INTOUCH SCREENS Requirement: You will need two power points to connect the screen and media player. Network: You have the option to connect the media player to your network via WiFi or Ethernet.
- Page 3 KIO-LITE-215L-WM BACK VIEW* *The default setting for the NUC is to auto start when connected to power Intel NUC ON / OFF button located under the rear cover. (This can be accessed while the cover is in place) ouch Screen Display Kiosk...
- Page 4 For further information on securing your kiosk, do not hesitate to contact us on support@intouchscreens.com.au CLEANING INSTRUCTIONS Applicable to touch screens and kiosks: InTouch suggests using an isopropyl alcohol spray and clean microfibre cloth. Caution: DO NOT use abrasive cleaners, solvents or cloths. For more information please visit www.intouchscreens.com.au/cleaning...
