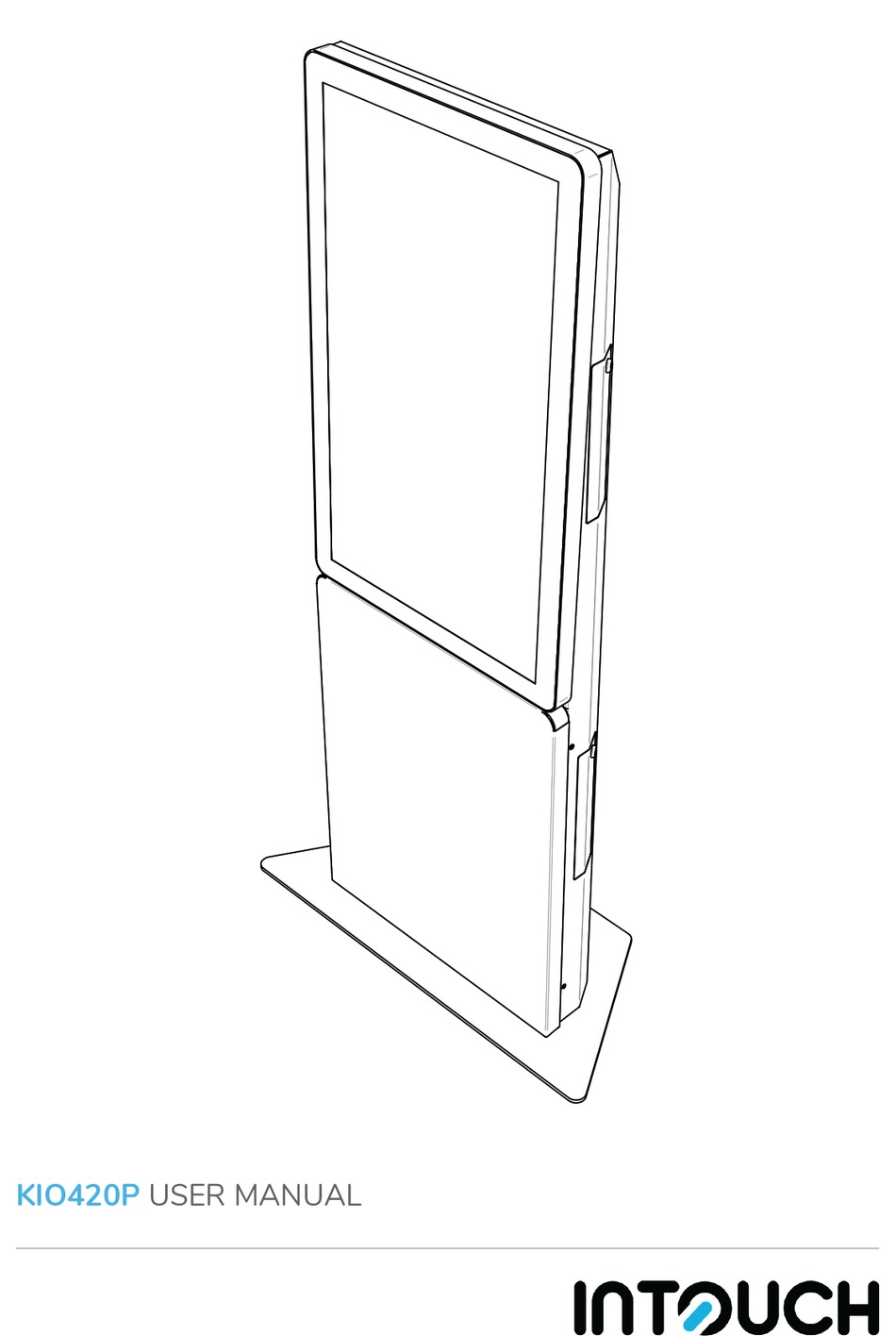

- Page 1 Cable access KIO420P USER MANUAL 5 Mounting Holes to suit (1/2") Fasteners...
- Page 2 Overall Dimensions: 1832H x 921W x 400D display cable. Product data available in DXF and 3D PDF formats HDMI (VGA cable not always provided with kiosk) COPYRIGHT 2020 - INTOUCH SCREENS Touch Screen Step 2. Connect all USB devices. Optional Devices Step 3.
- Page 3 KIO420P - INTERNAL ACCESS To access the inside of the kiosk use the provided key to open the two access panels shown in the diagram. (The top panel will reveal the connector ports on the touchscreen) To re-attach the access panels place the with the steal tab in first then resuce the lock.
- Page 4 M12 (1/2") Fasteners CLEANING INSTRUCTIONS Applicable to touch screens and kiosks: InTouch suggests using an isopropyl alcohol spray and clean microfibre cloth. Caution: Be careful when cleaning your kiosk to avoid vinyled graphic areas so as not to damage the artwork. DO NOT use abrasive cleaners, solvents or cloths.
