INSS215 SPECIFICATIONS

Touch Screen
1
• 21" active viewable area
• 10-point PCAP multi-touch
• 1920 x 1080 Native Resolution
• Built-in stereo speakers
• Compatible with Windows 7,
8 & 10

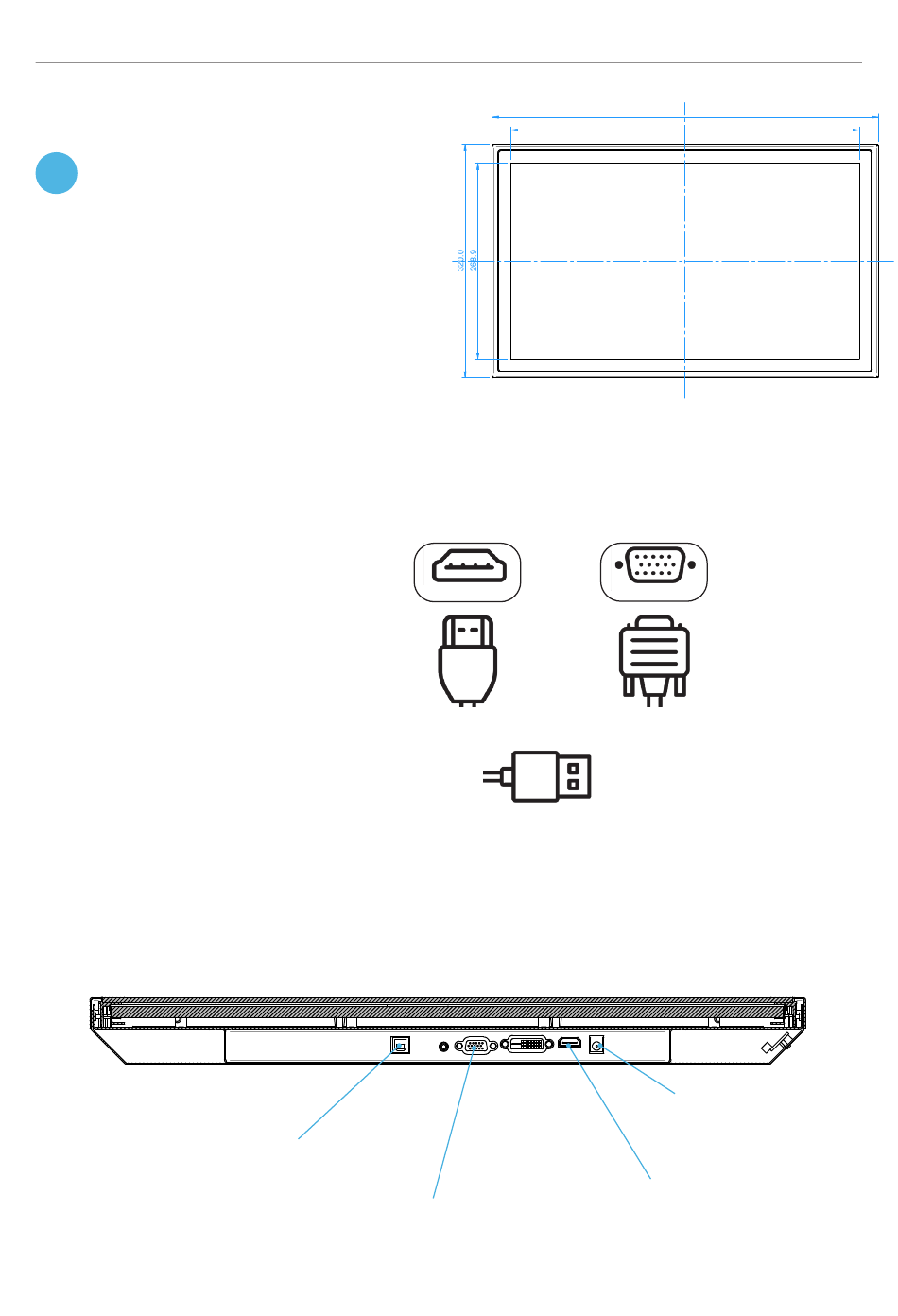

CABLING INFORMATION

Step 1. Connect your desired
display cable.
Step 2. Connect USB touch
cable
Step 3. Connect 12V power
cable
USB Touch
Port
INSS215
INDT101
INDT156
INDT190
(Cross section view of INSS215 cable ports)
INSS215 - Cutaway View
VGA Port
HDMI
INSS101 - Cutaway View
INSS215
- 21.5 inch PCAP Multi-point Touch Screen
1920 x 1080 Resolution
21.5 inch Active Area - 477.4 x 268.9 mm
16:9 Aspect Ratio
External Power Supply - Input 100-240V ~ 50/60Hz 1.2A, Output 12V - 3000mA
Power Consumption: 20W on - <2W standby
Weight: 5.9 KG
Product data available in DXF, 3D PDF and STEP formats
COPYRIGHT 2020 - INTOUCH SCREENS
INDT215
INDT320-NB (Side View)
529.0
477.4
476.6
VGA
12V Power
Port
HDMI Port
INDT320
4
22.5
5
INSS1
