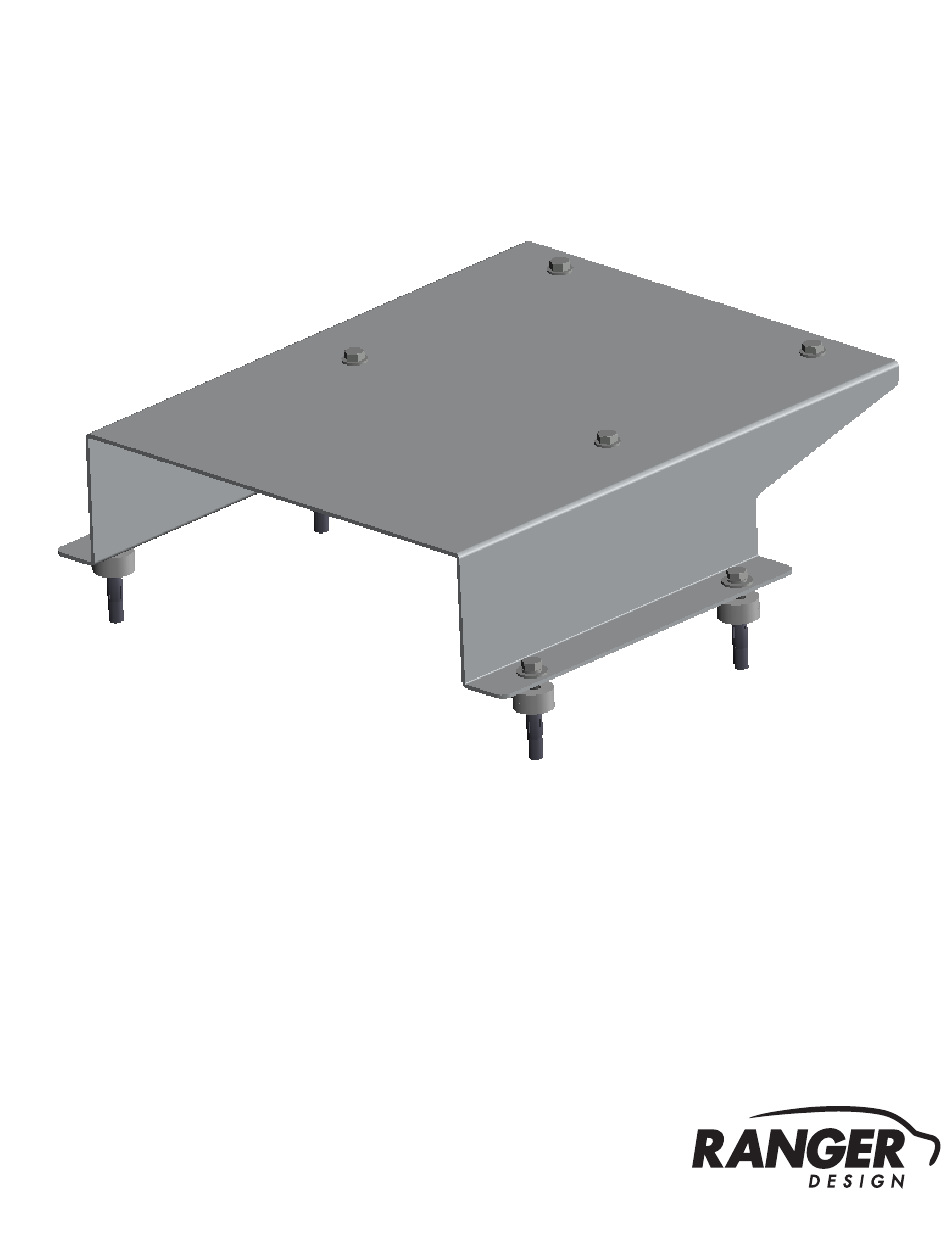

- Page 1 INSTALLATION GUIDE 5058 Raised Base Kit For Cab Box GM Savana / Express...
- Page 2 QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup........................................3-4 Phase 2 - Installation q 2.1 Assemble with 5045 Cab Box................................ q 2.2 Installation ......................................q 2.3 Using the Plusnut Tool..................................REQUIRED ITEMS q Cordless Impact q Cordless Drill q Tape Measure q Marker q 7/16”...
- Page 3 1.1.2 Verify all parts are present. BILL OF MATERIALS Item No. Description Qty. 54-580 Base - for Cab Box, GM VAN 90-5058 Install Fastener Kit 5058 Installation Guide | REV. A1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 4× 4× Regular 1/4" # 98-118 ZINC #94-112 Serrated Nut Spacer 8× 8× 0.375" ID, × 1.0" OD × 0.25" LONG # 98-157 NYLON 5058 Installation Guide | REV. A1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 Adjust the position of the cab box raiser to avoid any items underneath. TOOLS q Cordless drill q 1/2” Drill Bit q Plusnut tool q 7/16” Socket HARDWARE USED 4× 4× #94-130 1/4" Plusnut 5058 Installation Guide | REV. A1 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 #90-130 Hex Bolt 1/4" × 2" #98-118 Lock Washer #98-106 Flat Washer #98-157 Spacers ( QTY = G ap beTween floor and end panel 5058 Installation Guide | REV. A1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 Plusnut and the 9/16" wrench as shown. a 7/16" socket until the Plusnut locks. Then remove the bolt by turning the impact in reverse. FORWARD REVERSE 5058 Installation Guide | REV. A1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 You have successfully installed your 5058 Raised Base. Thank you for doing business with us. Ranger Design cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 5058 Installation Guide | REV. A1 | Page 8 For technical support, contact us at 1-800-565-5321...
