Indoor motion detector
Description
The indoor motion detector detects moving heat sources and activates or deactivates Niko Home Control functions.

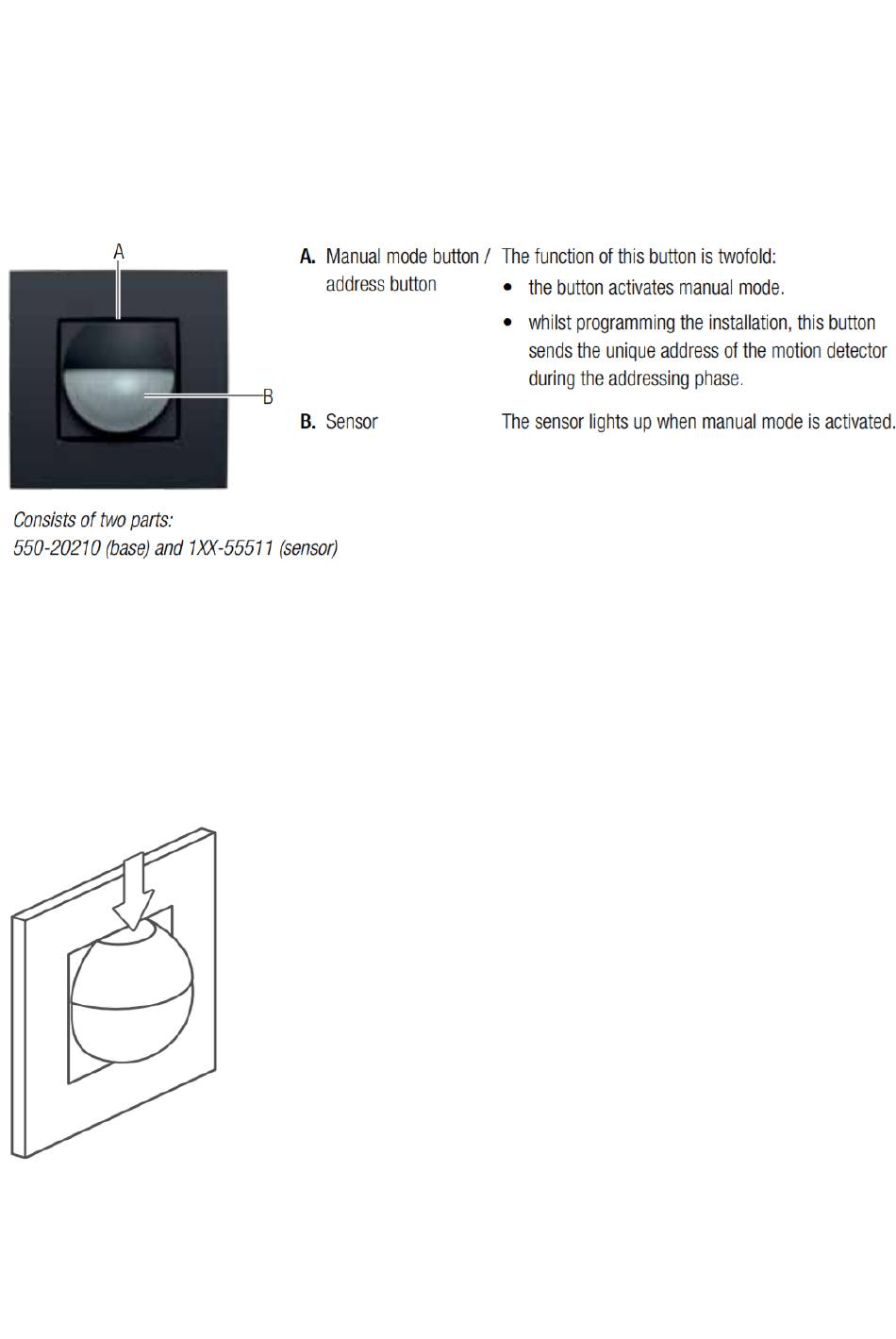

Overview
Operation
The indoor motion detector detects moving heat sources by using Passive Infrared Technology (PIR). When motion is
detected, the motion detector activates or deactivates certain Niko Home Control functions. These functions are assigned
whilst programming the installation by linking functions to the unique address of each indoor motion detector.
When a person enters the detection area, the motion detector initiates the starting behaviour. When the person has left
the detection area or remains motionless within the area, the stopping behaviour will be initiated as soon as the switch-off
delay has elapsed.
The indoor motion detector includes a manual mode option. In manual mode, the indoor motion detector will behave as if
there were permanent motion. Press the manual mode button to activate or deactivate this mode. If manual mode is not
deactivated, the function linked to that motion detector will remain active for 4 hours.
Installation
The indoor motion detector consists of two parts: the sensor and the base. The bridge is mounted onto a standard flushmounting
box using screws.
Advertisement
Table of Contents
Related Manuals for Niko 550-20210
Summary of Contents for Niko 550-20210
- Page 1 Indoor motion detector Description The indoor motion detector detects moving heat sources and activates or deactivates Niko Home Control functions. Overview Operation The indoor motion detector detects moving heat sources by using Passive Infrared Technology (PIR). When motion is detected, the motion detector activates or deactivates certain Niko Home Control functions. These functions are assigned whilst programming the installation by linking functions to the unique address of each indoor motion detector.
- Page 2 The indoor motion detector is for indoor use only. Mount the indoor motion detector at 90 - 110 cm above floor level. The maximum detection range is 8 m. To install the indoor motion detector: Connect the base to the two-wire bus cable. There are two “B1” contacts and two “B2” contacts at the back of the base. Connect each individual wire to one “B1”...
- Page 3 (up to a maximum of 1,200 lux or daylight). Turn the potentiometer counter-clockwise to increase the light sensitivity (up to a minimum of 5 lux or night-time). Setting the switch-off delay The switch-off delay can be set in the Niko Home Control programming software. After the installation, the user can adjust this setting himself in the software. Technical data...
