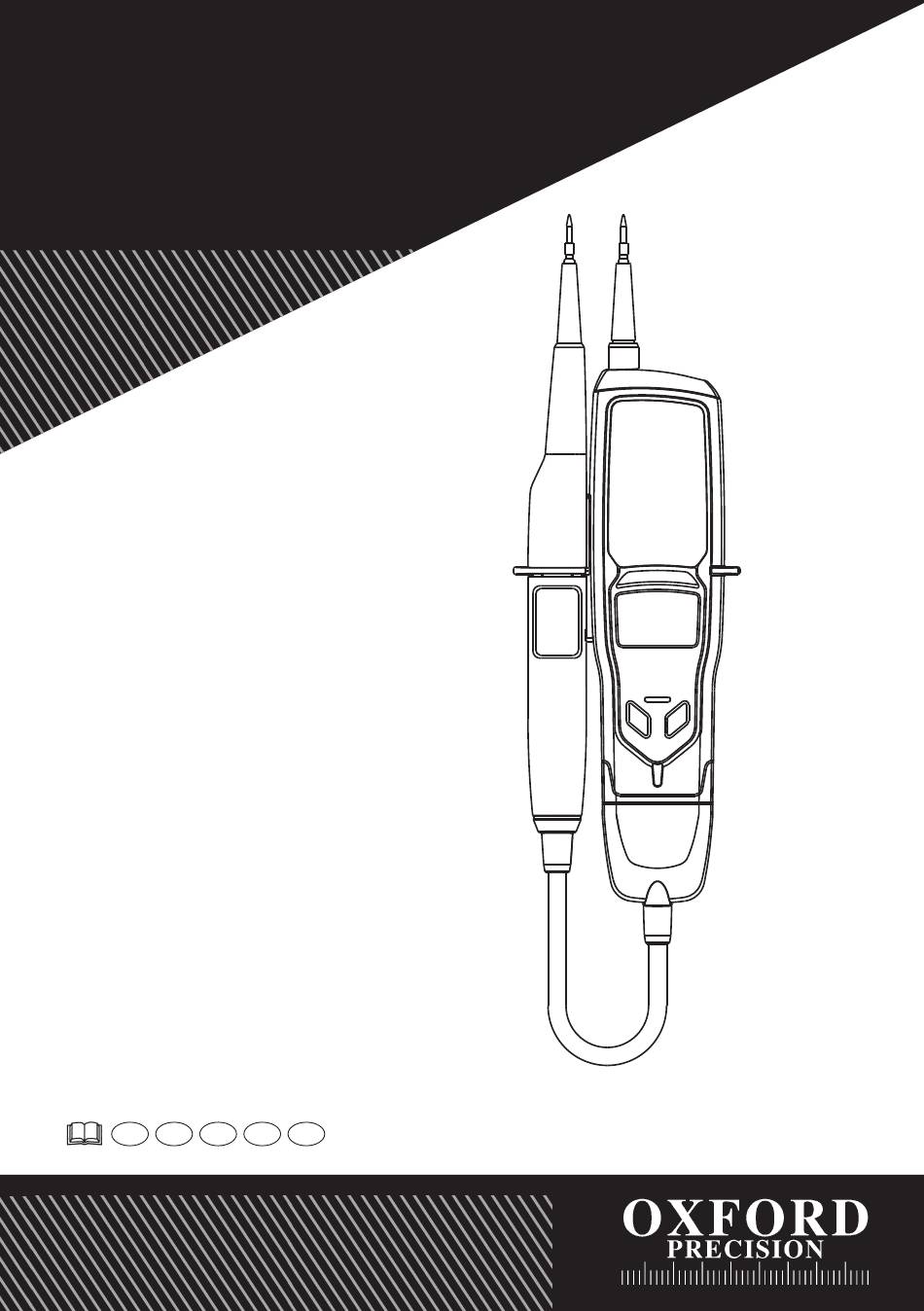

VOLTAGE TESTER
• Voltage test up to 1000V AC/DC
• Single-pole phase test
• Continuity test
• Rotary field indication
• Polarity indication
• Hold function
• CAT III 1000V
• CAT IV 600V
• LCD backlight
• Clear audible tone
• Built in torch
• Probe tip protection cap
OPERATOR'S MANUAL
ORDER CODE: OXD-516-8260F
CZ
HU
PL
cromwell.co.uk
SK
TH
Advertisement
Table of Contents
Related Manuals for Oxford PRECISION OXD-516-8260F
Summary of Contents for Oxford PRECISION OXD-516-8260F
- Page 1 • Rotary field indication • Polarity indication • Hold function • CAT III 1000V • CAT IV 600V • LCD backlight • Clear audible tone • Built in torch • Probe tip protection cap OPERATOR’S MANUAL ORDER CODE: OXD-516-8260F cromwell.co.uk...
-
Page 2: Symbols Used
SYMBOLS USED Warning of a potential danger, comply with Operator’s manual. Caution! Dangerous voltage. Danger of electric shock. Double insulation. Suitable for live working. Conforms to European Union Directives. Measurement Category III is applicable to test and measuring circuits connected to the distribution part of the building’s low- voltage MAINS installation. - Page 3 Safety can no longer be insured if the Voltage Tester: • Shows obvious damage • Does not carry out the desired measurements • Has been stored for too long under unfavourable conditions • Has been subjected to mechanical stress during transport. All relevant statutory regulations must be adhered to when using this instrument Safety Advice •...
- Page 4 SPECIFICATIONS: LEDS LED voltage range 12V to 1000V AC/DC LED resolution ±12,24,50,120,230, 400, 690,1000V AC/DC Tolerances -30% to 0% of reading Frequency range 40HZ to 400HZ Response time ≤1 second Auto power on Auto power on ≥12V AC/DC LCD display 1999 counts (3 1/2 digit ) LCD display with bar graph &...
-
Page 5: Product Features
PRODUCT FEATURES Handle test probe - (L 1) Instrument test probe + (L2) LEDs for voltage display Torch LED for AC voltage LED for positive voltage LED for “ ” warning voltage mode display LED for negative voltage LED for left rotary field 10. -
Page 6: Voltage Test
VOLTAGE TEST • Connect both test probes with power source. • The Voltage Tester switches on automatically when used on voltages higher than 6V. • The voltage is displayed via LEDs. The different indicating signals of the Voltage Tester (including the ELV limit indication) are not to be used for measuring purposes. -
Page 7: Hold Function
ROTARY FIELD INDICATION The Voltage Tester is equipped with a double-pole rotary field indicator. The rotary phase indication is always active. The symbols “R”or “L’.’ are always displayed. However, the rotary direction can only be determined within a three-phase system. Here, the instrument indicates the voltage between two external conductors. -
Page 8: Declaration Of Conformity
& specifications. Assuring the quality and performance required by all sectors of industry. OXFORD PRECISION products are fully guaranteed against faulty materials & workmanship. Should they be found to be defective, they will either be repaired or replaced free of charge (fair wear and tear and/or misuse excepted).
