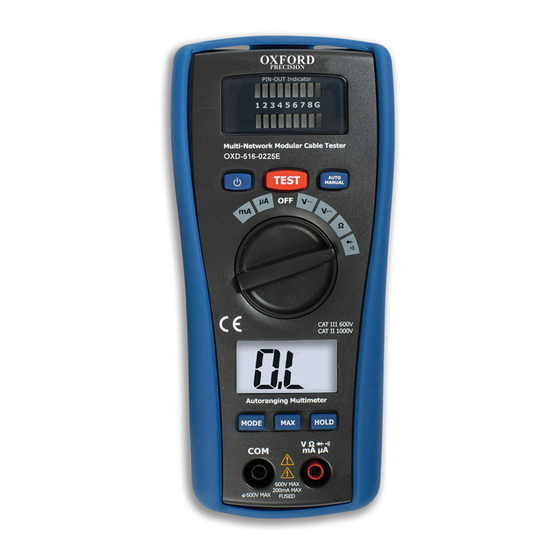

2 IN 1 LAN TESTER
& MULTIMETER
• Auto ranging
• AC/DC voltage
• Resistance
• Continuity
• Diode forward voltage
• Current
• CAT II 1000V
• CAT III 600V
• LAN cable tester
• Tilt stand
• Test leads
• Connection cables
• Carrying case
OPERATOR'S MANUAL
ORDER CODES: OXD-516-0225E
CZ
HU
PL
SK
cromwell.co.uk
TH
Advertisement
Table of Contents
Related Manuals for Oxford PRECISION OXD-516-0225E
Summary of Contents for Oxford PRECISION OXD-516-0225E
- Page 1 • Resistance • Continuity • Diode forward voltage • Current • CAT II 1000V • CAT III 600V • LAN cable tester • Tilt stand • Test leads • Connection cables • Carrying case OPERATOR’S MANUAL ORDER CODES: OXD-516-0225E cromwell.co.uk...
- Page 2 INTRODUCTION 2 in 1 LAN Tester & Multimeter is a innovative tester that allows the user easy to measure DC/ AC Voltage/Current, Resistance, Continuity, diode and verify the cable continuity, open short, cross-connect. The included remote terminator allows the user to test installed cable either at a wall jack or a patch panel adding up to value and convenience.
-
Page 3: Product Features
manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present. Double insulation Safety Precautions Improper use of this meter can cause damage, shock, Safety information injury or death. Read and understand this user’s manual Improper use of this Multimeter can cause damage, shock, injury or death. -
Page 4: Operation
& Led display for receiving end (Jack 2) Test switch for auto scan LAN tester Power switch Test switch for manual scan Digital multimeter part Description (10~17) : 10. Function switch 11. 3 1/2 Digit (2000 count)LCD display for DMM functions 12. -
Page 5: Resistance Measurement
Touch the red test probe tip to the positive side of the circuit. AC/DC Current Measurements Apply power to the circuit. Touch the red test probe tip to the positive side of the Set the function switch to the µA/mA position. Read the current in the display circuit. -
Page 6: Auto Power Off
AUTO POWER OFF The auto off feature will turn the multimeter off after 15 minutes. REPLACING THE BATTERIES Remove the protective rubber holster Under the screws and remove the back cover Replace old batteries with 2x 1.5V AAA & 9V type batteries. Replace the back cover, secure the screws and replace the rubber holster. -
Page 7: Sample Test Results
Coaxial Cable Test Plug the two attached BNC adapter cables on both RJ45 jacks. Then connect the tested cable to each end of the BNC adapter cables. For the remaining testing procedures, please refer to 10Base-T Test steps 2 to 5. Note: The centre pin of BNC should be read on LED 2. -
Page 8: Declaration Of Conformity
& specifications. Assuring the quality and performance required by all sectors of industry. OXFORD PRECISION products are fully guaranteed against faulty materials & workmanship. Should they be found to be defective, they will either be repaired or replaced free of charge (fair wear and tear and/or misuse excepted).
