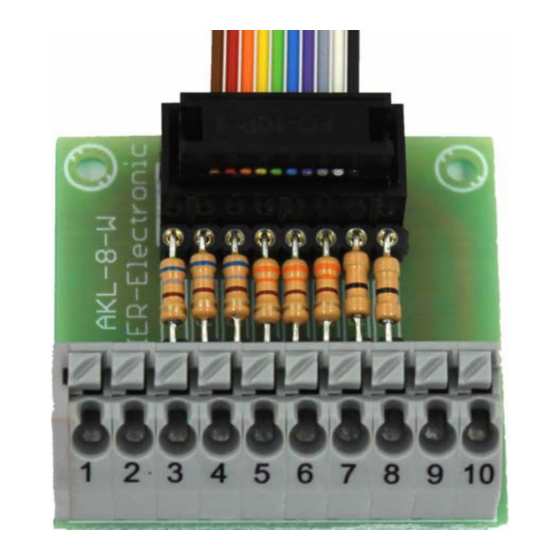

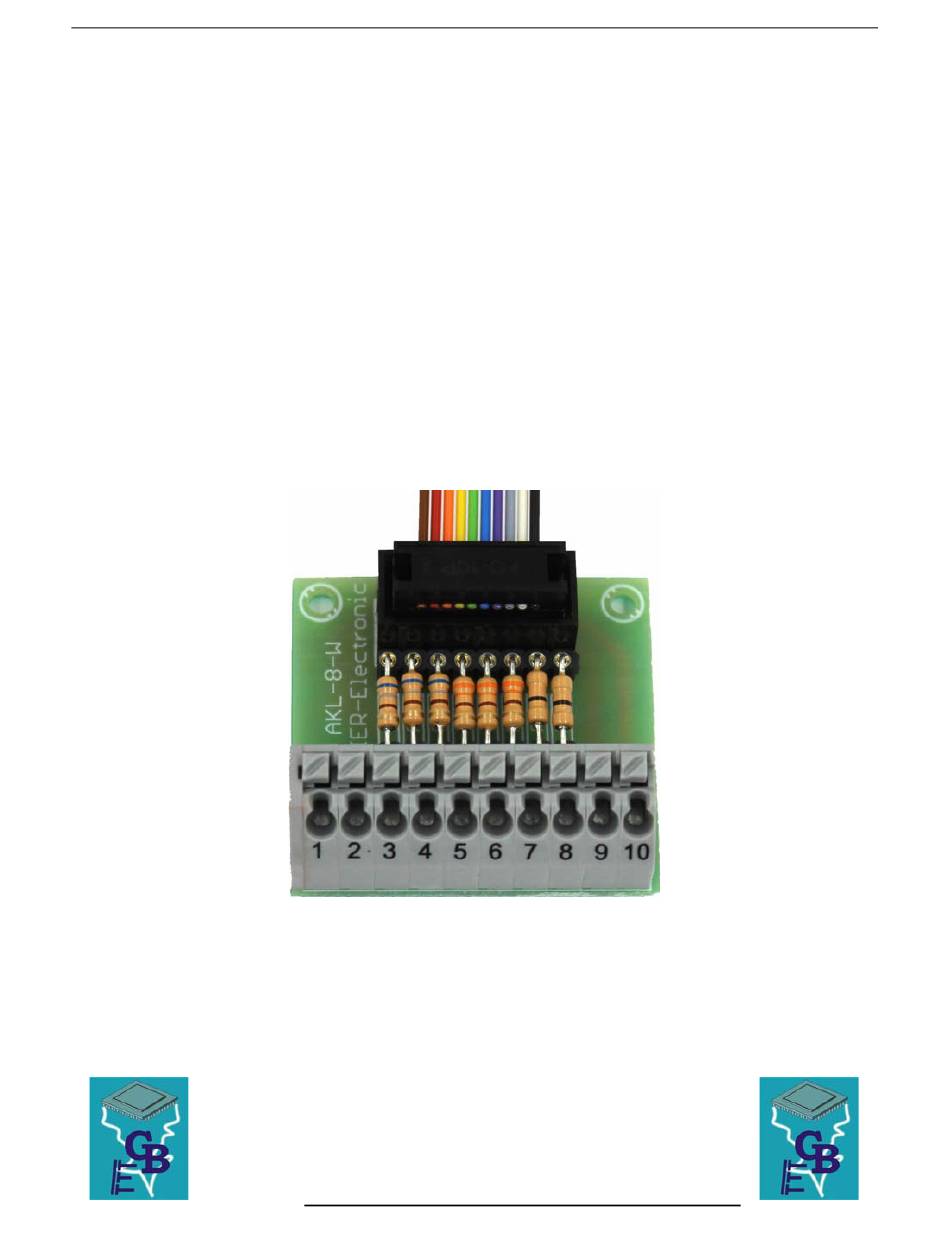

Terminal Clamp AKL-8-W
Operation Manual
Terminal Clamp
AKL-8-W
BEIER-Electronic
Winterbacher Str. 52/4, 73614 Schorndorf-Weiler
Telephone +49/7181/46232, Fax 07181/45732
eMail: modellbau@beier-electronic.de
Internet: http://www.beier-electronic.de/modellbau
10.11.2021
RC-Junky English Conversion
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKL-8-W and is the answer not in the manual?

Questions and answers

Related Manuals for beier AKL-8-W

Summary of Contents for beier AKL-8-W

  • Page 1 Terminal Clamp AKL-8-W Operation Manual Terminal Clamp AKL-8-W BEIER-Electronic Winterbacher Str. 52/4, 73614 Schorndorf-Weiler Telephone +49/7181/46232, Fax 07181/45732 eMail: modellbau@beier-electronic.de Internet: http://www.beier-electronic.de/modellbau 10.11.2021 RC-Junky English Conversion...
  • Page 2 • Speed controller UFR-1230 • Double speed controller UFR-1230-D • Light modules LM-BT-16-4 and LM-IR-16-4 Included in the delivery of the AKL-8-W are eight resistors each with the values: Ohms (only 1 Black ring), • 150 Ohms (Brown, Green, Brown) •...
  • Page 3 Terminal Clamp AKL-8-W Technical specifications Connection terminals: Sound speed controller (SFR-series) / Sound module USM-RC-3 and Light modules LM-IR/BT-16-4: Clamp 1 to 8: Switching outputs 1 – 8 or 9 – 16 (minus-switching) Clamp 9 and 10: Plus pole of supply voltage Speed controller (UFR-series): Clamp 1 to 8: Switching outputs 1 –...
  • Page 4 The connection cables of the consumer/component/light can be connected to the spring-loaded terminals of the AKL-8-W. To insert or remove a cable, just press from above with a small screwdriver on the operating lever of the terminal. This opens the clamp and the cable can be plugged in or out.
  • Page 5 Terminal Clamp AKL-8-W In this example, a standard resistor with a power of 0.250 W (1/4 W). When connecting relays or other inductive loads (e.g. motors) free-wheeling diodes (e.g. 1N4007) must be used. The free-wheeling diodes must be connected in blocking direction parallel to the consumer.
