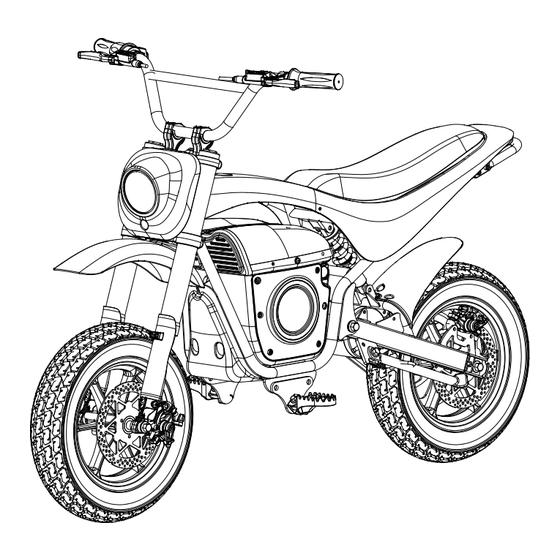

- Page 1 OWNERS MANUAL TT1600R Mini Bike Assembly Video Features and Operation...
-
Page 2: Carton Contents
Harware parts Folding Foot Front Fender Pegs Rear Fender & Tool Kit Front Wheel Battery Charger Handle Bars assembly Carton Contents Allow up to 30 Min for assembly. Located within top of the packing foam you will find the Front Fender, Rear Fender, Right and Left Footrest assemblies, Handlebar Check for all parts and hardware before beginning assembly. -
Page 3: Brake Levers And Throttle
Attaching the Handlebars and Wiring Brake levers and throttle DO NOT Squeeze the brake levers until the Front Brake has been Tools required: 6mm, 5mm, 3mm,2.5mm Allen wrench fully assembled to the bike. Place the handlebars in the Lower handlebar clamps on top of the Front fork. -
Page 4: Installing The Front Wheel
Installing the Front Brake Caliper Installing the Front Wheel DO NOT Squeeze the brake levers until the brake has been fully Install the front axle into the left fork leg far enough to install the assembled to the front fork and brake rotor. first wheel spacer. - Page 5 Installing The Rear Shock Adjusting the Brake Caliper The Rear shock is mounted to the top shock mount under the seat. There is a short tube that holds the bike in a lowered position for After you have tightened the brake mounting bolts, squeeze the shipping purposes.
-
Page 6: Checking The Tire Pressure
Install the Rear Fender Checking the Tire Pressure Using (3) 6mm allen bolts, attach the Rear Fender to the top of the Both tires should be set to 40-45 P1SI. We strongly recommend Rear Fork just behind the rear shock. Tighten securely with a 5mm 45 PSI for persons over 175 lb when riding this product. -
Page 7: Key Switch Operation
If your these keys in a safe place. The TT1600R has a three (3) position charger does not get warm during use, it does not mean that it is switch. - Page 8 Side Lighting The side lighting is OFF when the bike is received. TT1600R has a top speed of 32 mph on the High setting and a top We have incorporated LED lights on the sides of the bike for both speed of 21 mph on the low setting.
-
Page 9: Features And Controls
Features and Controls... -
Page 10: Pre-Ride Checklist
It is up to the end user to know the local laws governing not be any unusual rattles or sounds from loose parts or broken such vehicles and where they are legal to be ridden. Burromax components. If you are not sure, ask an experienced mechanic to makes no claim that these bikes are street legal. -
Page 11: Proper Clothing
These bikes were manufactured for performance and 2. Use ONLY Burromax Li-ion Battery Charger Specific to durability but are not impervious to damage. Jumping or other the TT1600R. -
Page 12: Running Time
Running time Run time may vary depending on many factors such as riding Operation and Performance Notes conditions, rider weight, climate and/or proper maintenance. This bike was intended for enjoyment for the entire family as a Pit Distance and performance testing was done with 200 lb riders and Bike, Camping Bike, Hunting mobility or to cruise around the these bikes were tested to have a 44 Mile range on the low setting property on. -
Page 13: Repair And Maintenance
Squeeze the brake lever one more time and hold pressure on the lever while tightening the caliper adjusting bolts. The TT1600R is equipped with Hydraulic brake systems front and This will align the caliper and brake pads. The rotor should be rear. - Page 14 Remove the rear wheel, remove axle nut and axle and remove the chain from the sprocket--pull the wheel out. Note the sequence of the hardware for assembly TT1600R Axle Assembly B-1 Rear Axle B-2 Rear Axle Adjuster Plate (2) B-3 Rear Axle Spacer-Sprocket and Disc Sides -Outer (2) 22mm B-4 Caliper Mounting Plate B-5 Rear Axle Spacer-Disc Side –Inner ONLY-22mm...
- Page 15 Install the new chain by lacing the chain around the motor sprocket. Maneuver the chain onto the sprockets on the rear wheel and motor. Pull the chain tight. Place both ends of the chain at 10 o’clock on the rear wheel sprocket.
-
Page 16: Battery Replacement
WARNING: Make sure the power switch is in off position before performing any maintenance. Li-ion battery (1-52v-23.8ah) contains a non-replaceable internal breaker. Only use the Burromax Li-ion battery and Li-ion Battery charger together. Do Not attempt to replace this battery with anything other than the OEM battery With the battery cover removed, disconnect the hold down strap. -
Page 17: Specifications
Fork: 36mm Inverted Hydraulic Rear Shock: 150mm Coil Over Hydraulic-Adjustable Weight Capacity: Wheel: 3.5x10” 6 Spoke Alloy Up to 300 lbs. on Flat Pavement/Dirt Tire: 100/90-10 Burromax Track Tire For Off Road Riding we recommend 180 lb max Brakes: 180mm Hydraulic Disc F/R... -
Page 18: California Prop 65 Warning
California Prop 65 Warning Burromax Limited Warranty If you have defects of quality or workmanship Burromax Burromax does not offer an extended warranty. If you will send you replacement parts free of charge for a have purchased an extended warranty, it must be honored period of 90 days from date of purchase.
