- Page 1 C&C 27 Makai Welcome Aboard Quick Start Guide/Boat Manual...

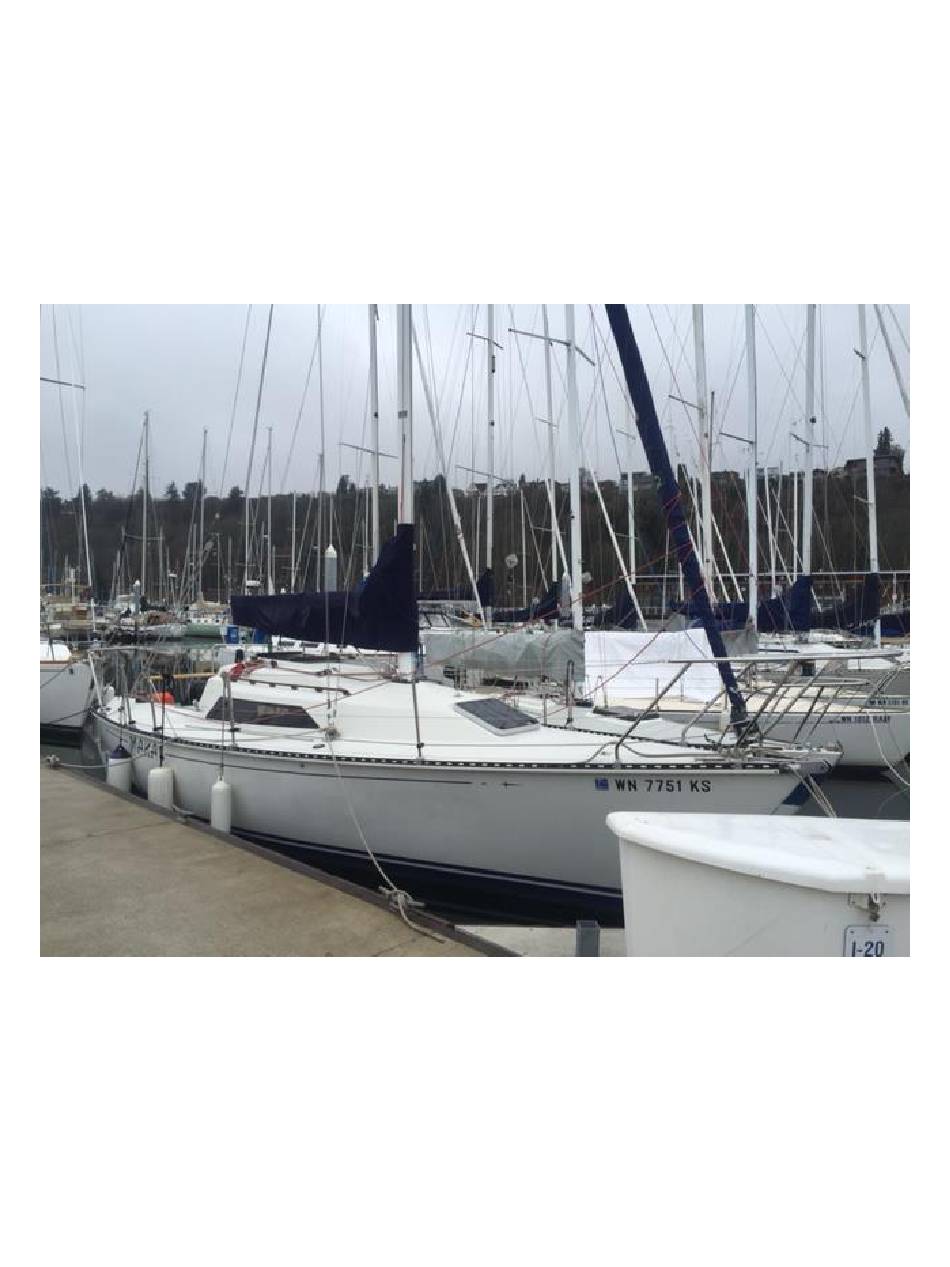

- Page 2 Makai C&C 27 - Boat Manual Seattle Sailing Club Welcome aboard our C&C 27Mk. II, Makai, designed as a pocket cruiser with great sailing performance. The hull is a round-bilge design with a deep fin keel, raked bow and a plumb transom stern fitted with an outboard rudder.
-
Page 3: Table Of Contents
Table of Contents Boat Specifications p. 4-5 C&C 27 Diagram p. 5 Inventory list p. 6 Safety Equipment p. 7-8 Inboard Systems The Engine-Starting/Stopping/Operating p. 9-15 Engine diagrams p. 12-15 Refueling p. 11 Electrical System-AC/DC p. 16 Electronics p. 17-18 DC/AC Panel Diagram p. -
Page 4: Boat Specifications
Boat Specifications LOD: 26’6” Beam: 9’3” Draft: 4’10”' Mast Height Above Water: 33.5’ Fuel Tank capacity: 10 gallons diesel Water Tank capacity: 20 gallons Anchor: Danforth with Rode Length: Chain is 30,’ line is 150’( ”) twisted nylon 7/16 A/C Outlets: 3outlets located aft of galley sink, below port settee & starboard/below head sink 12V Outlets: none Inverter with AC plugs for phone charger Engine: Mercury 9.9 HP electric start outboard... -
Page 6: Inventory List
Makai’s Inventory List OPERATIONS EQUIPMENT Location Danforth anchor w/30’chain and 100’ line. Anchor Locker-Bow Boat Hook Above Port settee 2 Winch handles Safety Box above Port settee Roller Furling Headsail w/ attached sheets. Forestay SAFETY Location 6 Type II PFDs in bag Below V-berth 1 Type IV Throw cushion Portside quarterberth... - Page 7 Safety Equipment/USCG Required items Registration- Makai’s papers are kept in the front of this manual. PFDs- Although each sailor should supply their own PFD to fit their body type and usage requirements, many times there are extra personal floatation devices stowed under the v-berth. Know where and how many are onboard before you leave the dock.
-
Page 8: Safety Equipment
SAFETY EQUIPMENT (continued) PFDs under V-berth Safety box w horn and flares/boat hook – stbd settee Additional safety equipment: Wooden plugs- tapered wooden plugs are stowed in drawer underneath the galley stove in case of valve failure. Locate each valve before sailing. First Aid Kit-Located next to VHF on starboard. -
Page 9: The Engine-Starting/Stopping/Operating
C&C 27 Makai’s SYSTEMS The Engine-Starting/Stopping/Operating Makai is powered by a 9.9 HP Mercury 4 stroke outboard engine. This is a great engine and if cared for during your charter will serve you well. Always make sure the engine is getting coolant, lubrication, and proper fuel by completing the checklist each day. - Page 10 Starting the engine- After completing the start checklist you are ready to start and warm up the engine. With the engine in neutral First push in the Throttle Only switch, throttle up slightly and push the start button. Once running, bring the engine back to neutral position and the Throttle Only button will pop out allowing you access to gears.
-
Page 11: Refueling
Flooded engine- If engine still won’t start you may have a flooded engine. If you smell rich fuel and engine hasn’t started after 6 or more seconds, you have probably flooded. If so push choke in, turn throttle way up and push start. -
Page 16: Electrical System-Ac/Dc
Electrical System DC System C&C27s have two 12v batteries. Battery selector knob is aft and port of the companionway steps. DC #1 battery is the engine start battery. DC #2 House battery will activate all switches on the DC panel operating lights, navigation instruments, propane solenoid, bilge pump, etc. -
Page 17: Electronics
Electronics- to Activate DC systems, the DC Battery selector knob and “Main Cabin Supply” breaker must be “On” (See picture p. 18) To access the VHF radio, turn on the “VHF/Instruments” switch on the DC panel then press VHF- right- hand power button to turn on the unit. The lower knob tunes in the squelch til just not “fuzzy”. -
Page 18: Dc/Ac Panel Diagram
DC /AC Panel DC Switches (Main DC switch next to selector knob p. 16) Cabin lights Running Light (sailing and motoring) Steaming Light (motoring) Masthead Light (anchoring) Foredeck Light Depth Spare AC Switches AC Main Breaker (Reverse Polarity- If red light comes on turn off breaker and check connection Battery Charger Main Cabin Outlets... -
Page 19: Accommodations
Accommodations Makai has a comfortable cabin with sleeping quarters in v-berth, main settee and a quarter- berth. She sleeps 5 w/ V-berth (short dbl) port settee (dbl) and single quarter berth aft to port. The salon lays amidships and is fitted with straight settees to port and stbd. There is a drop down table large enough to double as a chart table. -
Page 20: Galley Systems
Galley Systems C&C27s have a very functional galley with a two-burner propane stove, an ice box and stainless sinks with a fresh water hand pump. The salon lays amidships port and stbd. There is a drop down table large enough to double as a chart table. Propane Stove/Oven system When operating the propane stove it is crucial to follow these steps for safe operation. -
Page 21: Fresh Water System
Galley Systems (cont.) Ice Box/Refrigerator- C&C 27s are equipped with an icebox Replenish ice as needed every other day and eat most vulnerable foods first…raw meats, berries.. The space works well if kept organized. It is best to keep meats and heavy liquids close to the bottom and put produce, eggs and cheeses up higher. -
Page 22: Head System
Head Systems Head/Holding Tank C&C 27s have a manual marine toilet emptying into a 20 gallon holding tank located forward under the v-berth port side. Plan on 3 gallons/per person /per day capacity which means pumping out approximately every other day on an extended trip. Please follow the steps below for proper head use (instructions also next to head) 1) Open seacock for intake 2) Move wet/dry bowl selector left to flush (towards handle) and pump handle to add... - Page 23 Head Systems (cont.) Steps to Pumping out the Holding Tank: 1) Locate “Waste” deck plate and plan your docking approach to the pump-out station. 2) Tie Bow/Stern and spring lines to assure your boat is stable before beginning to pump out tank. 3) Locate deck key and open fitting making sure not to drop overboard! 4) Run pump hose into water, open red valve and prime with seawater by pushing the green button to turn on.
-
Page 24: Anchor System
Anchor System Makai is equipped with a Danforth anchor with 30’ of chain and 100’ of 7/16” twisted nylon line marked in 30’ increments with yellow tags. Ground tackle is stowed in the chain locker accessed from the foredeck. C&C 27s draw 4.8 feet so best to allow for a minimum of 10 ft. clearance. Never anchor in less than a 3:1 ratio line to water depth 4/5:1 is best 7-10:1 for storms. -
Page 25: Sails And Rigging
Sails and Rigging C&C 27s are designed as performance pocket cruisers. Full sail can be carried in up to18 knots but reduce sail at whatever point feels appropriate for the conditions and crew. Main Sail adjustments- Outhaul and boom vang adjustments run to deck clutches then cockpit winches. - Page 26 Main Sheet/Traveler Backstay adjustment Raising and Lowering the Main are rigged to hold up the boom with a topping lift. Never open topping lift cleat without C&C 27s controlling weight of boom! You could give someone a head injury. Rigging the Main: To rig the main, first un-attach halyard from the end of the boom.
- Page 27 Reefing the main When the wind forecast calls for strong winds or you feel uncomfortable in the current conditions, reefing the main sail is a good option to decrease the boats power. The main has two reef points with each reefing line (white-1 reef, red-2 reef) running along the boom forward then aft along the deck to a winch accessible port of the companionway.
- Page 28 Reefing (Cont) Reefing hook and cringle Reefed main/ Reefing ties not too tight Shorter sail Double- Reefed...
-
Page 29: Mainsail Reefing Diagram
Mainsail Reefing Diagram Ties Reef Point Reef Point Reef lines Reefing cringles Reef Hook Bowline Steps to Reefing the Main: 1) Let wind out of main (head upwind, sheet out or heave-to) 2) Tension toping lift to stabilize boom 3) Ease main sheet and boom vang 4) Ease halyard to desired reef point and hook reef hook into cringle 5) Re-tension halyard 6) Tighten associated reefing line until new clew is touching boom and... -
Page 30: Roller Furling Headsail
Roller Furling Headsail- Working as a genoa or any number of shorter sail sizes, this furling system works well. Best to ease the furling line slowly by keeping a little tension on the furling line when opening the sail on windy days to avoid a snarl (override) up front. Also, furling the sail works easier if you head downwind to a broad reach on a windy day. -
Page 31: Securing Makai- Post Sail Checklist
Securing C&C 27s at the end of your sail Disembarking When you are done sailing for the day, it’s time to make sure the boat is ready for the next person. Follow the securing checklist! Extra checklists are found at the beginning of this Boat Manual. Especially complete the following procedures: -Make sure to clean up any mess, crumbs, dirty dishes, bottles or dirt that may have been overlooked. - Page 32 Securing the boat Dock Lines and Fenders Make sure to keep centerline of boat parallel to dock. Bow sits further from dock than stern. Attach a bow/stern line and a fore/aft spring line. Fenders should be positioned to protect boat. Before walking away, move boat fore/aft, side to side by hand to ensure safe tie-up Boom horizontal-Proper Bow/Stern/Spring lines/Dock or Boat height fenders Shore power cord run through chock...
- Page 33 Securing the boat (cont.) Cockpit tidy Cockpit cushions in lazarette Stern Line in tight to keep Bow from swinging against dock Turn in the completed checklist!
