C&C NorthCoast 255 Hard Top Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

NorthCoast 255 Hard Top
By C & C Marine, Inc

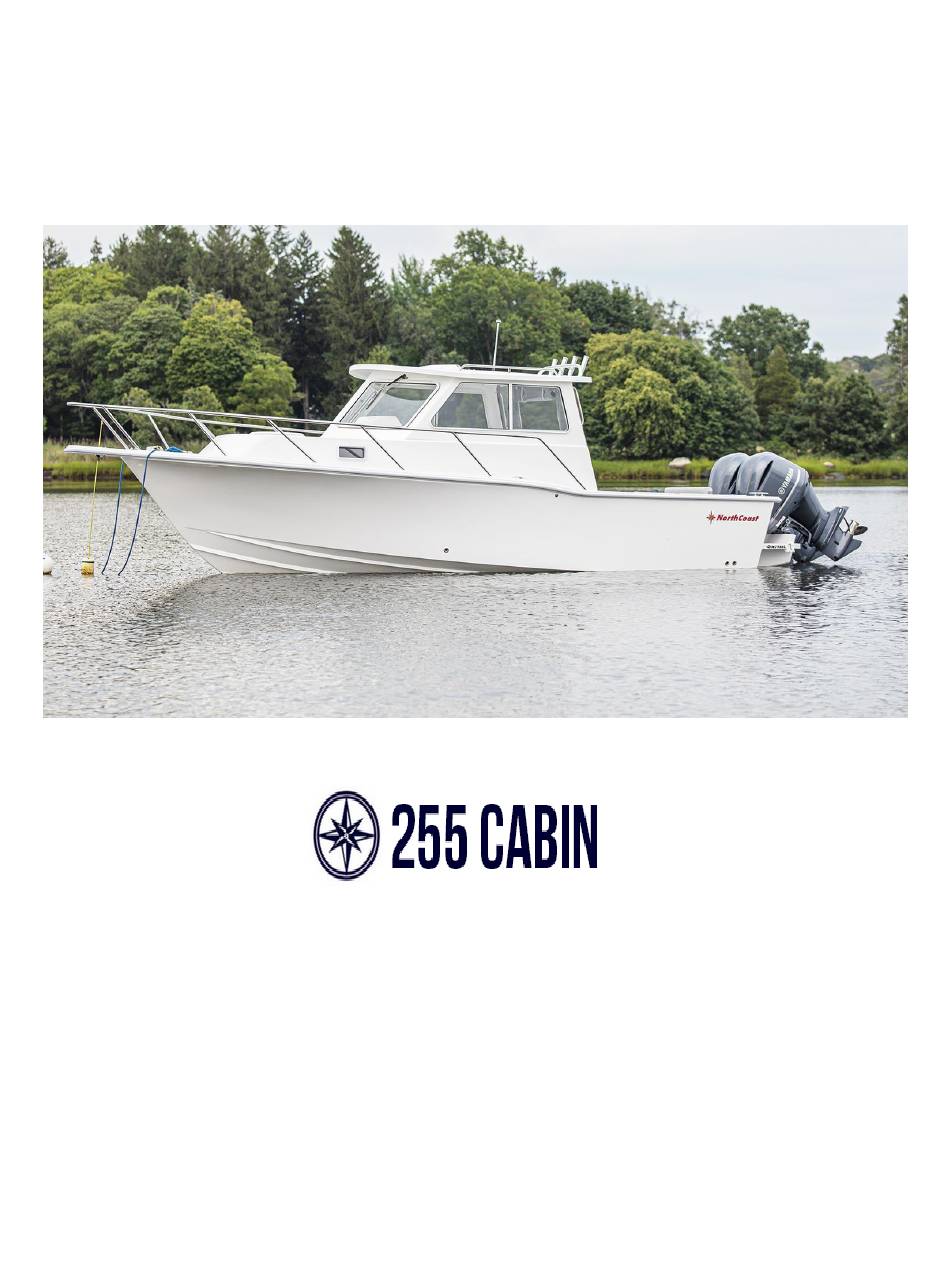

Owner's Manual
General Specifications
L.O.A: 31'-2"
Beam (Max): 9'-5"
Draft (Hull): 1'- 7"
Dead rise (Transom): 22 degrees
Dry Weight: 5404 lbs.
Power (max) 500 HP
Fuel: 159 gallon
Better Design, Superior Construction
Date: 2/4/20

Advertisement

Table of Contents
loading

Related Manuals for C&C NorthCoast 255 Hard Top

Summary of Contents for C&C NorthCoast 255 Hard Top

  • Page 1 NorthCoast 255 Hard Top By C & C Marine, Inc Owner’s Manual General Specifications L.O.A: 31’-2” Beam (Max): 9’-5” Draft (Hull): 1’- 7” Dead rise (Transom): 22 degrees Dry Weight: 5404 lbs. Power (max) 500 HP Fuel: 159 gallon Better Design, Superior Construction...

  • Page 2: Table Of Contents

    Table of Contents 1) INTRODUCTION Page 3 Dealer & Owner Responsibilities 2) SAFETY Page 4 US Coast Guard Equipment Rules of the Road 3) ELECTRICAL Page 5 Electrical Schematic 4) PLUMBING Page 12 Bilge Pump Plumbing Schematic Baitwell Operation 5) CONTROLS Page 24 Steering Shift &...

  • Page 3: Introduction

    This manual and the accompanying equipment documentation are intended to provide you with information necessary for the proper operation of the NorthCoast 255 Hard Top. Take the time to review all literature. Get to know your boat. This manual is not a safe boating guide.

  • Page 4: Safety

    SAFETY Your NorthCoast 255 Hard Top has been designed and constructed with safety in mind. As mentioned, the hull form provides the best sea-keeping ability for all around recreational use. However, the safety of you and your passengers rests solely with the owner. The U. S. Coast Guard (USCG) is the governing authority for U. S. waters.

  • Page 5: Electrical

    ELECTRICAL Electrical System A direct current electrical system is provided. The system is comprised of one Group 24 starting battery, rated at 800CCA. This is located in the battery box under the seat. The boat is supplied with a battery selector switch located at the helm on the starboard side outboard.
  • Page 9 ELECTRICAL SYSTEMS 12 VOLT DC SYSTEM • PANEL DESCRIPTION The DC main electric panel distributes the ship's power from the house batteries and protects each electrical component and associated ship's wiring from overcurrent situations. One battery switch is used to select which battery will supply power to the panel's main DC circuit breaker.
  • Page 10 ▪ NAVIGATION LIGHTS This circuit breaker activates the running lights switch at the helm station for the red and green side lights, the stern light in the transom, and the masthead or steaming light. These lights provide the proper lighting required by law for operation at night under power. ▪...
  • Page 11 • LIGHTNING PROTECTION In spite of the bonding system, there can be no assurances that personnel or the boat will not suffer damage or injury if the vessel is hit by lightning. The following, adapted from the ABYC safety standards, are suggestions only, and in no way guarantee safety. If possible, remain inside the boat and close all hatches during a lightning storm.

  • Page 12: Plumbing

    PLUMBING Bilge Pump The bilge pump is located in the bilge pump compartment aft at the transom. The bilge discharge is located starboard at the sheer. Saltwater Washdown The saltwater washdown spigot is located on the transom, port side. The saltwater is fed from a pump, located on the transom, port side.
  • Page 13 ITEM NORTHCOAST PART # DESCRIPTION NC # QTY. NC255HT Bow Rail OMF - NC255HT BOW RAIL 3045 Grab Rail, 1" X 48", Double Loop, S.S. OCEAN MARINE FAB 3173 WHITE WATER MARINE - Grab Rail, 1" X 18", Single Loop, S.S., 5/16" Nut 3171.5 95002 Cleat, 8", Flush, S.S.
  • Page 15 NorthCoast 255HT Gray Water System NORTH COAST ITEM PART# DESCRIPTION QTY. 48315K27 TEE 1" x 1" x 3/4" 2683 1 " THRU HULL STRAIGHT 2543 SINK DRAIN W/ STOPPER GULLEY IC GRAY WATER SG8284 PUMP 903001 3/4" VENTED LOOP 2637 3/4"...
  • Page 18 NORTHCOAST 255HT COLD WATER ITEM NORTH COAST PART # DESCRIPTION QTY. 2326 WX1502B TEE 15mm WHALE F600 HOT WATER HEATER (WHALE) HUI830291 WATER FILL 1 1/2" TOILET RARITAN 2631.9 WATER VENT HOSE 1/2" 85-1666WH WATER TANK 20 GALLON TODD 2322 FW1215 FRESH WATER PUMP 2328 WX1503B 15MM 90 DEGREE...
  • Page 19 NORTHCOAST 255HT HOT WATER ITEM NORTH COAST PART# DESCRIPTION QTY. 2326 WX1502B TEE 15mm WHALE F600 HOT WATER HEATER (WHALE) HUI830291 WATER FILL 1 1/2" TOILET RARITAN 2631.9 WATER VENT HOSE 1/2" 85-1666WH WATER TANK 20 GALLON TODD 2322 FW1215 FRESH WATER PUMP 2328 WX1503B 15MM 90 DEGREE WX1504B...
  • Page 22 NorthCoast 255HT Raw Water System NORTH COAST ITEM PART# DESCRIPTION QTY. 2550 SPIGOT 3/4"FPT x 3/4" HOSE ELBOW 90 5372K343 2319 SW WASHDOWN PUMP SURFLOW 2589 3/4"FPT x 3/4" HOSE STRAIGHT 2606 TEE 3/4" HOSE 2612 AERATOR 2637 TEE 3/4" 2641 3/4"...

  • Page 24: Controls

    CONTROLS Steering The boat is fitted with the standard Teleflex helm pump installed. This is a hydraulic steering system consisting of the helm pump and the steering ram when the engine is factory installed. The helm pump is secured to the console and the steering wheel operates the pump directly.

  • Page 25: Fuel System

    FUEL SYSTEM Fuel System Operation This system has been designed to meet the EPA regulations using certified components to limit the fuel vapor emissions. Your fuel system provides the following benefits: • Automotive style refueling, automatic nozzle shut-off. This system sends a signal to the pump nozzle to shut off before there is any spit-back or well-back through the fill opening.
  • Page 26 CARBON CANISTER SYSTEM DECK FILL 99DFCC Series INSTALLATION INSTRUCTIONS 11/04 69484 Rev. C SAVE THESE INSTRUCTIONS CAUTION: The vessel manufacturer must comply with the requirements of CFR 40 1060.202. Any questions can be directed to www.attwoodmarine.com Failure to follow these instructions may result in accidental fuel system over-pressurization.
  • Page 27 with respect to evaporative emissions in the following manner when installing certified components; Excerpt from CFR 40 1060.135 (a) You must affix a permanent and legible label identifying each engine or piece of equipment before introducing it into U.S. commerce. The label must be—...
  • Page 28 Attwood warrants that any Attwood Carbon Canister System Deck Fills are free from defects in materials and workmanship and are designed, built, and equipped to conform at the time of sale to Boat Company with the 40CFR.1060 requirements. For two (2) years from the date of the vessel’s first retail sale, Attwood will, at its sole option, repair or replace any components that fail due to a defect in material or workmanship.

  • Page 30: Vessel Operation

    VESSEL OPERATION Weight Always operate the vessel in a safe manner. The performance of the boat is affected by the amount of weight carried. Weight is comprised of many things including; fuel, people, gear, bait, fish and so forth. The greater the payload (variable weight) the slower the boat will go for a given RPM.

  • Page 31: Trim

    Trim Tabs The NorthCoast 255 Hard Top is designed to run at the proper fore and aft angle by virtue of the bottom shape. The trim tabs are very effective in modifying the trim angle. Some helpful hints for using the trim tabs are: •...

  • Page 32: Starting

    VESSEL OPERATION (continued) Starting Refer to the included engine manual for detailed operation of the engine. A few top-level procedures should be observed as follows: Before Starting • Make sure the engine is lowered. • Make sure there is sufficient clearance to the bottom. •...

  • Page 33: Maintenance

    MAINTENANCE The materials and workmanship of your NorthCoast 255 Hard Top will insure many years of operation and enjoyment. However, there are numerous steps you can take to keep your boat in top condition. Failure to take certain of these steps may result in shortened life span of certain equipment and may in certain cases, void the warranty.

  • Page 34: Other Exterior Components

    MAINTENANCE (continued) Inevitably you will get scratches on the gelcoat surfaces. • Water sand minor scratches with #600 paper, then buff with polishing compound or equivalent. Scratches that penetrate to the fiberglass substrate should be dealt with immediately. This is particularly important on scratches below the waterline.
  • Page 35 MAINTENANCE (continued) Stainless Steel and Aluminum All metals used on your NorthCoast are selected for their resistance to corrosion. However, none are corrosion proof. What appears to be “bare aluminum” is actually anodized. When welded, the anodizing breaks down due to heat. Make sure to keep the weld joints waxed for best protection.

  • Page 36: Winterization, Storage And Commissioning

    MAINTENANCE (continued) Corrosion When operating in saltwater for extended periods, check the transom mounted grounding anode for significant de- gradation. Replace at 50% level. Check the sacrificial anodes in the engine. Check all metal thru-hull fittings when hauled out. Ensure that the engine is tilted full up when the boat is left moored or docked. Significant/frequent signs of pitting or other metal degradation may be indicative of a corrosion problem either with your vessel directly or due to other stray currents present in the marina or the marina electrical system.

  • Page 37: Construction Details

    CONSTRUCTION DETAILS • HULL AND DECK MATERIALS • TECHNOLOGY NorthCoast uses some of the most advanced technology in the marine industry in the design and construction of all NorthCoast. Only top quality, top performance materials which have been thoroughly tested are used. •...
  • Page 38 • CORE MATERIAL Many different cores are available for use in sandwich construction because it has superior physical properties over all other cores and is resistance to water penetration and savings in weight. • QUALITY CONTROL Great care is taken in controlling the quality during the production of laminated parts. The following steps are necessary to guarantee that the physical properties used in the design is the same as those which are built into the part.

  • Page 39: Commissioning Checklist

    COMMISSIONING CHECKLIST Page 1 of 2 Preliminary Check hull carefully for damage in transit Check propeller, nuts, cotter pin, and zincs Check loose gear on boat Pre-Launch Read Owner's Handbook and OEM manuals Cover cushions or remove them from boat in order to protect them during commissioning Install transducers Check battery charge with battery test switch on the electrical panel Close seacocks...
  • Page 40 COMMISSIONING CHECKLIST Page 2 of 2 Engine Start Run engine under load Check operation of all pumps--electrical & manual Check operation of head--no leak. Check optional Y valve for correct discharge Check all AC/DC options for correct operation Acquire and secure ground tackle Read engine owner's manual Check alignment and hook up couplings Ignition...

  • Page 41: Standard & Optional Equipment

    STANDARD EQUIPMENT 255 • 12 YEAR STRUCTURAL HULL WARRANTY • “NO WOOD” CONSTRUCTION • WHITE HULL W/ BOOT STRIPE • CORED DECK AND MOLDED HULL LINER W/ TWO TONE MOLDED NON-SKID (CHOICE OF GRAY OR TAN) • FOAM FILLED COMPOSITE GRID STRINGER SYSTEM •...
  • Page 42 • (2) FOLDING CUP HOLDERS • LED NAVIGATION LIGHTS, COURTESY LIGHTS & DOME LIGHTS • RITCHIE COMPASS @ HELM • DC PANELS AT HELM • LENCO TRIM TABS W/ LED POSITION INDICATORS • SEAT CUSHIONS P&S- AFT OF SEATS • PHONE, WALLET, KEY BINS OUTBOARD OF HELM SEATS, P&S CUSTOM AFT CANVAS ENCLOSURE W/ROLL UP DOOR CABIN...
  • Page 43 • 26 GAL. TRANSOM BLUE LIVE WELL W/ LIGHT & CLEAR LID • TRANSOM COMPARTMENT WITH KNIFE HOLDER/CUTTING BOARD • (4) CUSTOM STAINLESS ROD HOLDERS • (2) CUP HOLDERS • (2) 139 QUART MACERATED FISH BOXES IN DECK • UNDER GUNNEL ROD HOLDER STORAGE P&S (6) •...
  • Page 44 ADDITIONAL FACTORY OPTIONS • Hull color • Rocket launchers on hard top • Rocket launchers on transom • Outriggers Rupp Top Gun • Additional rod holders (Pair) • Electric head system • Shore power package includes: AC/DC panel at helm w/ UBS & DC plugs 110V GFI outlets at galley &...

  • Page 45: Specifications & Information

    • *Requires Shore Power option Specifications & General Information Dealer: Vessel Registration Number: HIN: Hull Color: Boot Top Color: Deck Color: Non-Skid Color: Warranty Registration Date: Radio Call Numbers: Engine One S/N: Propeller Size: Blds Trailer Make: Trailer S/N: Insurance Company: Policy #: Insurance Agency: Phone:...
  • Page 46 NORTHCOAST BOATS WARRANTY POLICY C & C Marine Inc. Manufacturer of NorthCoast Boats™ 75 Ballou Blvd. Bristol, RI, 02809 Tel: 401-254-4342 Fax: 401-254-8978 NORTHCOAST BOATS™ LIMITED WARRANTY- RECREATIONAL BOATS 1. The “Federal Boat Safety Act of 1971" requires all boat manufacturers to maintain a record of all first retail purchasers and their current addresses for the purpose of notification in case of defective parts or equipment or in case of noncompliance with standards or regulations set forth by this act.
  • Page 47 I.) This warranty does not cover tears, cracking, fading, discoloration, or mildewing of curtains, cushions, tops, headliners, or other fabric or upholstered items. J.) This warranty does not cover components not manufactured by C & C Marine, Inc., whether or not warranted by the other manufacturer, even if installed by C &...

  • Page 48: Warranty Registration

    factory in Bristol, Rhode Island., the authorized dealer who originally sold the boat, or at a repair facility that we choose. Boats or parts will be transported to the selected repair facility at the owner’s expense. Haul out fees are the responsibility of the owner. Reimbursement to repair facilities under the warranty will be based on a rate and schedule established by C &...
  • Page 49 NorthCoast Boats Warranty Registration Form IN ORDER TO REGISTER WARRANTY, THIS FORM MUST BE COMPLETED AND SENT WITHIN 10 DAYS OF DELIVERY TO: C & C MARINE, INC. 75 BALLOU BLVD. BRISTOL, RI 02809 ATTN: CUSTOMER SERVICE- WARRANTY DEPT. Buyer’ Name: ________________________________ Phone #: __________________ Buyer’s Address: ________________________________________________________ ________________________________________________________ Year &...

  • Page 50: Warranty Transfer

    NorthCoast Boats Warranty Transfer Form IN ORDER TO VALIDATE TRANSFER OF WARRANTY, THIS FORM MUST BE COMPLETED AND SENT WITHIN 15 DAYS OF SALE TO: C & C MARINE, INC. 75 BALLOU BLVD. BRISTOL, RI 02809 ATTN: CUSTOMER SERVICE-WARRANTY DEPT. New Buyer: ___________________________________ Phone #: _________________ New Buyer’s Address: ____________________________________________________ ____________________________________________________...
  • Page 51 Amount of chlorine compound required for 100-ppm solution. Gallons Chlorinated High Test Calcium Liquid Sodium Lime 25% Hypochlorite 70% Hypochlorite 1% Solution (ounces) (ounces) (quarts) Reprinted from ABYC Appendix H-23. RECOMMENDED TOOLS FOR ONBOARD MAINTENANCE • Screw Drivers a. Straight - stubby - offset - jewelers set b.
  • Page 52 HOW TO LOAD YOUR BOAT ON THE TRAILER 1. Drop And Go Drop the driver of the tow vehicle off at the end of the dock to go retrieve the rig. Idle out away from the ramp. Or, if you won't be impeding others, pull alongside the far end of the dock.
