SkyLink KN-318 User Manual

User Manual
Garage Door Keypad
Model: KN-318

4. Initial Setup for Multiple Doors

4. Initial Setup for Multiple Doors
To enable the multiple-door mode:
1. Enter the factory default pin code plus * [PIN *]
a. Example, 0000*.
2. Press [9] then [#] separately and you will hear 2 beeps to
confirm you have enabled the Multiple-Door Operating
Mode.
3. Enter 0000 and * on the keypad.
4. Enter the new pin code from 2 to 8 digits plus *, twice.
a. Example, 1234* and again 1234*.
To program the keypad to EQ Garage Door Opener or
Smart Button™ Receiver, follow section 6.
To program the keypad to IQ Garage Door Opener,
follow section 8.

5. To Disable the Multiple-Door mode

5. To Disable the Multiple-Door mode
1. Enter the current pin code plus * [PIN *]
a. Example, 5678*.
2. Press [0] then [#], you will hear 2 beeps to confirm you
have disabled the Multiple-Door Operating Mode.

1. Safety Information

1. Safety Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WARNING:
Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's
authority to operate the equipment.

2. Package Contents

2. Package Contents

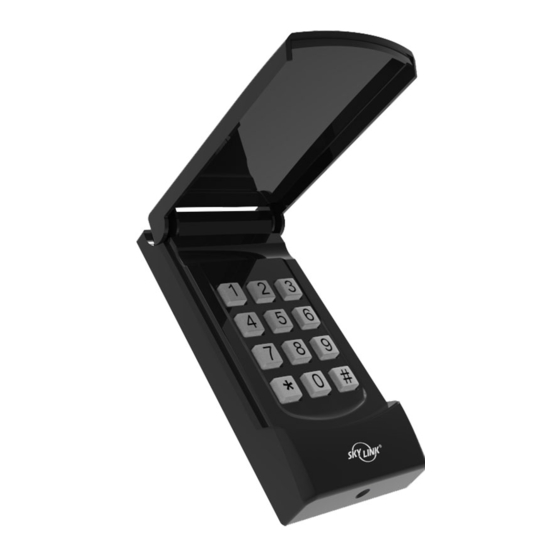

Garage Door Keypad
(KN-318)
6. Program Keypad to EQ Garage Door Opener or 6. Program Keypad to EQ Garage Door Opener or
Smart Button™ Receiver. Smart Button™ Receiver.
1. Press the "Learn" button on the opener, the yellow LED
will flash for 30 seconds.
2. Within 30 seconds, activate the keypad by entering:
A) Pin code plus # [PIN #] for single door operation.
Ex. [1234] [#]
B) Pin code plus [#] plus [Door No] for multiple
door operation. Ex. [1234] [#] [1]
Follow the same steps for programming additional
operators to the keypad for multiple doors.
Example, Door 2 pin: 1234#2, Door 3 pin: 1234#3 and Example, Door 2 pin: 1234#2, Door 3 pin: 1234#3 and
Door 4 pin: 1234#4. Door 4 pin: 1234#4.

7. Operation

7. Operation
Single Door Operation:
1. Press the pin code plus [#].
Example: 1 2 3 4 #
Multiple Doors Operation:
1. Press the pin code plus [#] plus [Door No.]
Example,Door 1: 1 2 3 4 # 1
Door 2: 1 2 3 4 # 2
Door 3: 1 2 3 4 # 3
Door 4: 1 2 3 4 # 4

3. Initial Setup for Single Door

3. Initial Setup for Single Door
To change the factory default pin code [PIN*]:
1. Enter 0000 and * on the keypad.
2. Enter the new pin code from 2 to 8 digits plus *, twice.
a. Example, 1234* and again 1234*.
b. The keypad will beep 3x if the pin codes are the same.
If the new pin code is not typed exactly the same, then
the keypad will emit a long error beep.
In this case you will have to restart from Step 1.
To program the keypad to EQ Garage Door Opener or
Smart Button™ Receiver, follow section 6.
To program the keypad to IQ Garage Door Opener,
follow section 8.
Mounting
Accessories
8. Program Keypad to IQ Garage Door Opener 8. Program Keypad to IQ Garage Door Opener
1. Press and hold the PROG button on the LCD Wall
Console for 10 seconds until the "PROG" icon appears
on the display.
2. Press the PROG button again until the remote icon
appears on the display.
3. Activate the keypad transmitter:
a. Example,
If a remote is programmed, the remote icon will stay on.
If additional remote needs to be programmed, press the
up button , the remote icon will flash again. You may
program additional remotes.
[1234] [#] for single door operation
OR
[1234] [#] [1] for multiple door operation
Remote Icon
