Sensorsoft ETHERPAK-4A Quick Start Manual

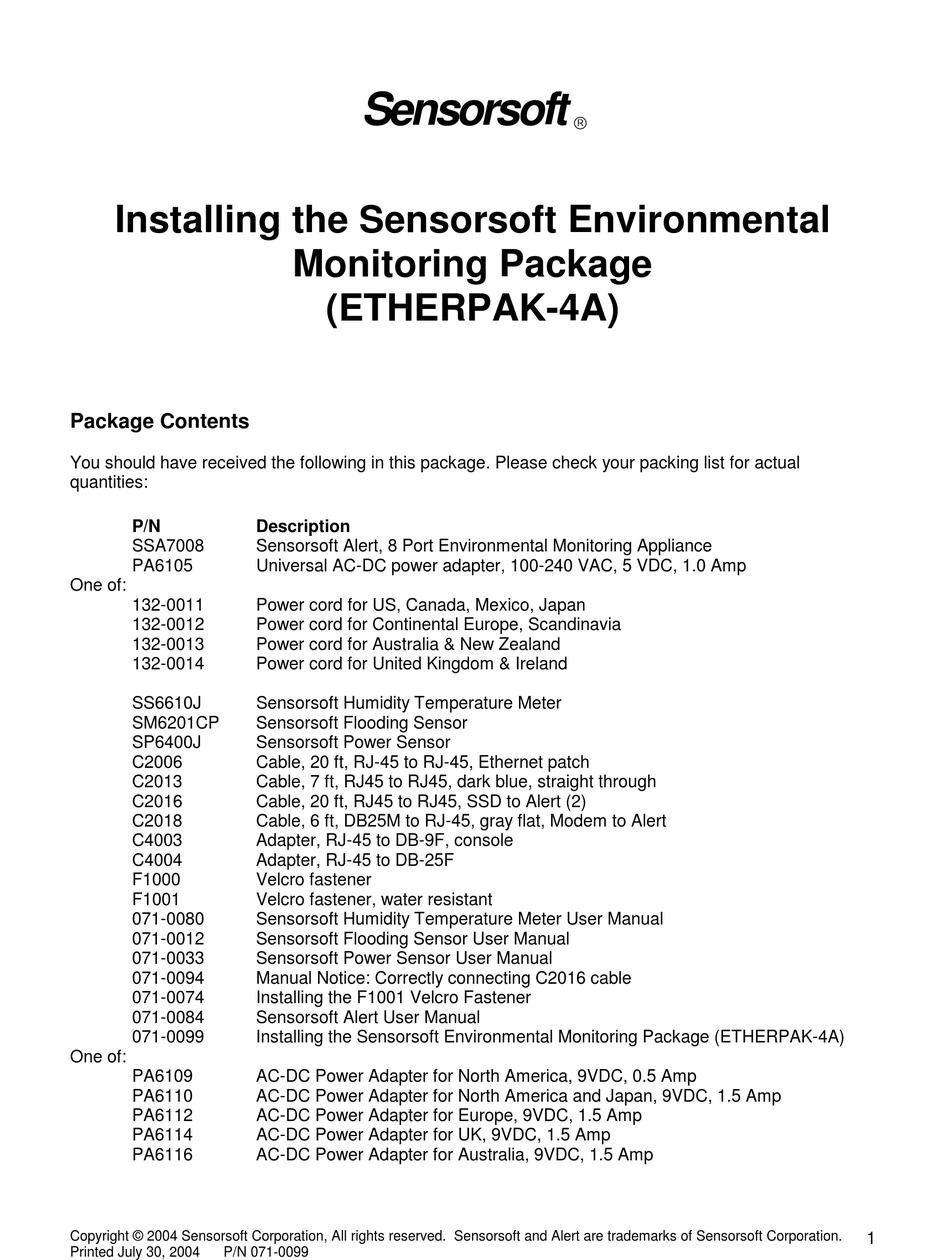

Installing the Sensorsoft Environmental

Package Contents

You should have received the following in this package. Please check your packing list for actual
quantities:
P/N
SSA7008
PA6105
One of:
132-0011
132-0012
132-0013
132-0014
SS6610J
SM6201CP
SP6400J
C2006
C2013
C2016
C2018
C4003
C4004
F1000
F1001
071-0080
071-0012
071-0033
071-0094
071-0074
071-0084
071-0099
One of:
PA6109
PA6110
PA6112
PA6114
PA6116
Copyright © 2004 Sensorsoft Corporation, All rights reserved. Sensorsoft and Alert are trademarks of Sensorsoft Corporation.
Printed July 30, 2004 P/N 071-0099
Sensorsoft
Monitoring Package
(ETHERPAK-4A)
Description
Sensorsoft Alert, 8 Port Environmental Monitoring Appliance
Universal AC-DC power adapter, 100-240 VAC, 5 VDC, 1.0 Amp
Power cord for US, Canada, Mexico, Japan
Power cord for Continental Europe, Scandinavia
Power cord for Australia & New Zealand
Power cord for United Kingdom & Ireland
Sensorsoft Humidity Temperature Meter
Sensorsoft Flooding Sensor
Sensorsoft Power Sensor
Cable, 20 ft, RJ-45 to RJ-45, Ethernet patch
Cable, 7 ft, RJ45 to RJ45, dark blue, straight through
Cable, 20 ft, RJ45 to RJ45, SSD to Alert (2)
Cable, 6 ft, DB25M to RJ-45, gray flat, Modem to Alert
Adapter, RJ-45 to DB-9F, console
Adapter, RJ-45 to DB-25F
Velcro fastener
Velcro fastener, water resistant
Sensorsoft Humidity Temperature Meter User Manual
Sensorsoft Flooding Sensor User Manual
Sensorsoft Power Sensor User Manual
Manual Notice: Correctly connecting C2016 cable
Installing the F1001 Velcro Fastener
Sensorsoft Alert User Manual
Installing the Sensorsoft Environmental Monitoring Package (ETHERPAK-4A)
AC-DC Power Adapter for North America, 9VDC, 0.5 Amp
AC-DC Power Adapter for North America and Japan, 9VDC, 1.5 Amp
AC-DC Power Adapter for Europe, 9VDC, 1.5 Amp
AC-DC Power Adapter for UK, 9VDC, 1.5 Amp
AC-DC Power Adapter for Australia, 9VDC, 1.5 Amp
â
1
