Sensorsoft
Temperature and Humidity
Meter User's Manual
Models SS6610J and SS6610C
Manual P/N 071-0080 Rev 7
May 21, 2019
Copyright © 2003-2019 Sensorsoft Corporation, All rights reserved.
Sensorsoft is a registered trademark of Sensorsoft Corporation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS6610J and is the answer not in the manual?

Questions and answers

Related Manuals for Sensorsoft SS6610J

Summary of Contents for Sensorsoft SS6610J

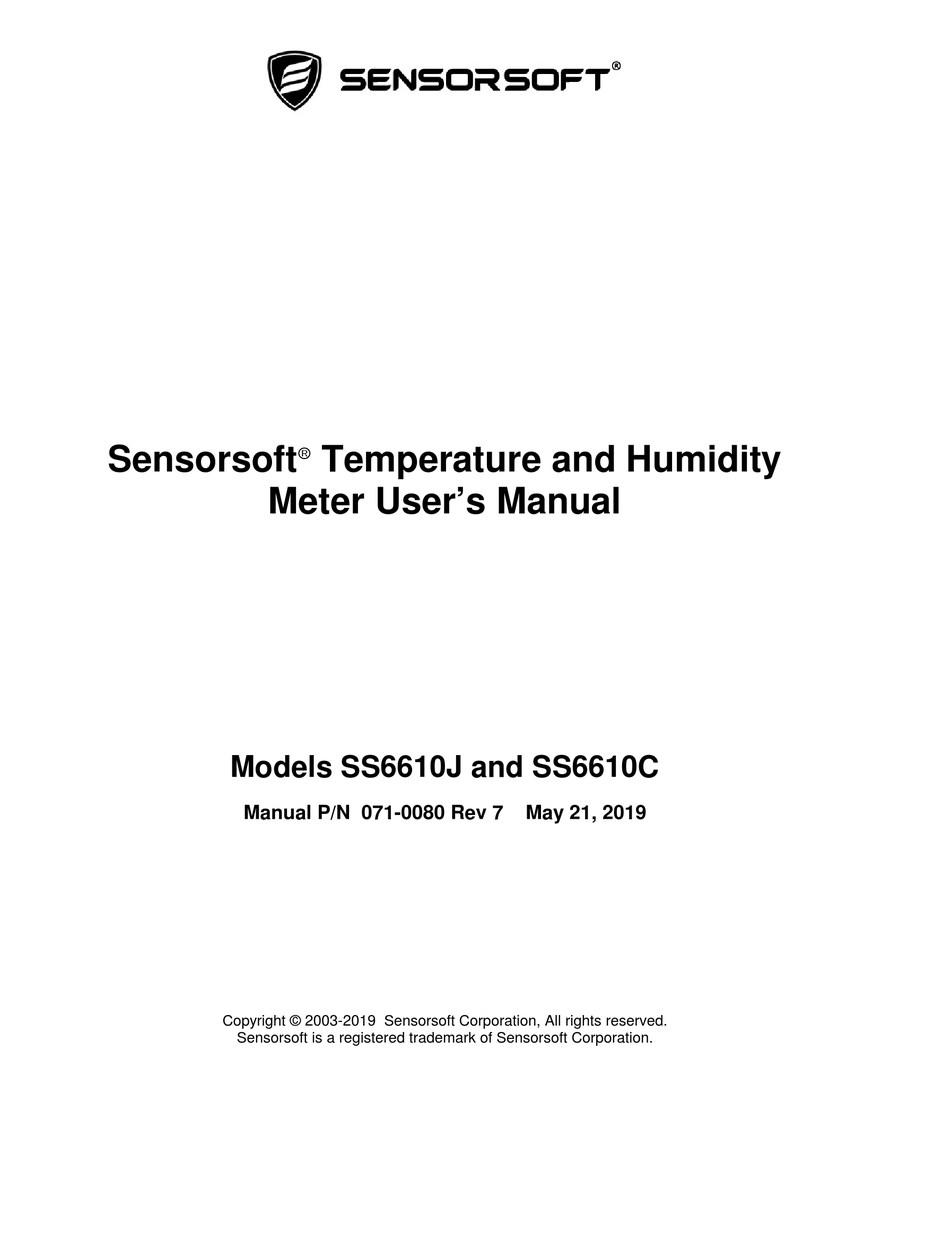

  • Page 1  Sensorsoft Temperature and Humidity Meter User’s Manual Models SS6610J and SS6610C Manual P/N 071-0080 Rev 7 May 21, 2019 Copyright © 2003-2019 Sensorsoft Corporation, All rights reserved. Sensorsoft is a registered trademark of Sensorsoft Corporation.

  • Page 3: Table Of Contents

    Appropriate measurement instruments to making comparisons ..........10 Correct method for making comparisons................... 11 What to do if you believe the Sensorsoft device is reading incorrectly ........11 Making extension cables for C-Suffix Sensorsoft Devices............12 Making communication cables for J-Suffix Sensorsoft Devices............ 14 Writing custom software programs for the Sensorsoft Temperature and Humidity Meter....

  • Page 4: About This Manual

    This document contains information about using the Sensorsoft Temperature and Humidity Meter. When other sections of this manual are referenced, italics are used. The Sensorsoft Temperature and Humidity Meter may be referred to as a device, Sensorsoft device or SSD (SensorSoft Device) throughout the manual. Glossary of Acronyms RWME –...

  • Page 5: Overview

    Overview The SS6610J and SS6610C Sensorsoft Temperature and Humidity Meters are RS232 compatible serial devices based on the Sensorsoft Device Protocol (SSDP). The SS6610J and SS6610C have built-in temperature and humidity sensors and are intended for applications requiring measurement of temperature and relative humidity in heated or air conditioned rooms and warehouses.

  • Page 6: Installing The Sensorsoft Temperature And Humidity Meter

    If the housing needs to be cleaned, use a damp cloth or vacuum cleaner. Use a Velcro fastener (P/N F1000 or F1001) to affix the Sensorsoft device to a stable surface. Connecting the Sensorsoft Temperature and Humidity Meter to a...
  • Page 7 Note the physical port number where you plugged the cable into your computer or device/console server. If the Sensorsoft device is being plugged into a Windows based computer that has only one COM port, the port number is usually COM1. If you are using a USB to serial adapter, you need to refer to the operating system’s serial port (COM) listing.

  • Page 8: Ss6610J (V6.5) Sensorsoft Temperature And Humidity Meter Specifications

    Maximum communications cable length: 305 m (1000 ft.) using recommended cable type. Low capacitance shielded cable or UTP is recommended. Firmware Version: 6.5 Communications Protocol: Sensorsoft Device Protocol (SSDP) Version 2.0 and Simple Text Commands Error control: 16 bit CRC (cyclic redundancy checking) for detection of communication errors...

  • Page 9: Ss6610C (V6.5) Sensorsoft Temperature And Humidity Meter Specifications

    Maximum extension cable length: 305 m (1000 ft.) using recommended cable type. Low capacitance shielded cable or UTP is recommended. Firmware Version: 6.5 Communications Protocol: Sensorsoft Device Protocol (SSDP) Version 2.0 and Simple Text Commands Error control: 16 bit CRC (cyclic redundancy checking) for detection of communication errors...

  • Page 10: Resolution, Accuracy And Calibration

    Measurement device has its active sensing element more than one inch (2.5 cm) away from the Sensorsoft device’s sensing element  Measurement device has lower accuracy specifications as compared to the Sensorsoft device  Measurement device has unknown accuracy specifications ...

  • Page 11: Correct Method For Making Comparisons

    What to do if you believe the Sensorsoft device is reading incorrectly If, after following the above method, you find the Sensorsoft device isn’t reading within its stated specifications, you can obtain an RMA to return it to our factory for repair. See Returns at the end of this manual.

  • Page 12: Making Extension Cables For C-Suffix Sensorsoft Devices

    NOTE - A C-suffix Sensorsoft device has a built-in cable. This includes model SS6610C. Figure 1: Illustrates a C-suffix Sensorsoft device with a built-in molded cable and DB-9F connector. IMPORTANT - A properly made extension cable will allow your Sensorsoft device to operate reliably over long cable lengths up to...
  • Page 13 Figure 2: C2100 cable is used to extend the cable length for model SS6610C. The DB-9F end of the cable plugs into a DB-9M serial port. The DB-9M end of the cable plugs into the DB-9F connector on the SSD. PIN-OUT OF THE DB-9F CONNECTOR ON MODEL SS6610C Note: Only positions used in Sensorsoft device application are shown Position Function...

  • Page 14: Making Communication Cables For J-Suffix Sensorsoft Devices

    305 m (1000 ft) using SSDP-compliant software. You may connect the Sensorsoft device to the port with as little as three wires (RX,TX and GND), using inexpensive unshielded telephone wire. However, the host may need to set the number of retries high in order to overcome the effect of occasional noise/interference and would also require the use of an external power supply (PA6106 or PA6206) at the Sensorsoft device.
  • Page 15 The Sensorsoft device modular-jack (RJ-45) connector uses the same UTP wire map as 10- BASE-T. It is therefore possible to use this type of cabling system for Sensorsoft devices. PIN-OUT OF THE MODULAR 8 POSITION JACK/PLUG ON A SENSORSOFT DEVICE Note: Terminal No.
  • Page 16 Sensorsoft Temperature and Humidity Meter User’s Manual Figure 4: The C2000 cable is used to connect a J-suffix Sensorsoft device to most computers or devices that have a DB-9M serial port. The DB-9F end of the cable plugs into a DB-9M serial port. The RJ-45 end of cable plugs into the SSD.

  • Page 17: Writing Custom Software Programs For The Sensorsoft Temperature And Humidity Meter

    Sensorsoft Device Protocol (SSDP) for Advanced Programmers This software method is the most advanced way of supporting Sensorsoft devices. It has several advantages over the Simple Text Commands Interface discussed above. These include:  CRC error detection for use over long serial cables (1000 ft) ...
  • Page 18 NULL bytes In order to make use of the port-powered feature of the Sensorsoft device, you must enable serial port lines DTR and RTS when the port is opened. A delay of 1-2 seconds is required after opening the serial port before any commands are sent to the Sensorsoft device.
  • Page 19 Sensorsoft Temperature and Humidity Meter User’s Manual A two byte (16 bit) Cyclic Redundancy Check that is calculated on the entire packet from the CMD byte to the last ARGUMENT byte or ADDRESS byte. In the examples below, the last two bytes in each command string are CRC bytes that were pre-calculated.
  • Page 20 A two byte (16 bit) Cyclic Redundancy Check. This placeholder is filled with CRC bytes calculated by the Sensorsoft device on the entire packet from the RESPONSE byte to the last DATA-byte. These bytes allow the host to verify the integrity of the response packet. You may choose to use or ignore these bytes depending on your programming skill or application.
  • Page 21 A “logic one” condition on any of these bits indicates the condition is set or active. Otherwise, they are reset to “logic zero”. It’s a good practice for the host to check the status of the Sensorsoft device regularly in case a bit status changes.
  • Page 22 Standard (single precision) and has a useable resolution of 0.1 degree Celsius. Commands that query register or variable <04h> in the Sensorsoft Temperature or Humidity Meter will receive a four byte response in the DATA-byte(s) placeholder. Decoding these IEEE 754 Floating-Point...
  • Page 23 Recent Sensorsoft humidity measuring devices can output humidity readings in two different formats. The first format is common to all Sensorsoft humidity measuring devices and is the easiest for programmers to support. It provides a resolution of 1 % RH. Commands that query register or variable <01h>...
  • Page 24 Sensorsoft Temperature and Humidity Meter User’s Manual Reading the SSDP ID Record Every Sensorsoft device (SSD) accepts an identification (ID) command in order to uniquely identify the type of SSD currently connected. The model number and description can be extracted from the SSD’s ID response, allowing application software to determine the specific model of the SSD and to configure the software appropriately.
  • Page 25 Sensorsoft Temperature and Humidity Meter User’s Manual Sample ID response packet from a SS6610J Sensorsoft Temperature and Humidity Meter Byte Contents <90h> <53h> <00h> <01h> <00h> <00h> <05h> <03h> <07h> Sensorsoft (R) Humidity Temperature Meter <00h> Sensorsoft Corp. <00h> SS6610 <00h>...

  • Page 26: Getting Help

    30 Day Money Back Guarantee If for any reason you want to return a Sensorsoft product for a refund, you can do so within 30 days (calendar days) of your purchase. The refund does not include shipping or brokerage fees you may have incurred.
