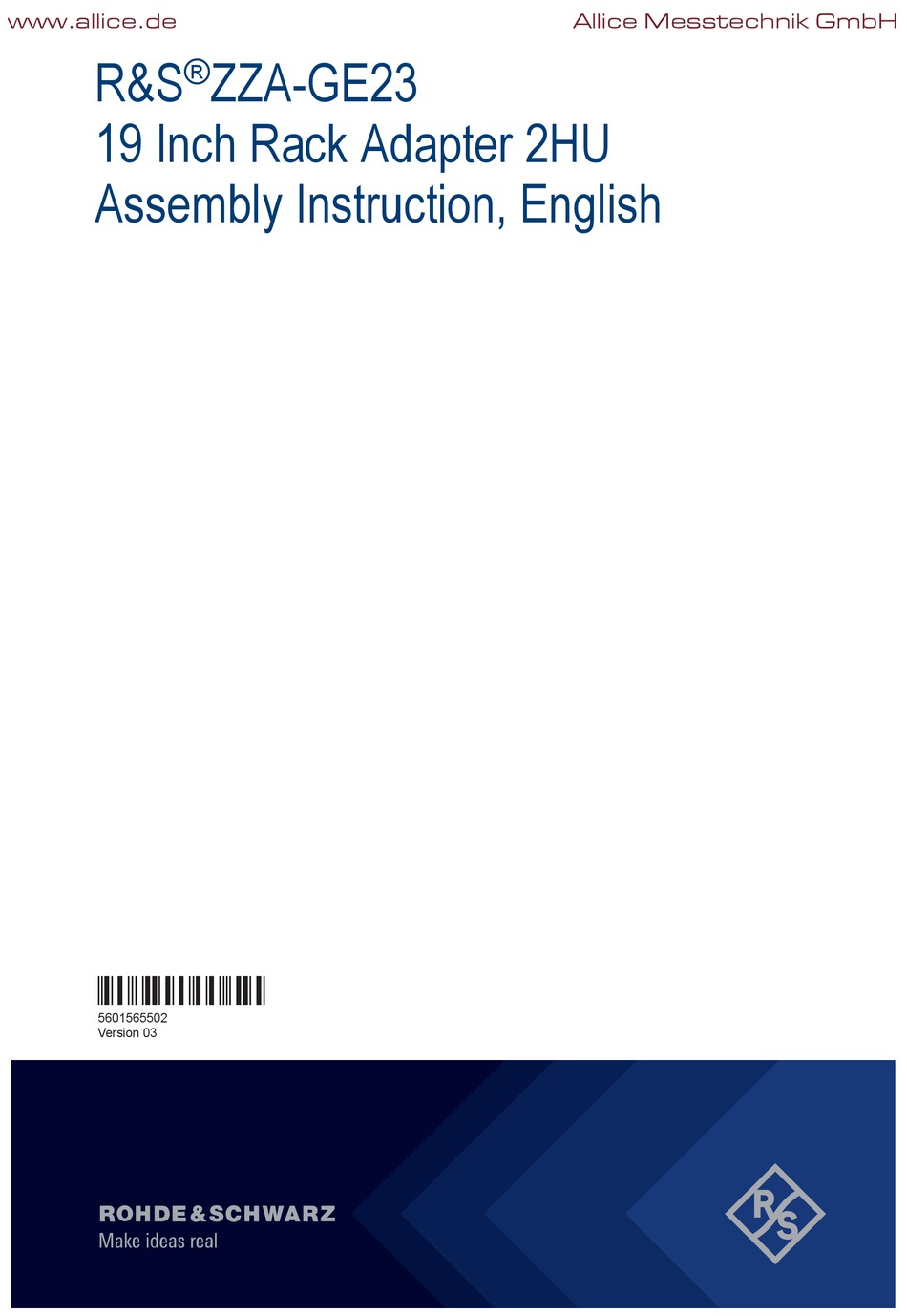

- Page 1 Allice Messtechnik GmbH ® R&S ZZA-GE23 19 Inch Rack Adapter 2HU Assembly Instruction, English (Æ1ÆÅ2) 5601565502 Version 03...
- Page 2 Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. ® 5601.5655.02 | Version 03 | R&S ZZA-GE23 ® ® Throughout this manual products from Rohde & Schwarz are indicated without the symbol, e.g. R&S ZZA-GE23 is indicated as R&S ZZA-GE23.
- Page 3 R&S ZZA-GE23 1 Description The R&S ZZA-GE23 Rack Adapter 2HU is designed for installing units of the suppor- ted instruments in 19 inch systems. The dimensions of the rackmount kits are designed according to the 19 inch standard DIN 60297-3-101.
- Page 4 Allice Messtechnik GmbH ® Prepare the Unit for Installation R&S ZZA-GE23 2 Prepare the Unit for Installation Before the instrument can be installed in the rack, the following are required: ● Remove the appliance feet on the instrument ●...
- Page 5 ® Prepare the Unit for Installation R&S ZZA-GE23 1 = R&S ZZA-GE23 subrack, upper cover 2 = R&S ZZA-GE23 subrack, rear bracket 3 = R&S ZZA-GE23 subrack, lower cover 2. Dismantle the upper and lower covers from the rear bracket.
- Page 6 ® Install the Unit in the 19 Inch Rack R&S ZZA-GE23 3 Install the Unit in the 19 Inch Rack Risk of instrument damage due to insufficient airflow in a rack If the instrument is run with insufficient airflow for a longer period, the instrument over- heats, which can disturb the operation or cause the instrument to shut down.
- Page 7 ® Install the Unit in the 19 Inch Rack R&S ZZA-GE23 6. Place the instrument with the bottom feet position facing down. 7. Mount the upper cover over the instrument and tighten the six screws on both top and side of the upper cover.
