Technaxx TX-129 User Manual

Air compressor with working light
Hide thumbs Also See for TX-129:

Advertisement

Quick Links

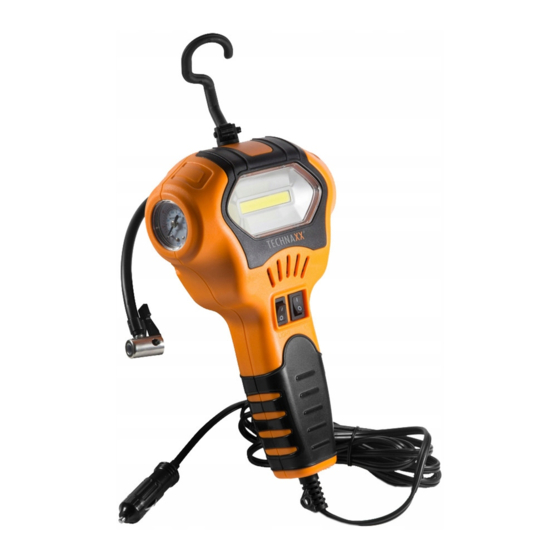

Air compressor with working light TX-129
The Declaration of Conformity for this device is under the Internet link:
www.technaxx.de/ (in bottom bar "Konformitätserklärung"). Before using the
device the first time, please read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks).
Protect yourself and others by observing all safety information. Failure
to comply with instruction could result in personal injury and/or property
Keep this user manual for future reference or product sharing carefully. Do the
same with the original accessories for this product. In case of warranty, please
contact the dealer or the store where you bought this product.
Enjoy your product. Share your experience and opinion on one of the
Features
Main function: portable air compressor to inflate tires of
bicicles/cars, soccer/beach balls, etc. usable for emergency
roadside tire inflation
Integrated 5W LED as working light
Power supply via 12V connection with cigarette lighter socket
Compressor in a sturdy housing, ideal for air pressure regulation
Compact design with power cord, air hose and adapter storage
compartment
Manometer (pressure gauge) shows the pressure in Bar and PSI
3 extra adapters for bicycle valve, safety valve and ball valve
Maximum pressure 7 bar / 100 PSI
®
Technaxx
Free Email: support@technaxx.de
damage!
well-known internet portals.
* User Manual
Warranty 2 years

Advertisement

loading

Summary of Contents for Technaxx TX-129

  • Page 1 Air compressor with working light TX-129 The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device the first time, please read the user manual carefully. Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks).
  • Page 2 Ø 2.5mm & access with a tool, not waterproof) Material Weight / Dimensions 1.21kg / (L) 35.5 x (W) 16.5 x (H) 12.1 cm Air compressor with working light TX-129, Package contents Bicycle valve, Safety valve, Ball valve, User Manual...
  • Page 3 Product & Operation Front Rear 1 360° rotatable hook Adapter storage compart- ment / Bicycle valve / 2 Manometer Safety valve / Ball valve 3 5W LED working light 4 On/Off air compressor switch 5 On/Off work light switch 7 Air hose connector Working light Plug 12V DC power cord into 12V cigarette lighter socket.
  • Page 4 Air compressor Plug 12V DC power cord into 12V cigarette lighter socket. Take the air compressor to the object you need to inflate. Remove valve cap and connect the air hose connector to the valve of the objcet to be inflated. Turn on air compressor switch.
  • Page 5 Inflation accessory: The inflation needles are located in the adapter storage compartment (6) on the backside of the device. To use the inflation accessory open the air hose connector (7) and plug in the adapter, then close the air hose connector. adapter should be tight and secure.
  • Page 6 US Warranty Thank you for your interest in the products and services of Technaxx Deutschland GmbH & Co.KG. This Limited Warranty applies to physical goods, and only for physical goods, purchased from Technaxx Deutschland GmbH &...
