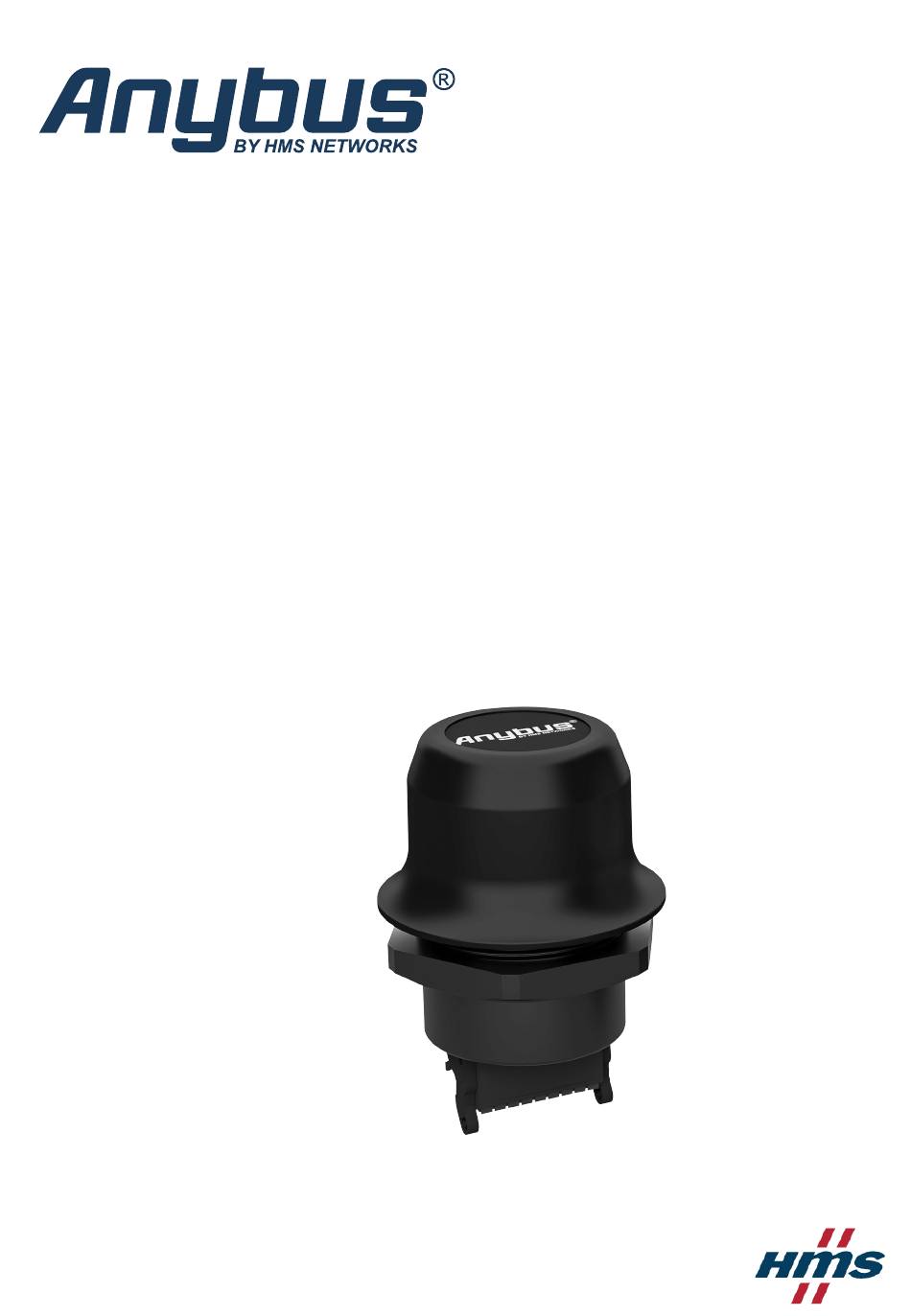

- Page 1 ENGLISH ® ™ Anybus Wireless Bolt Serial STARTUP GUIDE SP2554 Version 2.0 Publication date 2022-04-07...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: About This Document
® ™ Preface Anybus Wireless Bolt Serial 1. Preface 1.1. About This Document ® ™ This document describes how to install Anybus Wireless Bolt Serial For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. 1.2. - Page 4 Helpful advice and suggestions. 1.3. Trademarks ® ™ Anybus is a registered trademark and Wireless Bolt Serial is a trademark of HMS Networks AB. All other trademarks are the property of their respective holders. Page 2 of 28 SP2554 2.0...
-
Page 5: General Safety
® ™ Safety Anybus Wireless Bolt Serial 2. Safety 2.1. General Safety CAUTION This equipment emits RF energy in the ISM (Industrial, Scientific, Medical) band. Make sure that all medical devices used in proximity to this equipment meet appropriate susceptibility specifications for this type of RF energy. -
Page 6: Intended Use
® ™ Anybus Wireless Bolt Serial Intended Use 2.2. Intended Use The intended use of this equipment is as a communication interface and gateway. The equipment receives and transmits data on various physical levels and connection types. If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. -
Page 7: Network Environment
® ™ Preparation Anybus Wireless Bolt Serial 3. Preparation 3.1. Support and Resources For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Have the product article number available, to search for the product specific support web page. You find the product article number on the product cover. -
Page 8: Digital Input
® ™ Anybus Wireless Bolt Serial I/O-Data Cycle Time Considerations 3.5. I/O-Data Cycle Time Considerations Based on recommendations from industrial equipment suppliers, such as Rockwell and Siemens, use the following minimum I/Odata cycle times for PROFINET and EtherNet/IP networks: • Wireless link Point-to-Point with Bluetooth PANU-PANU or Wi-Fi Access Point to Station: 32 ms •... -
Page 9: Mechanical Installation
® ™ Installation Anybus Wireless Bolt Serial 4. Installation 4.1. Mechanical Installation Placement • The device is intended to be mounted on top of a machine or cabinet through an M50 (50.5mm) hole using the included sealing ring and nut. •... - Page 10 ® ™ Anybus Wireless Bolt Serial Mechanical Installation All measurements are in mm. Figure 1. Installation drawing Page 8 of 28 SP2554 2.0...
- Page 11 ® ™ Connector Anybus Wireless Bolt Serial 4.2. Connector The 18-pin connector is common for several models of the Anybus Wireless Bolt. Some pins may have a different function depending on model. Unused pins should not be connected. Figure 2. 18-Pin connector The location of the RESET button can be used as a reference for the pin numbering when the connector is attached to the Bolt Serial.
- Page 12 ® ™ Anybus Wireless Bolt Serial Connector Name Description ETN_RD- Ethernet receive - (orange) ETN_TD- Ethernet transmit - (green) ETN_TD+ Ethernet transmit + (white/green) RS485_B RS-485 B Line FE/Shield Ethernet: Functional Earth Serial and CAN: Functional Earth and Shield RS232_TXD RS-232 Transmit RS485_A/RS232_RXD RS-485 A Line / RS-232 Receive...
- Page 13 ® ™ Cabling Anybus Wireless Bolt Serial 4.3. Cabling Before You Begin NOTE When using Easy Config Modes, the Bolt Serial that is to be configured as a Client does not need to be connected to the Ethernet wires. Only power and Serial wiring are used.
- Page 14 ® ™ Anybus Wireless Bolt Serial Cabling 5. Connect the wires from the Serial device to the connector in the same way as the Ethernet wiring. 6. Connect the wires from the power supply to the connector in the same way as the Ethernet wiring.
- Page 15 ® ™ Configuration Anybus Wireless Bolt Serial 5. Configuration 5.1. Required IP Address Settings To be able to access the Bolt Serial built-in web interface you may need to adjust the IP settings, choose one of the following methods. The Bolt Serial default IP address is 192.168.0.99. Option 1 - Set a Static IP Address on Your PC On the PC accessing the Bolt Serial built-in web interface, set a static IP address within the same IP address range as the Bolt Serial IP address.
- Page 16 Wireless Bolt Serial Bolt Serial Built-In Web Interface Use the software application HMS IPconfig to find and change the IP address on the Bolt Serial Ethernet port, to one within the same IP address range as the PC accessing the Bolt Serial built-in web interface.
- Page 17 ® ™ Configuring with Easy Config Anybus Wireless Bolt Serial 5.3. Configuring with Easy Config Figure 4. The default mode is Easy Config Mode 4 By default Wireless Bolt and Bridge starts in Easy Config Mode 4. Configuration of Wireless Bolt and Bridge Clients can be performed wirelessly, via a PC connected to the Wireless Bolt or Bridge Access Point.
- Page 18 ® ™ Anybus Wireless Bolt Serial Available Easy Config Modes 5.4. Available Easy Config Modes Bolt Serial may be configured using one of the pre-configured Easy Config modes. NOTE By default, the unit starts in Easy Config Mode 4. The unit awaits automatic configuration during 120 seconds or until receiving a configuration.
- Page 19 ® ™ Configuration with AT Commands Anybus Wireless Bolt Serial 5.5. Configuration with AT Commands Advanced configuration can be carried out by issuing AT commands via the web interface or over a Telnet or RAW TCP connection to port 8080 or over serial interface. Use AT commands to setting advanced parameters, that are not accessible in the Bolt Serial built-in web interface.
- Page 20 ® ™ Anybus Wireless Bolt Serial Set Up Wireless Infrastructure 5.6. Set Up Wireless Infrastructure Connect two or more Bolt Serial units via WLAN or Bluetooth using Easy Config. Procedure Connecting the Devices Figure 6. Serial bridge Connect Client 1 to a Slave serial device. See also Connect to LAN, Serial and Power.
- Page 21 ® ™ Set Up Wireless Infrastructure Anybus Wireless Bolt Serial Activate one of the following Easy Config Modes: Figure 7. Easy Config modes menu • Easy Config Mode 1 for Bluetooth PANU-PANU. Used for setting up point-to-point communication. • Easy Config Mode 5 for WLAN. •...
- Page 22 ® ™ Anybus Wireless Bolt Serial Set Up Wireless Infrastructure Option when using Easy Config Mode 5 or 6: You can add up to 6 additional Bolt Serial Clients to the serial bridge. To add additional Clients: Connect the Client to a serial device. Automatic configuration of the Client starts.
-
Page 23: Troubleshooting
® ™ Troubleshooting Anybus Wireless Bolt Serial 6. Troubleshooting 6.1. Reset to Factory Default IMPORTANT If there is no Ethernet connection available after a factory reset, the Bolt Serial starts in the default Easy Config Mode 4. Any one of these actions will restore the unit to factory default settings. Reset Using the RESET Button Press and hold RESET for >10 seconds and then release it. - Page 24 ® ™ Anybus Wireless Bolt Serial Reset to Factory Default Reset Via the Built-In Web Interface Launch the built-in web interface > On the System Settings page, click Factory Restore. Reset Using Easy Config To reset Bolt Serial to factory default, execute Easy Config Mode 2. Activate an Easy Config Mode in the Built-In Web Interface.
-
Page 25: Recovery Mode
® ™ Recovery Mode Anybus Wireless Bolt Serial 6.2. Recovery Mode If the built-in web interface cannot be accessed, the unit can be reset by starting in Recovery Mode and reinstalling the firmware. Before You Begin IMPORTANT Use Recovery Mode only when the unit is unresponsive and the built-in web interface cannot be accessed. -
Page 26: Technical Data
® ™ Anybus Wireless Bolt Serial Technical Data 7. Technical Data For complete technical specifications and regulatory compliance information, please visit www.anybus.com/support. 7.1. Technical Specifications Order code AWB2010 AWB2011 Color Black White top and black base Connector Included plug connector (2x9p;... - Page 27 ® ™ Technical Specifications Anybus Wireless Bolt Serial Order code AWB2010 AWB2011 Humidity EN 600068-2-78: Damp heat, +40°C, 93% humidity for 4 days. compatibility Digital input Usage: To control roaming between Bluetooth access points (NAP) Wired interface Serial: RS232/485 Baud rate: 2.400 - 921.600 kbit/s, data bits 5-8, stop bits 1-2, parity None, Odd, Even. Transparent serial protocol transfer including support for Modbus-RTU.
- Page 28 This page is intentionally left blank.
- Page 29 This page is intentionally left blank.
- Page 30 This page is intentionally left blank.
