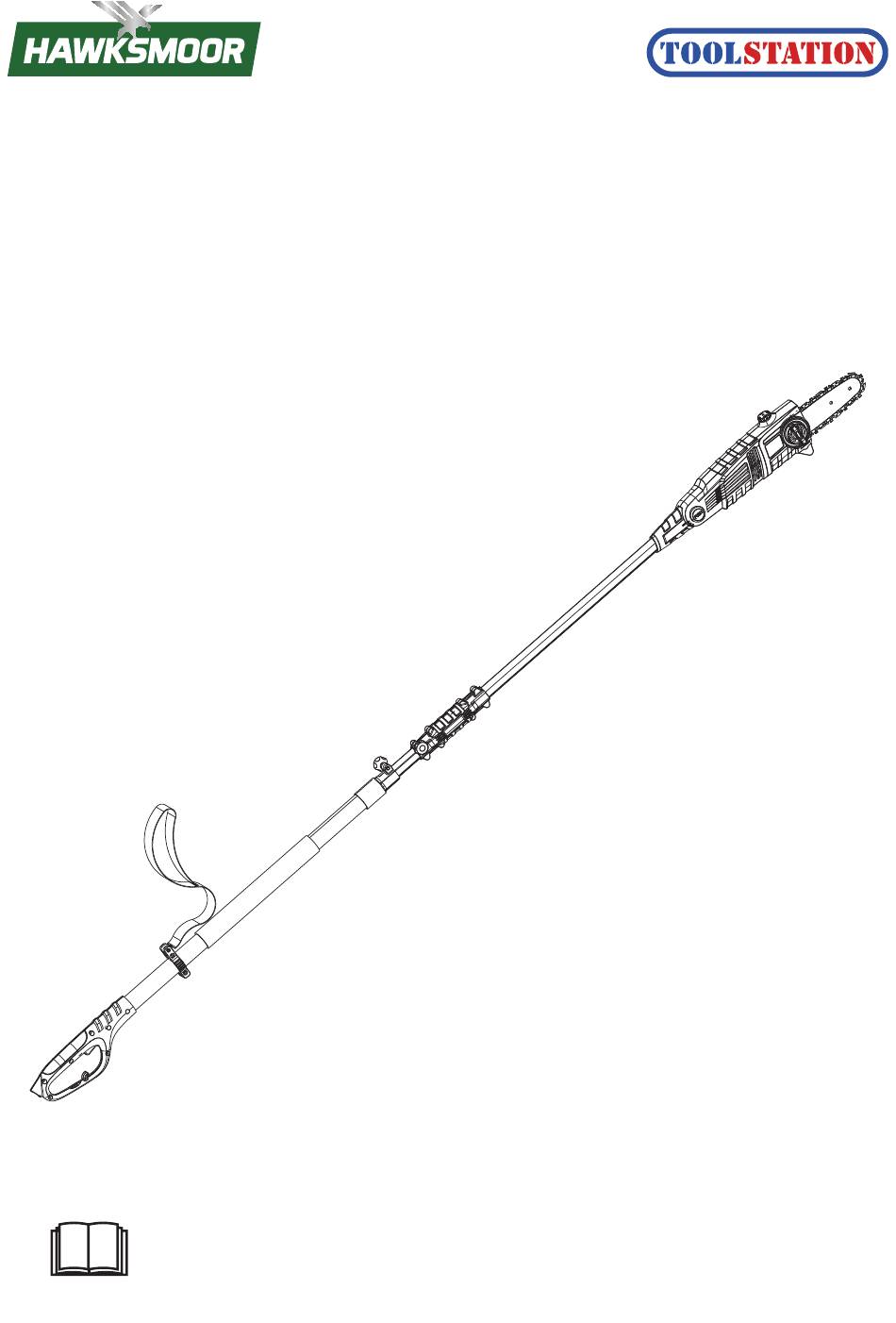

- Page 1 Original User’s Instructions 750W Pole Saw SKU: 26290 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...
-
Page 2: Table Of Contents
CONTENT ∫ WHAT’S IN THE BOX ---------------------------------------------------------- 3 ∫ SPECIFICATIONS -------------------------------------------------------------- 4 ∫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5 ∫ IMPORTANT SAFETY WARNINGS -------------------------------------------- 8 ∫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 19 ∫ ASSEMBLY AND OPERATING INSTRUCTIONS -----------------------------20 ∫... -
Page 3: What's In The Box
WHAT'S IN THE BOX Upper part Lower part Shoulder strap Bar & chain cover Guide bar Chain Oil bottle If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk... -
Page 4: Specifications
SPECIFICATION Technical Data M1L-5ET-200 Model Rated Voltage 230-240V~ 50Hz Rated Power Rate (W) Guide bar length/Cutting length(mm) 240/190 Chain speed (m/s) Chain pitch 3/8'' Chain gauge .050'' Oil tank capacity (cm Protection class Net Weight (kg) approx. Cabel/Plug H05VV-F 2x0.75mm , 6m, BS plug Aluminium telescopic pole 220cm-280cm... -
Page 5: Explanations And Symbols, Cautions And Warnings
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS Caution / Warning. Read the instruction manual. Wear hearing protection! Wear eye protection! Wear respiratory protection! Wear protective gloves! Wear slip-resistant, sturdy footwear! Wear safety helmet! Warning! Danger from overhead electric-power lines! Keep at least 10 m distance. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. - Page 6 Kickback! Tip contact may cause the guide bar to move suddenly upward and backwards what may cause serious injury to user. Contact of the guide bar tip with any object should be avoided. Always use the product with two hands. Do not use only one hand when operating the product.
- Page 7 UK Comformity Assessed This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
-
Page 8: Important Safety Warnings
IMPORTANT SAFETY WARNINGS IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 9 2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. 3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 10 3. Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
- Page 11 4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
- Page 12 3. Hold the product by insulated gripping surfaces only, because the saw chain may contact hidden wiring or its own cord. Saw chains contacting a “live” wire may make exposed metal parts of the product “live” and could give the operator an electric shock. 4.
- Page 13 12. Carry the product by the soft grip with the product switched off and away from your body. When transporting or storing the product always fit the guide bar cover. Proper handling of the product will reduce the likelihood of accidental contact with the moving saw chain.
- Page 14 Causes and operator prevention of kickback Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
- Page 15 Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low- noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: 1.
- Page 16 2. Switch off and disconnect from the power supply if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again. Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.
- Page 17 Pole saw trimming precautions Never stand directly under the limb you are trimming. Always position yourself out of the path of falling debris. Never stand on a ladder or other type of unstable support while using the pole saw. Always use both hands when operating pole saw. Keep a firm, steady pressure on the pole saw while cutting but do not try to force the saw through the wood.
- Page 18 Keep other persons away from cutting end of pole saw and at a safe distance from work area. Do not use pole saw near cable, electric power or telephone lines. Maintain a minimum clearance of 3 metres from all power lines.
-
Page 19: Product Description And Identifications
PRODUCT DESCRIPTION AND IDENTIFICATIONS 1. Bar and chain cover 13. Shoulder strap 2. Saw chain 14. Rear handle 3. Guide bar 15. Trigger switch On/Off 4. Power head 16. Oil cap 5. Angle adjustment button 17. SDS tension system 6. Extension pole 18. -
Page 20: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS Intended use/Not intended use The chainsaw with telescoping arm is intended for removing branches from trees. It is not suitable for extensive sawing work and felling trees or for the sawing of materials other than wood. Please observe that our machine was not designed for use in commercial, technical or industrial applications. - Page 21 Place the saw chain round the sprocket and make sure it is correctly mounted. Using one hand to hold the bar and chain. Place the guide sprocket cover on top. Make sure part a, b, c of the cover match the corresponding positions A, B, C on the machine, and they are firmly fixed together.
- Page 22 Loosen: Rotate the SDS locking knob counter-clockwise to loosen the tension on the chain. Turn slowly and continually check the tension until the correct adjustment is made. Do not over-tension chain. Over-tensioning will cause excessive wear and will reduce the life of the guide bar and chain.
- Page 23 B. Component Assembly 1. Loosen and remove the locking nut of the link collet(8). 2. Loosen the locking nut(21) on the lower pole so the telescopic pole is able to be pulled out to a desired length for connection to the link collet. Insert the telescopic pole(10) into the link collet in direction A until it is fully connected and the dent on the telescopic pole located in the middle of the path of locking nut (8).
- Page 24 Saw chain tension WARNING:Unplug chain saw from power source before adjusting saw chain tension. Severe injury or death could occur from body contact with moving chain. WARNING: Cutting edges on chain are sharp. Use protective gloves when handling chain. WARNING: When cleaning saw body, •...
- Page 25 Switching on/off 1. Ensure the saw chain does not come into contact with anything before starting the product. 2. Grip the product with both hands, your left hand holding the soft grip sleeve (12) and your right hand holding the rear handle. Do not start the product while handling it with one hand. 3.
- Page 26 Cutting with the chain saw 1. Ensure there is sufficient chain oil in the tank. 2. Connect power cord to power supply. 3. Use both hands to grip pole saw. Use designated grip areas and strap when operating pole saw with a firmly grip and fingers must wrap around pole saw handle and pole.
- Page 27 7. Remove pole saw from a cut with saw running at full speed. Stop pole saw by releasing trigger. Make sure chain has stopped before setting pole saw down. NOTE: Always dispose of lubricant, used oil and objects contaminated with them in accordance with local regulations.
- Page 28 3. Open the clip to remove the shoulder strap from the loop. 4. The position of the seat retainer should be positioned so providing maximum comfort and control. Loosen the screw and move the seat retainer back and forward along the pole. It’s recommended to locate the seat retainer within the range about 30cm from the soft grip sleeve.
-
Page 29: Care And Cleaning
CARE AND CLEANING INJURY WARNING: Always wear protective gloves when working on or around cutting equipment. Cleaning saw body Keep saw body clean. Use a soft cloth dampened with a mild soap and water mixture. Wipe saw body to clean. Care of guide bar Uneven bar wear causes most guide bar problems. - Page 30 Normal Guide Bar Maintenance 1. Remove guide bar from chain saw. 2. Remove sawdust from guide bar groove periodically. Use putty knife or wire. 3. Clean oil slots after each day of use. 4. Remove burrs from sides of guide bar. Use flat file to make side edges square. Replace guide bar when •...
- Page 31 Sharpening Cutters Use file guide for 30° filing. 1. Adjust chain for proper tension. 2. Clamp guide bar in vise to hold saw steady. (Note: Do not clamp chain.) 3. Press 5/32" round file (attached to file guide) into groove between top plate and depth gauge on chain.
- Page 32 Filing Cutter Depth Gauges The cutter depth gauge clearance is reduced as cutters are sharpened. After every second or third sharpening, reset cutter depth gauges. 1. Place depth gauge tool (.025") firmly across top of two cutters. Make sure depth gauge enters slot in depth gauge tool. 2.
- Page 33 Replacing caw chain IMPORTANT: Do not clamp chainsaw in vise to replace saw chain or guide bar. Replace chain when cutters are too worn to sharpen or when chain breaks. Only use replacement chain noted in this manual. Refer to saw chain assembly on page 20 to page 21 while completing the following steps.
-
Page 34: Trouble Shooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: Problem Possible cause Remedy 1. Product does not 1.1 Not connected to power supply 1.1 Connect to power supply start 1.2 Power cord or plug is defective 1.2 Check by a specialist electrician 1.3 Other electrical defect to the... -
Page 35: Declaration Of Conformity / Performance
DECLARATION OF CONFORMITY / PERFORMANCE Product Code 26290 (M1L-5ET-200) Product Description Hawksmoor 750W Pole saw 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration... -
Page 36: Environmental Information
ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 37: Guarantee
GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
Need help?
Do you have a question about the TOOLSTATION M1L-5ET-200 and is the answer not in the manual?
Questions and answers
The sprocket on the 750w electric polesaw isn't turning when plugged in
The sprocket on the Hawksmoor TOOLSTATION M1L-5ET-200 750W electric pole saw may not be turning when plugged in due to one or more of the following reasons:
1. Chain Tension Too Tight: Over-tensioning the chain can prevent the sprocket from turning. Loosen the SDS locking knob slightly and adjust the chain tension to the correct level.
2. Sprocket Cover Not Properly Fitted: If the sprocket cover is not securely attached, the sprocket may not engage. Ensure part C is correctly inserted and you hear a click indicating proper fit.
3. Power Not Reaching the Motor: Check that the saw is properly plugged in and the power source is working.
4. Safety Lock Not Engaged: The lock-off button must be pushed before the trigger is pulled. Ensure both hands are in the correct position and the lock-off button is used as instructed.
5. Internal Fault or Blockage: If the above steps do not resolve the issue, there may be an internal fault or mechanical blockage preventing the sprocket from rotating.
Always unplug the saw before performing any checks or adjustments.
