Hawksmoor LS C13A User Instructions

18v cordless mini pruning chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

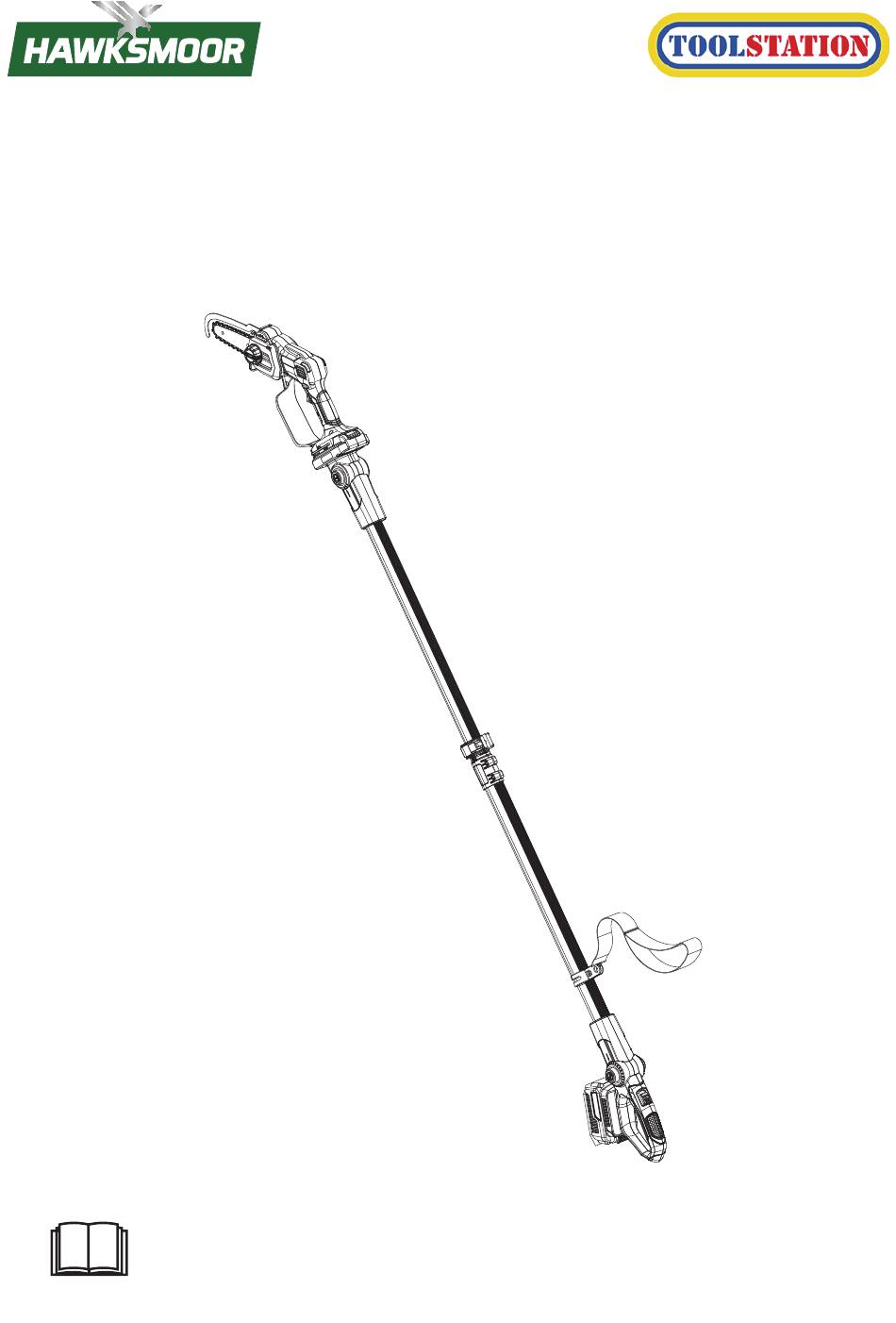

Original User's Instructions
18V Cordless Mini Pruning Chainsaw
SKU: 37438
READ BEFORE USE
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS C13A and is the answer not in the manual?

Questions and answers

Related Manuals for Hawksmoor LS C13A

Summary of Contents for Hawksmoor LS C13A

  • Page 1 Original User’s Instructions 18V Cordless Mini Pruning Chainsaw SKU: 37438 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...

  • Page 2: Table Of Contents

    CONTENT ∫ WHAT’S IN THE BOX ---------------------------------------------------------- 3 ∫ SPECIFICATIONS -------------------------------------------------------------- 4 ∫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5 ∫ IMPORTANT SAFETY WARNINGS -------------------------------------------- 8 ∫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 24 ∫ ASSEMBLY AND OPERATING INSTRUCTIONS ----------------------------25 ∫...

  • Page 3: What's In The Box

    WHAT'S IN THE BOX Telescopic pole handle Hand-held mini Charger Battery pruning chainsaw Oil bottle shoulder strap If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk...

  • Page 4: Specifications

    SPECIFICATION Technical Data Model LS C13A Mains voltage 18 V d.c. No load chain speed 3.2 m/s Cutting length 110 mm Bar length 127mm Product length range with telescopic pole 144cm-188cm Sound pressure level: L 67.9 dB(A), K=3 Sound power level: L 87.9 dB(A), K=3...

  • Page 5: Explanations And Symbols, Cautions And Warnings

    EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS Caution / Warning. Read the instruction manual. Wear hearing protection! Wear eye protection! Wear respiratory protection! Wear protective gloves! Wear slip-resistant, sturdy footwear! Wear mask! Warning! Danger from overhead electric-power lines! Keep at least 10 m distance. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
  • Page 6 Contact of the guide bar tip with any object should be avoided. Always use the product with two hands. Do not use only one hand when operating the product. Do not use in rain or wet conditions. Guaranteed sound power level value Chain oil fill Correct direction of cutting-teeth Caution! Risk of injury due to running blades!
  • Page 7 This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. Do not throw into water. Do not throw to fire.

  • Page 8: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS General Power Tool Safety Warnings Warning: Please read the following instructions carefully, failure to do so could lead to serious personal injury. When using the electric mini pruning chainsaw, basic safety precautions, including the following, should always be followed to reduce the risk of fire,electric shock and personal injury.
  • Page 9 Work Area Safety • Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. •...
  • Page 10 Personal Safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 11 Power Tool Use and Care • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
  • Page 12 Service • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Product Safety Warnings Mini Pruning Chainsaw Safety Warnings: • Use the tool only with specifically designated battery packs. Use of any other battery packs will increase the risk of injury and fire.
  • Page 13 • Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. •...
  • Page 14 • Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control. • Use the harness provided. • Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials.
  • Page 15 Causes and Operator Prevention of Kickback: Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
  • Page 16 Vibration and Noise Reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low- noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: 1.
  • Page 17 1. Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property. 2. Switch off and disconnect from the power supply if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.
  • Page 18 Save These Instructions: Instructions concerning the proper techniques for mini pruning chainsaw precautions. Never stand directly under the limb you are trimming. Always position yourself out of the path of falling debris. Never stand on a ladder or other type of unstable support while using the pole saw.
  • Page 19 Do not use the pole saw to cut limbs larger in diameter than the length of the guide bar. Keep other persons away from cutting end of pole saw and at a safe distance from work area. Do not use pole saw near cable, electric power or telephone lines. Maintain a minimum clearance of 3 metres from all power lines.
  • Page 20 Safety Warning For Battery Pack • Fully charge battery pack before the first use. • Recharge battery pack when the power output starts to slow. Do not continue to use product when battery capacity level is low. • To prevent serious damage to the battery pack, charge in temperatures above 5°C or below 45°C.
  • Page 21 • Should a Li-ion battery catch fire, ensure to use the correct fire extinguisher to combat the fire. Do not throw or spray water on a burning Li-ion battery. • Keep battery pack clean and dry. Wipe the battery pack terminals with a clean dry cloth if they become dirty.
  • Page 22 Safety Warning For Battery Charger • Charge only battery pack of the same model provided by manufacturer and of models recommended by manufacturer. • Do not use the original charger on other Li-ion batteries or on any other type of battery as this can increase the risk of fire or explosion.
  • Page 23 • Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging. • The temperature range over which the battery pack can be charged is typically between 5°C-45°C. Attempts to charge out with the prescribed temperature range may automatically be blocked by the protection circuitry of the battery pack.

  • Page 24: Product Description And Identifications

    PRODUCT DESCRIPTION AND IDENTIFICATIONS 1. Riving knife 11. Connection port angle adjustment button 2. Bar & Chain 12. Telescopic pole lever lock 3. Chain tensioning hex screw 13. Bar & chain cover sheath 4. Base plate 14. Rear handle trigger switch 5.

  • Page 25: Assembly And Operating Instructions

    ASSEMBLY AND OPERATING INSTRUCTIONS NOTE: To reduce the risk of injury, user must read instruction manual. Intended Use The mini pruning chainsaw with telescopic pole is intended for removing branches from trees. It is not suitable for extensive sawing work and felling trees or for the sawing of materials other than wood.
  • Page 26 BEFORE OPERATION WARNING: The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections otherwise an electrical failure and hazard will occur.
  • Page 27 Charging light indicator Red LED on; Green LED off Charger ready Red LED on; Green LED flashes Battery pack charging Red LED off; Green LED on Battery pack fully charged Red LED flashes; Green LED off Battery pack too cold or hot Red LED flashes faster;...
  • Page 28 To insert the battery pack 1. Align the groove on the battery pack with the corresponding ribs on the mini pruning chainsaw. 2. Insert the battery pack until it locks into place with a click. To remove the battery pack from the tool 1.
  • Page 29 Switching ON and OFF NOTE: Lubricate the chainsaw before turning the machine on. The use of the hand held mini pruning chainsaw without lubricating the chain with chain oil will damage the saw chain and the guide bar. For saw chain lubricating, refer to setion "Lubricate the saw chain" on page 36. 1.
  • Page 30 2. Align the battery port on the mini pruning chainsaw with the connection port on the telescopic pole. Slide the mini pruning chainsaw onto the connection port. It is successfully located into the connection port when you hear a click sound. 3.
  • Page 31 4. Use two fingers to press the telescopic pole connection port angle adjustment buttons (11) on both sides to adjust the cutting angle. There are 3 angle settings. Release the bottons when desired angle has been chosen, and is locked into place when a 'click' sound is heard. Apply the suitable position when cutting the branches in different height.
  • Page 32 6. Assemble the strap belt (18) to the belt clip (17) on the pole and place over the shoulder added comfort. www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk...
  • Page 33 7. The telescopic shaft can be extended by releasing the lever (12) on the locking cam and extending the pole. Once the desired length is reached, lock the pole in position by closing the lever (12) on the locking cam. Ensure the pole is locked before using. Max.
  • Page 34 8. Insert the battery pack onto the pole rear handle battery port. 9. To switch on the machine, first push forward the rear handle lock-off switch (16) and then press the rear handle trigger switch (14). To switch off the saw, release the rear handle trigger switch (14). Warning: When the telescopic pole is being used, the trigger switch on the hand held mini pruning chainsaw will not start the machine.
  • Page 35 Break-in time for new saw chains 1. Remove the battery, lubricate the chain and adjust the tension of the chain. For chain tensioning operation,refer to section" Re-mounting the saw chain" or "Adjust saw chian tensioning" on page 34. 2. Put the battery pack to the machine and switch the machine on. Allow to run idly for approximately 5 minutes.
  • Page 36 Re-mounting the saw chain Risk of injury! Always wear gloves when handling the saw chain. 1. Unscrew the know screw(9) counter-clockwise in order to remove the sprocket cover(5). 2. Hold the guide bar still and slide and wrap the chain in the groove around the guide bar. Ensure the chain tooth is in the correct running direction by comparing it to the chain icon on the guide bar and the machine.
  • Page 37 drive sprocket chain icon Guide bar position bolt Chain tensioning bolt 3. Replace the sprocket cover(5) onto the machine and insert the knob screw(9) into the middle hole of the sprocket cover(5). Turn the knob screw(9) clockwise to securely tighten the sprocket cover(5).
  • Page 38 4. Use the hex key(6) attached on the chainsaw to adjust the chain tension by the chain tensioning hex screw(3)z showed in the figure below. The tension is correct when the chain snaps back after being pulled 2 mm away from the guide bar with light force from the index finger and thumb as shown in Figure below.
  • Page 39 Lubricate the saw chain Add a high quality bar and chain oil for proper chain and bar lubrication. As a temporary substitute, a non-detergent SAE30 weight motor oil can be used. The use of a vegetable based bar and chain oil is recommended when pruning trees. Mineral oil is not recommended because it may harm trees.
  • Page 40 Sharpen the saw chain The saw teeth must be sharpened if the sawdust becomes powdery, if additional force is required for the incision, if a straight incision is no longer possible or if the vibrations increase. Blunt saw chains should be re-sharpened. To sharpen the chain use a chain sharpener.

  • Page 41: Care And Cleaning

    CARE AND CLEANING WARNING! To avoid serious injuries, always switch off and remove the battery before cleaning or maintenance. Wear protective gloves and goggles when cleaning the mini pruning chainsaw. WARNING! Have repairs and maintenance work that are not described in these instructions carried out by our service center.

  • Page 42: Trouble Shooting

    TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: Fault/malfunction Cause Remedy Product does not start Battery pack not properly attached Attach properly Battery pack over-discharged Remove and charge the battery pack Battery pack damaged Contact our service centre Other electrical defect to the...

  • Page 43: Declaration Of Conformity / Performance

    DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 37438 (LS C13A) Product Description: Hawksmoor 18V Cordless Mini Pruning Chainsaw 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2.

  • Page 44: Environmental Information

    ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 45: Guarantee

    GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
