Hunter 21318 Parts Manual

Hardware
(Drawn to Scale)
x 2
x 4
x 2
x 3
x 3
x 1
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 3
3" Wood Screw
Flat Washer
1.5" Wood Screw
Hanger
Bracket
Assembly
Canopy Screw
Mounting Isolator
Set Screw
Screw, Blade
Iron Armature
Blade
Assembly
Blade Grommet
Screw, Blade
Assembly
Switch
Screw, Switch
Housing
Housing Assembly
Assembly
Screw,
Machine, 6-32
Fan Parts
(Not Drawn to Scale)

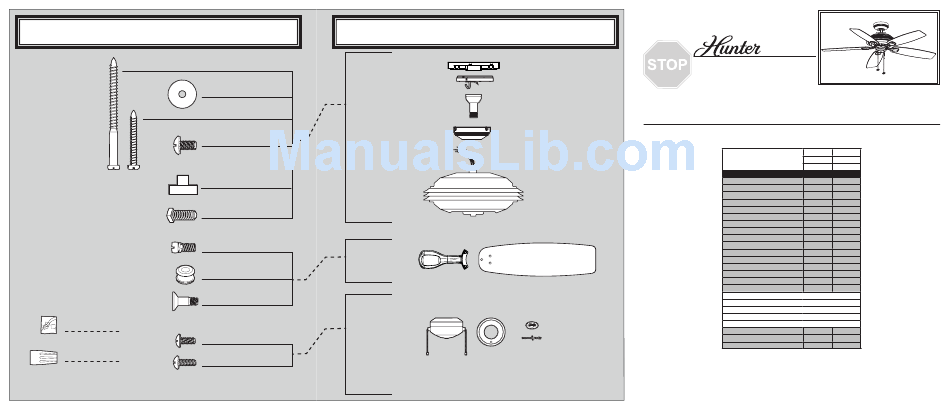

PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model #

Parts List

Asm. Dwg. #
Finish
Item Name Qnty
Ceiling Plate 1
Canopy 1
Ceiling Plate Gasket 1
Hanger Ball / Downrod Assembly 1
Setscrew 1
Canopy Screw 3
Wood Screw 2
Wood Screw 2
Flat Washer 4
Mounting Isolator 3
Switch Housing Assembly 1
Switch Housing Gasket 1
Blade Iron Set 1
Blade Set 1
Screw, Blade Iron Armature 11
Hardware Kit 1
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Pull Chain Pendant 2
Pull Chain 2
Balancing Kit 1
Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com •
21318
98954-01
New Bronze
Part #
83525-01
83787-04
74254-03
74655-03
03009-04
74510-22
03144-05
06512-03
06301-02
63731-01
98960-08
74563-01
98832-10
76697-38
63755-06
98954-00-860
74393-08
63756-30
07570-01
98000-01-934 12-16-2008 • 2008
©
