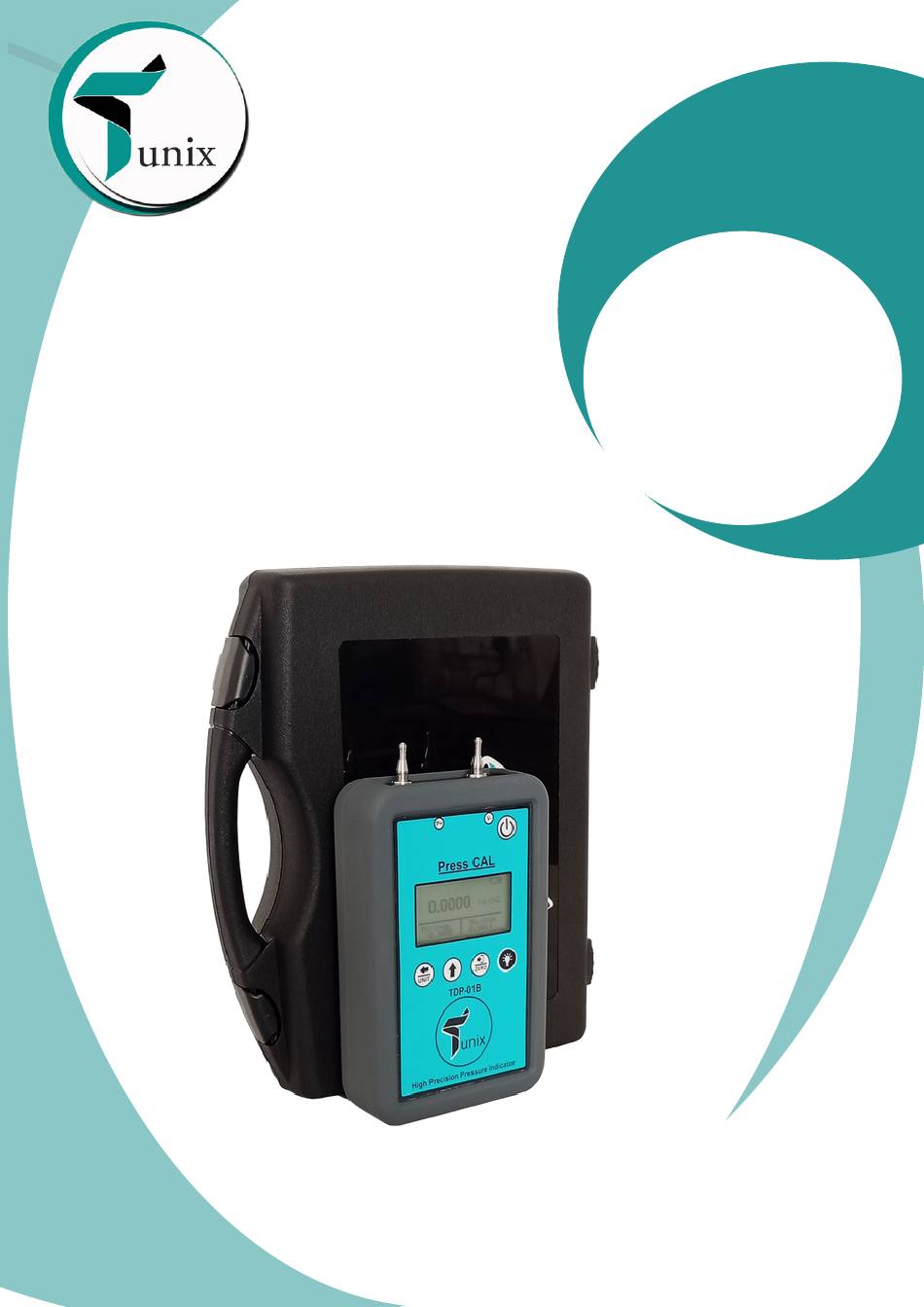

- Page 1 PressCAL High Accuracy Digital TDP-01B (Differential/Guage/Absolute) Instrument Pressure Indicator Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Preface..................3 2.Technical Specification............4 3. Understand the Instruments............5 3. Calibration................9 4. Warranty Certificate..............14... -
Page 3: Preface
PREFACE Welcome & thanks for purchasing Our PressCAL Model No-TDP-01B, Our high Accuracy pressure measurement instrument. Please refer Technical specifications & instructions carefully before using the product. STANDARED ACCESSORIES Please check for following Standard accessories/Observation 1) Product is not physically damaged. -
Page 4: Technical Specification
TECHNICAL SPECIFICATION Measurement Range : Various models & ranges available ranging from 0- 0.15 PSI & upto 100 PSI (Bidirection Pressure ranges also available in request). Measurement Modes : Differential & Gauge pressure modes /Absolute pressure modes( Prior order basis). High Accuracy : 0.1% Full scale Resolution high resolution of 5 digits ( For higher ranges depends upon the pressure range) Linearity : Maximum 0.05% FS ( Defined as best fit straight line) -
Page 5: Understand The Instruments
UNDERSTAND YOUR INSTRUMENT Hi Pressure input (connect tube) Low pressure Input (connect tube) Instrument Switch ON /OFF button Unit selection key (works as shift digit key in program mode) Up Arrow key / Increment key (works as resetting key for resetting minimum & maximum values) Zero Key/Enter (Press for 1 second to zero /tare the pressure display) , this key works as “Enter”... - Page 6 Battery compartment, Remove Silicon protective cover to replace the battery Batteries: AA size alkaline...
- Page 7 SWITCHING THE UNIT ON Press switch On key , at the start Unit Model number & serial number will be displayed , then pressure range will be displayed INSTRUCTIONS Users/customers are expected not to use the instrument below & above the pressure range mentioned, this will permanently damage the sensor Always Connect pressure tubes with leak free joints Instrument will perform “Autozero”...
- Page 8 PROGRAM MODE /SETTING MENU Switch On the instrument & let it perform auto zero automatically & wait till main display starts To enter into setting menu long press (Zero Key + Light key) together for 3 seconds continuously The Display shows the following prompt Password 0000 Enter password 1204 with help of shift (left) key &...
-
Page 9: Calibration
CALIBRATION Step Calibration (Full calibration Mode) Edit Values (Adjusting Calibration Values) Sample(Changing sampling rate) DpPoint (Deactivated) Resolution ( Increment or decrement ) STEP CALIBRATION MODE Step Calibration Mode is full calibration Mode at 10 multiple points( at every 10 % ) covering complete instrument range to provide high accuracy of 0.1 % FS throughout the operating range Use this Mode only when you have calibrated external pressure reference source &... - Page 10 After pressure value shown in zero, Press Enter key to move next 10% point, always remember to press enter key to savethe value of pressure Cali.>Step ------------------------------- Pressure at 10% +000.030 Adc Count XXXX After pressure value shown in 10%, Press Enter key to move next 20% point, Follow same steps at every 10 % till step calibration is complete till SPAN , a message will appear that calibration is complete ACTIVATION OF “EDIT VALUES “IN CALIBRATION MODE...
- Page 11 CALIBRATION Step Calibration Edit Values Sample DpPoint Resolution Enter the 2. Edit Values calibration mode with help of enter key, After the LCD Display shows the following prompt. Edit Table ------------------------------- 1. Pressure at Zero 2. Pressure at 10% 3. Pressure at 20% 4.
- Page 12 After display edit table in display inter Sr no.1 pressure at Zero with help of inter key (Zero key), Pressure at Zero ------------------------------- 1. Pressure : +000.000 2. Count : 208203 Edit the Pressure Value & ADC count value according to pressure value With help of left arrow (Unit) and up arrow key, after editing of count value move to edit table with help of exit key (light key).
- Page 13 After Show edit table in display inter Sr no.3 pressure at 20% with help of inter key (Zero key), Repeat the same procedure for other % values Pressure at Span ------------------------------- 1.Pressure : +000.300 2.Count : 380893 Edit the count value according to pressure value With help of left arrow(Unit) and up arrow key, after editing of count value move to edit table with help of exit key (light key).
-
Page 14: Warranty Certificate
WARRENTY CERTIFICATE This is certify that, Dry Block Temperature Calibrator having Sr. No.-------------------- Date-------------------- is propery Tested for workmanship. We Certify our Calibrator for satisfactory performance for the period of one year from the date of supply against any manufacturing defect. Signature...
