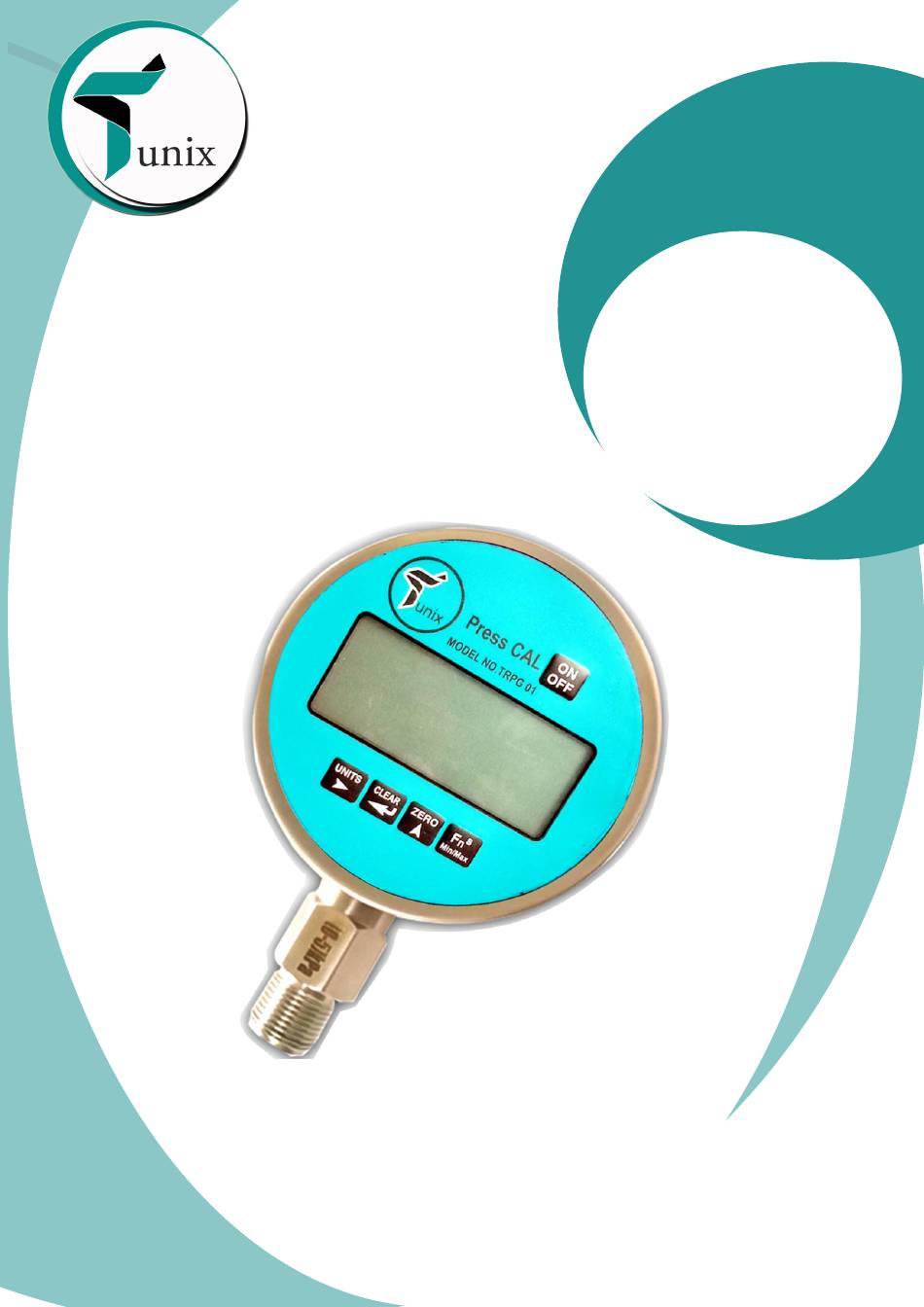

- Page 1 Digital Reference Grade Pressure TRPG-01B Indicator /Gauge Pressure Indicator Instrument Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Preface..................3 2.Technical Specification............4 3. Display and Control..............5 3. Calibration................6 4. Resolution Table................9... -
Page 3: Preface
PREFACE Welcome & thanks for purchasing Our Digital Reference Grade Pressure Indicator /Gauge Model No-TRPG-01B, Our high Accuracy pressure measurement instrument. Please refer Technical specifications & instructions carefully before using the product. STANDARED ACCESSORIES Please check for following Standard accessories/Observation 1) ... -
Page 4: Technical Specification
TECHNICAL SPECIFICATION Display: 7 segments 5 full digit high contrast customized LCD display. Accuracy: ± 0.1 % FS. Power: 7.5 VDC internal alkaline battery AA size (5X1.5) Pre-installed, Battery Life 600 hours. Over Pressure Protection: Indicator is displayed near the end of battery life. Types of Pressure &... -
Page 5: Display And Control
The TRPG-01B combines the high accuracy of digital electronics with the convenience and ease of use of an analog test gauge. With accuracy of ± 0.1 % FS, the TRPG-01B can be used as a calibration reference, or in applications where high accuracy pressure measurement is required. -
Page 6: Calibration
CALIBRATION Calibration adjustment of TRPG -01B is performed electronically via internal software with case closed. There are no mechanical adjustments. All commands and adjustments are done via the key pad using display to guide the user through calibration procedure PRESSURE CALIBRATION (DEAD WEIGHT PRESSURE SOURCE RECOMMENDED) There are total 8 steps for Pressure Calibration. - Page 7 EXAMPLE Pressure to be applied in kg/cm . Press enter after applying the pressure. kg/cm2 Counts displayed, press enter only after they are steady. The next step will be shown. Continue in this manner.
- Page 8 CHANGE PASSWORD Switch on the gauge & immediately Press the FnS key. Password ‘00000’ (factory set password) is displayed. Press enter key, the gauge will enter calibration mode ’CALI’ is displayed Press ‘Up’ key when ‘CALI’ is displayed. ’PASC’ will be displayed Press enter when the above is displayed.
-
Page 9: Resolution Table
RESOLUTION TABLE...
