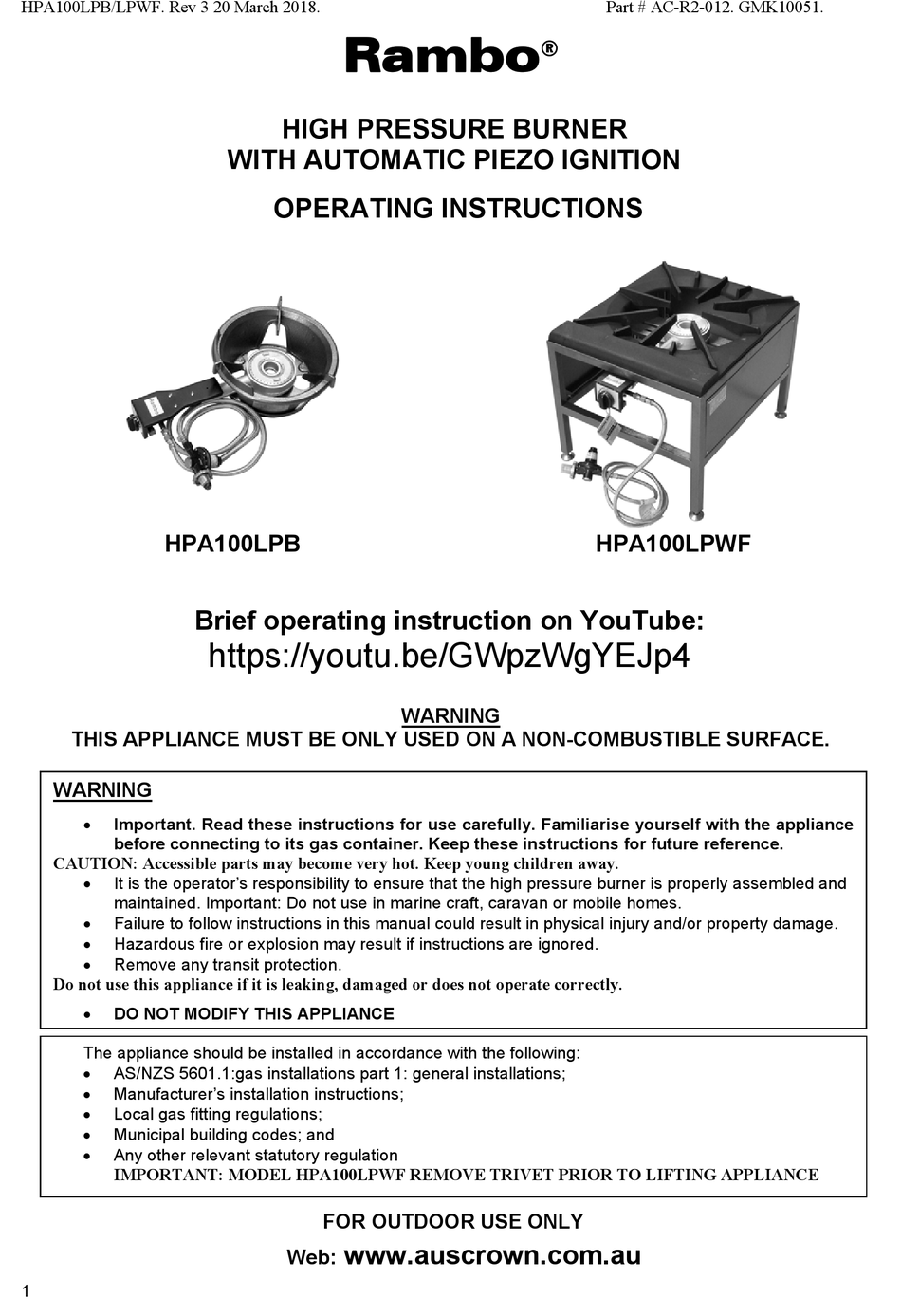

HPA100LPB/LPWF. Rev 3 20 March 2018.
HPA100LPB
THIS APPLIANCE MUST BE ONLY USED ON A NON-COMBUSTIBLE SURFACE.
WARNING
Important. Read these instructions for use carefully. Familiarise yourself with the appliance
before connecting to its gas container. Keep these instructions for future reference.
CAUTION: Accessible parts may become very hot. Keep young children away.
It is the operator's responsibility to ensure that the high pressure burner is properly assembled and
maintained. Important: Do not use in marine craft, caravan or mobile homes.
Failure to follow instructions in this manual could result in physical injury and/or property damage.
Hazardous fire or explosion may result if instructions are ignored.
Remove any transit protection.
Do not use this appliance if it is leaking, damaged or does not operate correctly.
DO NOT MODIFY THIS APPLIANCE
The appliance should be installed in accordance with the following:
AS/NZS 5601.1:gas installations part 1: general installations;
Manufacturer's installation instructions;
Local gas fitting regulations;
Municipal building codes; and
Any other relevant statutory regulation
IMPORTANT: MODEL HPA100LPWF REMOVE TRIVET PRIOR TO LIFTING APPLIANCE
1
Rambo
HIGH PRESSURE BURNER
WITH AUTOMATIC PIEZO IGNITION
OPERATING INSTRUCTIONS
Brief operating instruction on YouTube:
https://youtu.be/GWpzWgYEJp4
FOR OUTDOOR USE ONLY
www.auscrown.com.au
Web:
®
WARNING
Part # AC-R2-012. GMK10051.

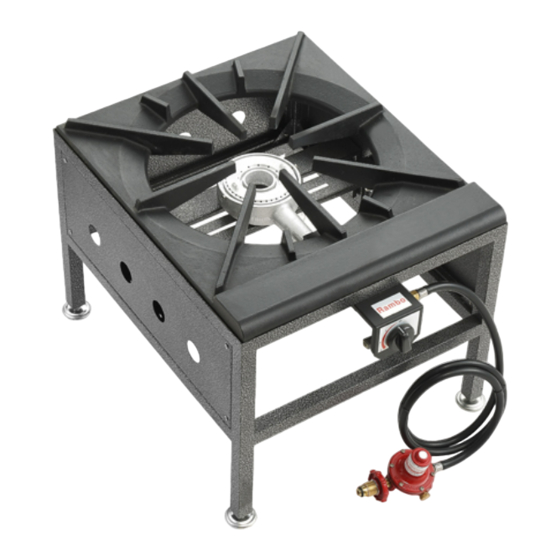

HPA100LPWF
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RAMBO HPA100LPB
Summary of Contents for RAMBO HPA100LPB
- Page 1 HPA100LPB/LPWF. Rev 3 20 March 2018. Part # AC-R2-012. GMK10051. Rambo ® HIGH PRESSURE BURNER WITH AUTOMATIC PIEZO IGNITION OPERATING INSTRUCTIONS HPA100LPB HPA100LPWF Brief operating instruction on YouTube: https://youtu.be/GWpzWgYEJp4 WARNING THIS APPLIANCE MUST BE ONLY USED ON A NON-COMBUSTIBLE SURFACE.
-
Page 2: Package Content
pots that are too small / large for the burner size, as they could be unstable on the trivet. For model HPA100LPWF the maximum vessel diameter is 47 cm. For model HPA100LPB the maximum vessel diameter is 45 cm. - Page 3 Always ensure that adequate fresh air is provided for ventilation. The burner must only be operated on a level, firm surface. For model HPA100LPB use only on a non-combustible surface. This burner shall not be used in a position where it could create a fire hazard and the ...
-
Page 4: Components List
IT MUST BE SERVICED AND REPAIRED BY A LICENCED PLUMBER OR GAS FITTER COMPONENTS LIST Part No. Part Name Gas Manifold Burner Bowl Burner Cap Burner Head Hose and Regulator HPA100LPB Part No. Part Name Trivet HPA100LPB Burner Head Hose & Regulator Adjustable Foot Body Frame... - Page 5 PREPARE TO ASSEMBLE THE APPLIANCE Check for damage on the appliance. If damage occurs, please contact Austcrown or your dealer. Do not use a damaged appliance. WARNING! It is hazardous to use a damaged appliance. Positioning the Appliance Only use the appliance in well ventilated areas. The appliance must be sited with at least a 1000mm gap between both sides and the rear of the appliance and at least 2700m from the trivet of the appliance and any combustible or non-combustible materials above the appliance.
- Page 6 Within a partial enclosure that includes an overhead cover and no more than two walls. These walls may be parallel or at right angles to each other (see figures 2 & 3). Fig. 2 Fig. 3 Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: One wall that is equivalent to at least 25% of the total wall area is completely open (see figure 4).
- Page 7 Gas Type and Gas Pressure Do not use any other gas type except the one specified on the label/data plate. For LP Gas Model These models of appliances are suitable for use with propane gas only and are set to operate under gas pressure of 100kPa.
- Page 8 Please always ensure that adequate fresh air ventilation is provided. The burner must only be used on a level firm non-combustible (HPA100LPB only) surface. The use of an adjustable wrench is required.
- Page 9 Lighting Burner 1. Before lighting, ensure the appliance is placed on a firm, level, non-combustible surface (model HPA100LPB). 2. Make sure the gas supply hose is connected to the gas inlet of the high pressure burner and that the regulator is connected to the propane gas cylinder with both connections being tight.
-
Page 10: Abnormal Operation
ANCILLARY SERVICE INFORMATION MAINTENANCE Allow the cooker to cool after use before performing any cleaning or maintenance work. Do not move the appliance or attempt any maintenance within 30 minutes of cooker being used. Burner ports may be cleaned with either compressed air or pipe cleaner or similar device. Any spider’s web formed in the burner inlet (venturi) must be cleared with a pipe cleaner or similar length device. - Page 11 Flame abnormality may be due to gas supply restriction or blockage of burner ports or venturi. Gas spillage may occur if the burner inlet is partially blocked by a spider’s web, the gas may ignite around the burner inlet. It is recommended that an authorised person/service agent perform all maintenance. If the burner fails to operate correctly, contact place of purchase or authorised agent for advice and service.
-
Page 12: Product Specifications
PRODUCT SPECIFICATIONS Model No HPA100LPB HPA100LPWF Piezo Ignition High Pressure Piezo Ignition High Pressure Product Name Burner with Hose and Regulator Stockpot Burner Dimension L520mm x W320mm x H160mm L600mm x W465mm x H440mm Weight 6.63 kg 29.0 kg Heat Capacity 55 MJ/hr (HGC) Main Burner: 0.90mm...
