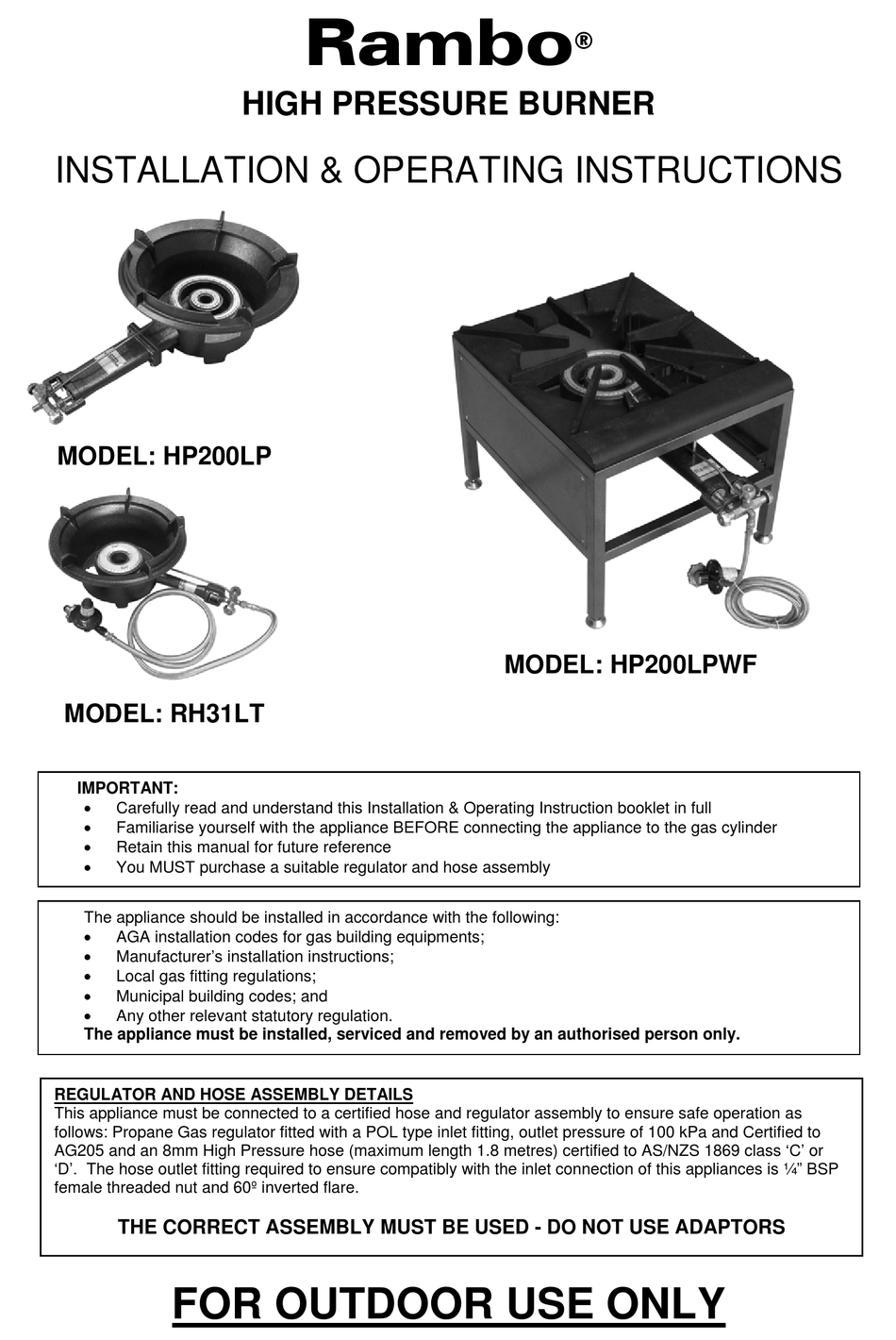

RAMBO HP200LP Installation & Operating Instructions Manual

INSTALLATION & OPERATING INSTRUCTIONS
MODEL: HP200LP
MODEL: RH31LT
IMPORTANT:

Carefully read and understand this Installation & Operating Instruction booklet in full

Familiarise yourself with the appliance BEFORE connecting the appliance to the gas cylinder

Retain this manual for future reference

You MUST purchase a suitable regulator and hose assembly
The appliance should be installed in accordance with the following:

AGA installation codes for gas building equipments;

Manufacturer's installation instructions;

Local gas fitting regulations;

Municipal building codes; and

Any other relevant statutory regulation.
The appliance must be installed, serviced and removed by an authorised person only.
REGULATOR AND HOSE ASSEMBLY DETAILS
This appliance must be connected to a certified hose and regulator assembly to ensure safe operation as
follows: Propane Gas regulator fitted with a POL type inlet fitting, outlet pressure of 100 kPa and Certified to
AG205 and an 8mm High Pressure hose (maximum length 1.8 metres) certified to AS/NZS 1869 class 'C' or
'D'. The hose outlet fitting required to ensure compatibly with the inlet connection of this appliances is ¼" BSP
female threaded nut and 60º inverted flare.
THE CORRECT ASSEMBLY MUST BE USED - DO NOT USE ADAPTORS
The use of any equivalent certified hose/regulator assembly compliant with the requirements above is
FOR OUTDOOR USE ONLY
Rambo
HIGH PRESSURE BURNER
®
MODEL: HP200LPWF
