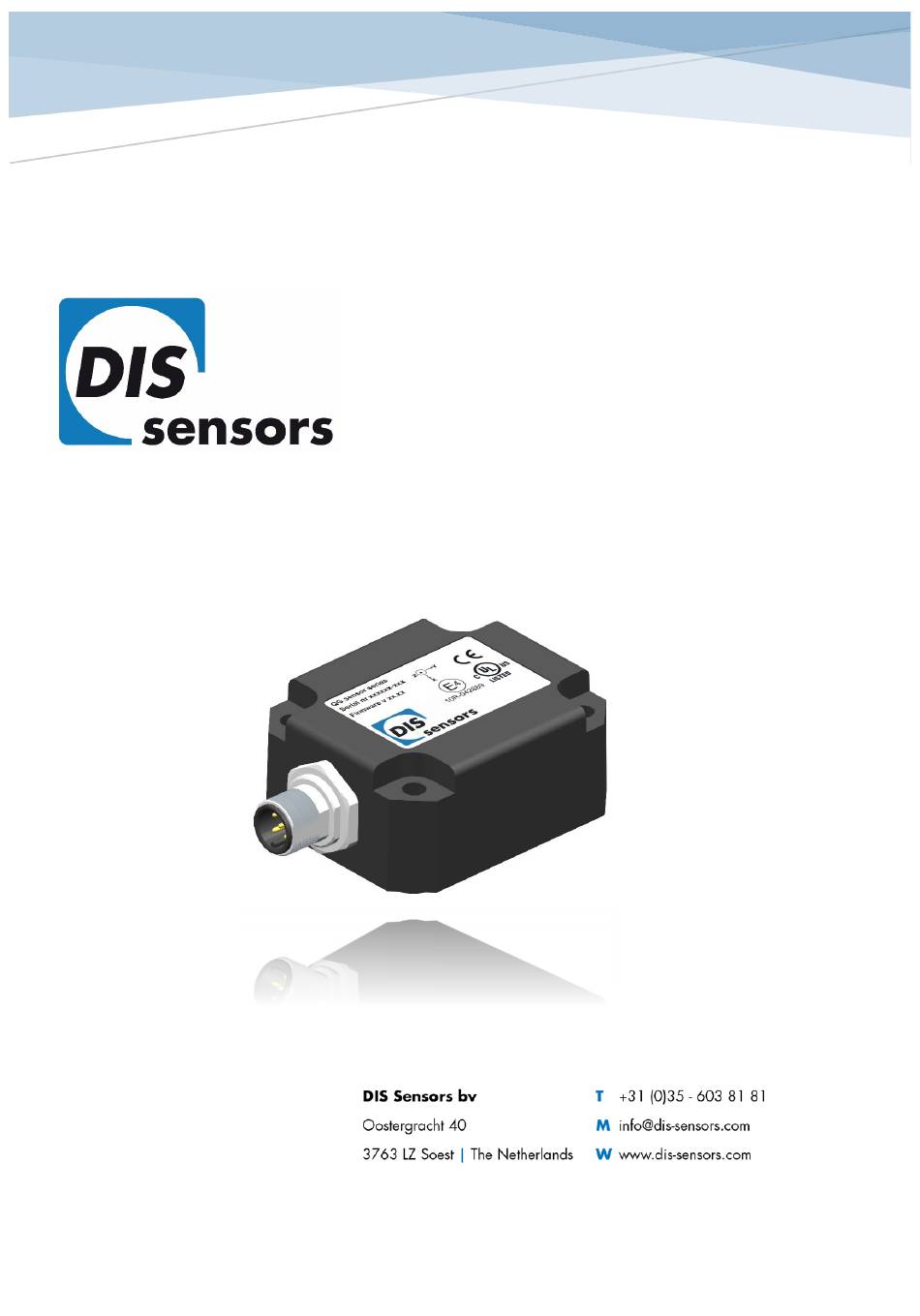

- Page 1 USER MANUAL QG65N2 SAE J1939 Inclinometer (Type JB) V1.1, Mar-22...
-
Page 2: Table Of Contents
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 Contents Contents ..................................... 1 Safety information ................................2 1.1. Intended use ................................2 1.2. Incorrect use ................................2 1.3. Sensor defective ..............................2 About this manual ................................3 2.1. Intended use ................................3 2.2. -
Page 3: Safety Information
1. Safety information 1.1. Intended use The QG65N2 J1939 Inclinometer is a MEMS-based inclination sensor with J1939 interface. This device provides precise and reliable inclination measurement in (semi)static conditions. The use of this device in a machine or system is permitted only under the following conditions: The user is trained and competent in the integration and use of inclination sensors in machinery. -
Page 4: About This Manual
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 2. About this manual 2.1. Intended use This manual applies solely to the QG65N2 J1939 inclinometer (Type JB) with the following model designations: • QG65N2-KIXv-360-CANJ-C(F)M-UL —— 1 axis, ± 180°, vertical mounting, std. acccuracy. -
Page 5: Document Revision Control
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 2.4. Document revision control Version Date(y-m-d) Revision V1.0 2022-01-10 release. V1.1 2022-03-08 Certain indices are not supported in the J1939 interface. Removed from parameter list. Correct description of signal processing. Function mode etc not supported. -
Page 6: Quick Reference
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 3. Quick reference General • 1-axis ± 180° and 2-axes ± 30°/± 90° inclinometer • Output type: SAE J1939 • Internal sample rate MEMS: 1000Hz; output rate: 100 Hz • 2nd order Low pass Bessel filter: 10Hz (→index 3014 •... -
Page 7: Installation Guide
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 4. Installation guide 4.1. Mechanical drawing Figure 1 - Mechanical drawing of QG65N2 with a male M12. 4.2. Mounting Use the 4 screws provided (M5x25 mm zinc plated steel Pozidrive pan head screws with self-tapping PZ •... -
Page 8: Connection
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 4.3. Connection The sensor is equipped with either a single 5-pole M12 (A-coded) male connector according to IEC 61076-2-101, or with an additional 5-pole M12 (A-coded) female connector. This is specified in the suffix of the device model designation: suffix CM indicates single male connector;... -
Page 9: Can Termination
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 4.4. CAN termination A CAN bus should be terminated properly to prevent signal reflections. The QG65N2 J1939 Inclinometer has an internal 120 Ohm termination resistor. By default, this is disabled. -
Page 10: Functional Description
6. Functional description 6.1. Inclination measurement principle QG65N2 Inclinometers measure inclination by measuring static acceleration of gravity using an accelerometer MEMS. In static conditions, inclination measurement by this principle is accurate and reliable. However, the vibrations or movements present on almost all industrial machines generate undesirable g-forces. -
Page 11: Measuring Axis And Direction For Acceleration
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 A dual-axis inclinometer (horizontal mount) measures the inclination on both X and Y axis. Measuring range is up to 90°. Due to the measurement principle, only one axis may tilt more than 45°. -
Page 12: Signal Processing
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 6.3. Signal processing Filter Algorithm Digital Filters MEMS Sampling •2nd order Bessel LPF •3 DOF raw outputs •Calculation rate 100Hz (10Hz) •Sampling rate 1000Hz •Output filter Figure 11 - Signal processing 6.3.1. -
Page 13: Boot-Up Procedure
The CAN-ID 18EEFF80 shows that the sensor has a default source address of 80 The data of the ACM is Figure 13 - ACM data This is the 64-bit device NAME for DIS sensors which contains the following fields: 64 bits 1 bit... -
Page 14: Output Format
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 6.5. Output format The device supports 2 different parameter groups (Tx PGNs): • Proprietary B Tx PGN1 65280 for Longitudinal, Lateral Inclination (Availability of lateral information depends on sensor type) •... -
Page 15: Acceleration Outputs Pgn 65283 (Ff03H)
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 Example – Inclination output of a 2-axis sensor The first 2 bytes are X inclination, and the second 2 bytes are Y inclination. The rest 4 bytes are not used. - Page 16 User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 For reading and writing the sensor configuration, Prop A PGN 61184 (EF00 ) (->PGN (Parameter Group Number)) is used. Example – Read serial number. Figure 20 - CMD read serial number...
-
Page 17: Load Factory Default Settings
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 6.7. Load factory default settings Factory reset or load factory default settings allows users to restore the device to its original manufacturer settings. The customer settings which were saved to the EEPROM will be overwritten by the factory default settings. -
Page 18: Zero Adjustment
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 6.8. Zero adjustment Zero adjustment allows users to compensate for mechanical offsets of a horizontally mounted 2-axis device or set a customised 0° position of a vertically mounted 1-axis sensor. The measured inclination value at the 0° position will be stored in the device as a permanent offset, which is used to calculate the actual inclination output of the device. - Page 19 User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 2. Via Index 6012h, 6022h Pre-set inclination value. To set the output of X/Y axis to 0°, write 0000 to index 6012 / 6022 at your desired 0° position. The offset will be...
-
Page 20: Firmware Management
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 6.9. Firmware management If a firmware version is mentioned on the label, it is the factory-installed firmware number. Figure 31 - Firmware version It can also be requested with index 100A Manufacturer software version. -
Page 21: Sae J1939 Specification
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 7. SAE J1939 specification The QG65D J1939 series of devices communicates with the SAE J1939 interface. SAE J1939 uses the CAN protocol to transmit a message on the network. Every message includes an identifier which defines the message priority, who sent it, and what data is contained within it. -
Page 22: Pgn (Parameter Group Number)
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 11-bit identifier devices can be used within the same network without conflict, but it’s not defined in J1939 standards. 7.3. PGN (Parameter Group Number) The J1939 PGN comprises an 18-bit subset of the 29-bit extended CAN ID. The PGN uniquely identifies the parameter group (PG) that is being transmitted in the message. - Page 23 User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 DA: defines the specific address to which the message is being sent. GE: provides extra 4096 PGNs per data page. Table 15 - PGN definition PGNs used by DIS J1939 sensors are explained as below:...
-
Page 24: Spn (Suspect Parameter Number)
- information required to extract and scale the SPN data to physical values. The assignment of SPNs can be found in SAE J1939-21 documents. DIS sensors B.V. is using PGN 2551 for definition of inclination and acceleration outputs. - Page 25 User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 All requested devices send their ACMs so that you know which devices are currently on the network. Any CA that is unable to successfully claim an address shall respond with a Cannot Claim Address message. It has the same PGN as ACM but has a source address of 254d (the NULL address).
-
Page 26: Parameter Overview
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 8. Parameter overview Some CAN open objects are kept for J1939 sensors for the configuration purpose. Use PGN 61184 to read/write those index. (→ 6.6 Sensor configuration (PGN 61184)) Index... - Page 27 User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 Index Subindex Data Access Object Name and description Factory Default Detail Type 6000 Resolution =0.01, 100 =0.1, 1000 =1.0 6012 Pre-set Inclination X-axis 0000 6013 Offset Inclination X-axis 0000 6022...
-
Page 28: Configuration Examples
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 9. Configuration examples 9.1. Change device address Use index 3101 sub-index 00 to change the device address. Byte 0-1 Index = 3101 Byte 2 CMD = 02 , write to the sensor. -
Page 29: Enable/Disable/Set Cycle Time
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 9.3. Enable/Disable/Set cycle time PGNs Use PGN cycle time to enable or disable PGNs. Index 3102 is used for PGN 65280 and index 3103 is used for PGN 65283. Below is an example for PGN 65280. -
Page 30: Save Changes To The Sensor
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 9.4. Save changes to the sensor Use index 1010 sub-index 01 Byte 0-1 Index = 1010 Byte 2 CMD = 02 , write to the sensor. Byte 3 Sub index = 01... -
Page 31: Read Vendor Id
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 9.6. Read vendor ID Vendor ID can be read by index 1018 sub-index 01 Byte 0-1 Index = 1018 Byte 2 CMD = 01 , read sensor Byte 3 Sub index = 01... -
Page 32: Zero Adjustment
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 9.7. Zero adjustment Use index 300F sub-index 00 to zero the sensor. Below is an example of zeroing X and Y axis for a 2-axis sensor. Byte 0-1 Index = 300F... -
Page 33: Abbreviations And Definitions
User Manual - QG65N2 SAE J1939 Inclinometer (Type JB) V1.1 Abbreviations and definitions Address Claimed Message Controller Area Network CAN-ID CAN Identifier Parameter Group Number Protocol Data Unit Suspect Parameter Number MEMS Microelectromechanical system Degrees of freedom PropA Proprietary A, PGN 61184...
