AR INDAP62 Quick Manual

For your safety, please read the following before using.
Do not use corrosive or flammable gas or liquid with this product.
1
Please use within the rated pressure range. Do not apply
2
pressure beyond recommended maximum withstand pressure,
permanent damage to the pressure gauge may occur.
Do not drop, hit or allow excessive shock. Even if pressure gauge
3
body appears undamaged, internal components may be broken
and can cause malfunction.
Do not use in environment containing steam or oil vapor.
4
This product is not explosion-proof rated. Do not use in
5
atmosphere containing flammable or explosive gases.
Using filter can extend pressure gauge's service life.
6
A.
SPECIFICATIONS
TYPE
Rated pressure range
Display pressure range
Withstand pressure
Applicable fluid
kPa
MPa
k gf/cm
2
Pressure
resolution
b ar
p si
mmHg
Battery
Back light
Battery life
Low-power indicator
Battery replaceable
Turn-on interval
Sampling rate
Pressure unit
Repeatability
Display
Indicator accuracy
Enclosure
Ambient temp. range
Environment
Ambient humidity range
Vibration
Shock
Temperature characteristic
Port size
Weight
*
Air tube must be installed to maintain IP65. (See section K)
B.

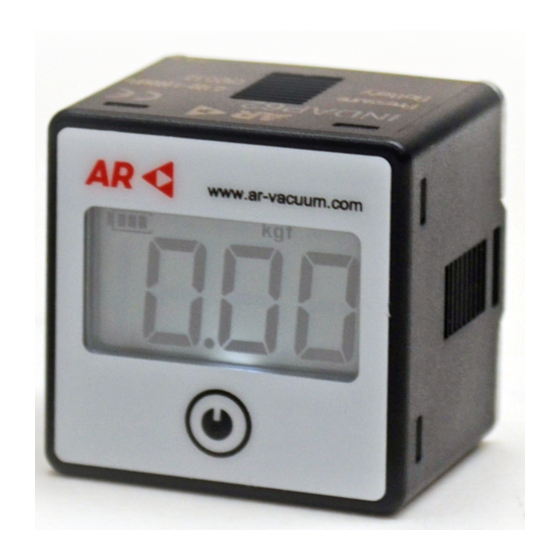

PANEL DESCRIPTION
Pressure Unit
Display Section
Battery Meter
Pressure Display
Setting Button
PR-0467C 2022/03 Printing We reserve the right to change the specification without prior notice.
INDAP62
(Positive)
INDAP62
0.000 ~ 1.000MPa
-0.100 ~ 1.000MPa
1.5MPa
Filtered air, incombustible and non-corrosive gases
-
0.001
0.01
0.01
0.1
-
CR 2032 lithium
Yes
1 years (5 times/day)
Yes
Yes
Display turn off after 60 sec.
2 Hz (2 times/sec.)
psi, bar, kgf/cm and MPa user selectable
2
±0.2% F.S. ±1digit
3 ½ digital, 7 segment LCD display ( Black )
±2% F.S. ±1 digit (ambient temperature: 25 ±3 °C)
IP65*
Operation: 0 ~ 50 ºC, storage: -10 ~ 60 ºC
( No condensation or freezing)
Operation/Storage: 35 ~ 85% RH ( No condensation)
Total amplitude 1.5mm or 10G, 10Hz-55Hz-10Hz scan
for 1 minute, two hours each direction of X, Y and Z
100m/s (10G), 3 times each in direction of X, Y and Z
2
±2% F.S. of detected pressure (25°C)
at temp. range of 0~50°C
G1/8"(BSPP), M5
Approx. 40g
www.ar-vacuum.com
psi bar kgf MPa
C.
DIMENSIONS
9
6
15.5
22.5
30
www.ar-vacuum.com
30
Unit:mm
D.
BATTERY STATUS / INSTALLATION
FOLLOW THE STEPS BELOW
● Using a flat screwdriver size 1.4 ~ 3.0 mm insert into the back of the
pressure gauge as pictured. (See figure
● Turn the screwdriver horizontally 90° t o separate the case and the base.
Repeat this process again for the other side. (See figure
● Carefully remove the outer cover (See figure
below to replace battery and reassembly. Polarity must be observed,
incorrect battery installation will cause malfunction.
1 2
w w
w .a
r- v
a c
u u
m .c
o m
4 5
w w
w .a
r- v
a c
u u
m .c
o m
2mm MAX
Ø
7 8
w w
w .a
r- v
a c
u u
m .c
o m
20
20
37
21.8
G1/8"(BSPP), M5
)
2
)
3
), and follow the diagrams
4
3
"+"
6
"-"
w w
w .a
r- v
a c
u u
m .c
o m
