Related Manuals for Soundstream PICASSO NANO PN4.320D
Summary of Contents for Soundstream PICASSO NANO PN4.320D
- Page 1 PN4.320D PN4.520D PN1.450D PN1.650D...
-
Page 2: Power Ratings

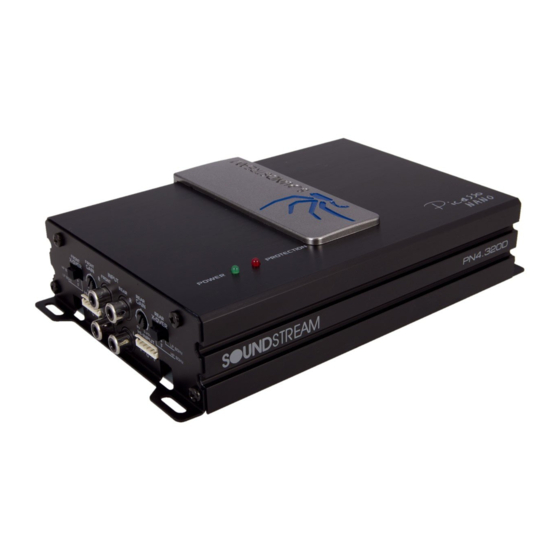

4 Channel PN4.320D & PN4.520D Monoblock PN1.450D & PN1.650D • Full MOSFET PWM Power Supply • Full MOSFET PWM Power Supply • SMD Technology on Double Sided PCB • SMD Technology on Double Sided PCB • 8ga Power Terminals & 12ga Speaker Outputs •... - Page 3 Warning Soundstream highly recommends that an in-line fuse or circuit breaker be installed within 18” of the battery. Although your Picasso Nano amplifier has adequate internal protection, it is possible a damaged wire between the component and the battery may result in a fire. The in-line fuse or circuit breaker should be installed in a...
-
Page 4: High Level Input Connections
High Level input connections The high level inputs are for use with speaker level wiring. Most factory source units do not have RCA outputs. Use this connection if your source unit does not have RCA outputs. CAUTION: Never use the high and low level inputs at the same time! - Page 5 Picasso Nano Pre-Amp Features 1. Remote Level Control Connection 5. Level Sensitivity Connect the remote level control to this Adjust the amplifers pre-amp sensitivity terminal. The remote level control allows level. The minimum sensitivity level is adjustment of the subwoofer level from a 250mv, while the maximum level is 6V.
- Page 6 Setting the gains: It is a fact that very few people, including professional installers, know how to set gains correctly. Failure to do so yields higher distortion, a higher noise floor which decreases dynamic headroom, less than optimum operating conditions for electronic equipment, and higher failure rate for both the electronic equipment and transducers alike.
- Page 7 Investigate the layout of your vehicle before drilling or cutting any holes. Take care when you are working near the gas tank, brake lines, hydrau- lic lines, and electrical wiring. Do not use the amplifier without securly mounting it, as the amp or vehicle may be damaged in the event of an accident.
- Page 8 Soundstream. Unit must be returned to Soundstream , postage pre-paid, with bill of sale or other dated proof of purchase bearing the following information: consumer's name, telephone number, and address, authorized dealer's name and address, and product description.
