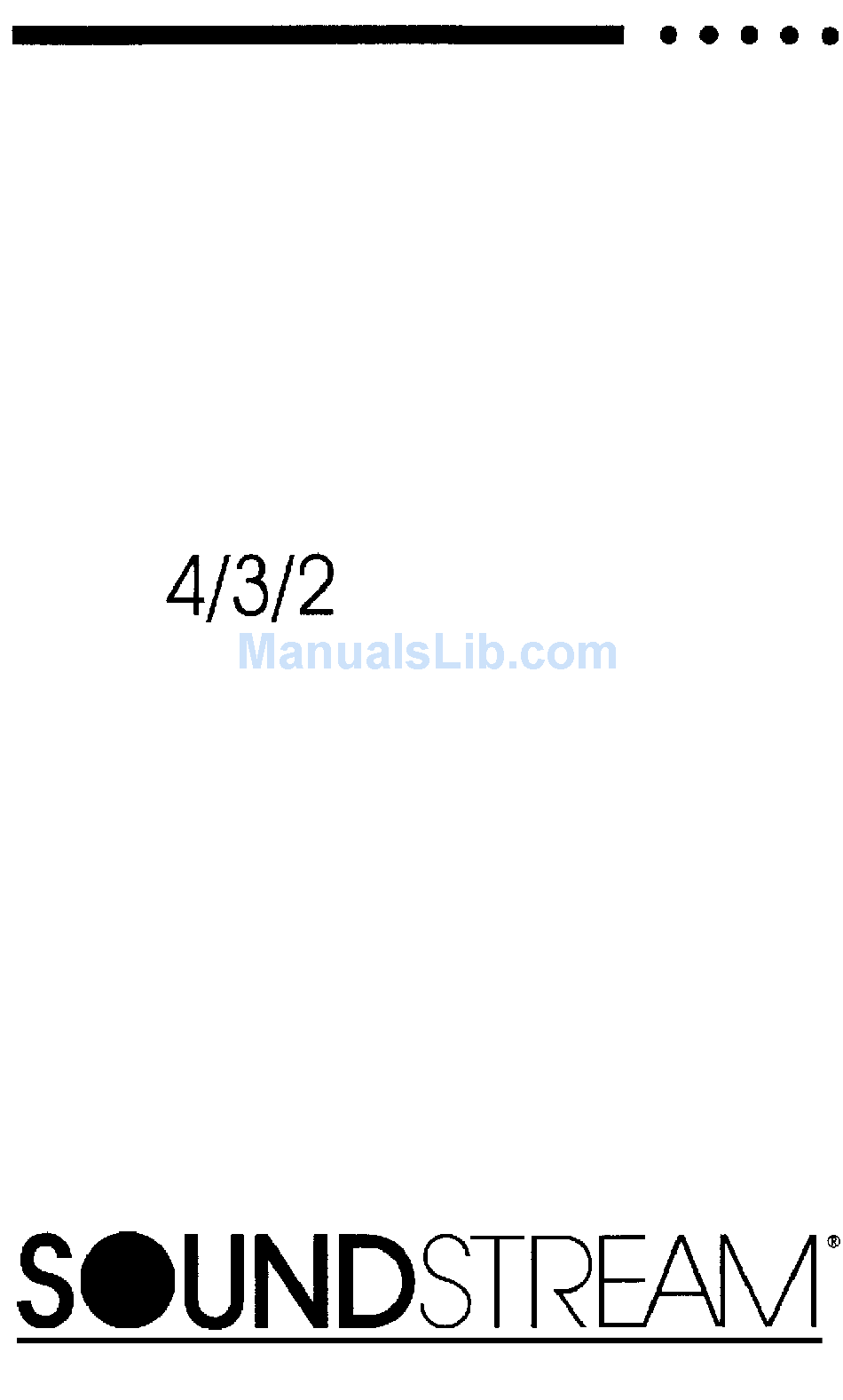

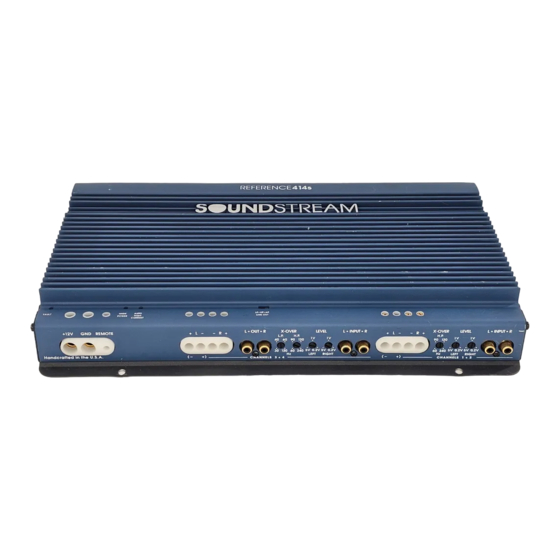

- Page 1 REFERENCE 414s 644s 4/3/2 Channel Power Amplifiers OWNER’S MANUAL INSTALLATION GUIDE SOUNDSTREAM...
-
Page 2: Table Of Contents
om*o CONGRA TULA TIONS! YOU now own a REFERENCE Amplifier, the product of an uncompromising design and engineering philosophy. Your Soundstream REFERENCE amplifier will outperform any other amplifier in the world. To maximize the performance of your system, we recommend that you thoroughly acquaint yourself with its capabilities and features. -
Page 3: Design Features
DESIGN FEATURES Uncompromising Design and Construction including mil-spec glass epoxy circuit boards and high current custom gold-plated solid brass connections that will accept up to 4 gauge power/ground wire. Auto High CurrentTM - Soundstream’s exclusive circuit which customizes your amplifier to its particular automatically application-High Current, low impedance loads (multiple subwoofers. - Page 6 o0.a AUTO HIGH CURRENTTM POWER SUPPLY The REFERENCE amplifier employs an extremely efficient power supply (patent pending). This power supply circuitry automatically customizes your amplifier for optimum efficiency and power output into virtually any impedance load. When other brand amplifiers are driven at low impedances less).
-
Page 7: Balanced / Unbalanced Input (Reference644S)
l INSTALLATION STEP 2 b BALANCED/UNBALANCED INPUT The REFERENCE6445 amplifier has the ability to accept either standard Unbalanced RCA signal inputs, or Balanced “Pro Audio” inputs with the use of the Soundstream BLTTH or BLT4N Balanced Line Transmitters or some other balanced line audio source. -
Page 8: Wiring & Wiring Diagram
(Continued From page 13) INTERNAL The REFERENCE amplifiers are fused with automotive-type fuses. In the event of blown powersupplyfuses, the “FaulY’indicator on the top panel will light. The fuses are accessible via a plastic plug on the bottom of the amplifier. See the chart below to determine the fuse value. -
Page 9: Level Setting (Reference414S)
.( INSTALLATION STEP 5 L LEVEL SETTING The input levels are adjusted by means of the individual channel input level controls located on the front of the amplifier. This is a unique dual-stage circuit that adjusts both level and gain. This topology maintains better Signal-to-Noise ratios even when using sources with minimal output. -
Page 10: Crossover Adjustments
/ INSTALLATION STEP 6 k CROSSOVER ADJUSTMENTS The REFERENCE644s and REFERENCE414s amplifiers incorporate an on- board staggered electronic crossover. They also have RCA outputs to drive an external amplifier. No external electronic crossover is necessary. The high and low pass portions of the crossover can be set independently of one another. In most car audio installations, there is a tendency for a “midbass boom.”... -
Page 14: Troubleshooting
oaao TROUBLESHOOTING PROBLEM No sound and power LED & 1 No power or ground at amp noJ lit 1 No remote turn-on signal Blown fuse near battery No sound, power LED Is lit, and 1 No signal input the AIRBASSTM option has not The A/RBASSTM switch is in the “IN”...
