GPX DH300B User Manual

DVD PLAYER
User's Guide for Model No. DH300B v745-03
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. When the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
FCC Warnings
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FEATURES & CONTROLS
Power
Plug the attached AC cord into a standard AC power outlet to power the DVD player.
Remote
Power
Number Keypad
Angle
Menu
Press to access the
main menu on a
loaded DVD.
Title
MENU
Volume
Stop
Video
TITLE
Press to switch
between Composite
or S-video.
OSD
VOLUME
L/R
Search
VIDEO
N/P
L/R
Press to switch
between
NTSC and PAL.
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain,
moisture, dripping, or splashing.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified
may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or
sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining
where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass
between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of
the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as
it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in
the unit. Only use rechargeable NiMH batteries.
• WARNING: Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled
or disposed of according to state and local guidelines. They should never be disposed of in normal
household waste, and they should never be incinerated, as they might explode. Contact your local
government for disposal or recycling practices in your area.
• WARNING: Shock hazard - Do Not Open.
Objects filled with liquids, such as vases, shall not be placed on the apparatus.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
Caution marking is located at the rear or bottom of the apparatus.
• Mains plug is used as disconnect device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains completely, the mains plug should be
disconnected form the mains socket outlet completely.
Keep new and used batteries away from children. If the battery compartment does
not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
• WARNING: This product may contain chemicals known to the State of California to cause birth
defects, or other reproductive harm (California Prop 65). Wash hands after handling.
• This product meets and complies with all Federal regulations.
COAXIAL
R
120V ~ 60Hz
L
VIDEO S-VIDEO
HDMI OUTPUT AUDIO OUT VIDEO OUT
Open/Close
OPEN/CLOSE
Mute
MUTE
Audio
AUDIO
Go To
GOTO
Prog
Setup
ANGLE PROG
Press to access the
setup menu.
SETUP
Arrows/Enter
ENTER
Subtitle
SUBTITLE
Skip
Play/Pause
Zoom
Repeat
Wide
OSD WIDE ZOOM
Slow
N/P SLOW REPEAT
Step
STEP A-B
A-B
Press to create a
repeating loop on
specified section
of a loaded DVD.
WARNING: DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
Remote
Requires 2 AAA batteries (not included).

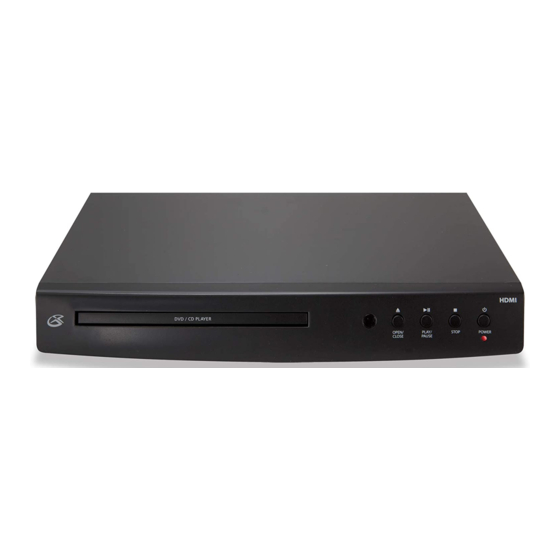

Front
Disc Drawer
DVD / CD PLAYER
Rear
Coaxial Digital Audio
COAXIAL
R
120V ~ 60Hz
L
VIDEO S-VIDEO
HDMI OUTPUT AUDIO OUT VIDEO OUT
HDMI Output
Warning: To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to qualified service
personnel.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This symbol indicates that this product incorporates double insulation
between hazardous mains voltage and user accessible parts.
This product utilizes a Class 1 laser to read Compact Discs. This laser
Compact Disc Player is equipped with safety switches to avoid exposure
when the CD door is open and the safety interlocks are defeated. Invisible
laser radiation is present when the CD Player's lid is open and the system's
interlock has failed or been defeated. It is very important that you avoid
direct exposure to the laser beam at all times. Please do not attempt to defeat
or bypass the safety switches.
Stop
OPEN/ PLAY/
CLOSE PAUSE
Open/Close
S-Video Output
Output
RCA Stereo Composite
Audio Outputs Video Output
Power
HDMI
STOP POWER
Play/
Pause
