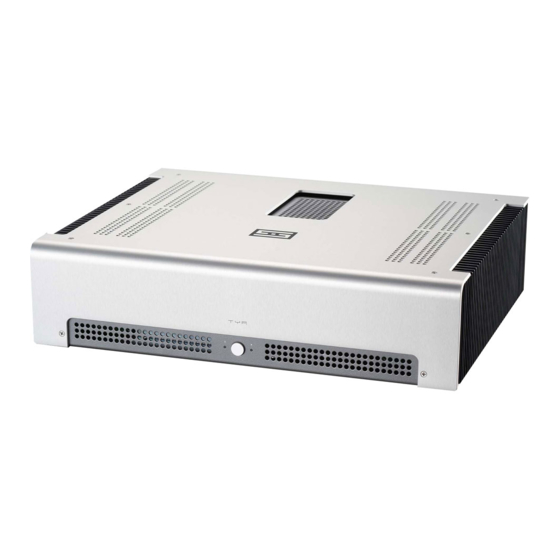

TYR
CHOKE-INPUT NEXUS AND CONTINUITY
MONOBLOCK AMPLIFIER
IN NORSE MYTHOLOGY, TYR WAS THE GOD OF WAR AND JUSTICE.
HE WAS ALSO ONE-ARMED BECAUSE HE WAS TRYING TO BE COOL
WITH FENRIR AND THE OTHER GODS PLAYED A TRICK ON HIM.
IN OUR SIMPLE MINDS, ONE-ARMED = MONOBLOCK.
YEAH. THAT'S WHERE COMICS GET YOU.
OWNER'S MANUAL
TM
TM
Advertisement
Table of Contents
Related Manuals for Schiit TYR
Summary of Contents for Schiit TYR
- Page 1 CHOKE-INPUT NEXUS AND CONTINUITY MONOBLOCK AMPLIFIER IN NORSE MYTHOLOGY, TYR WAS THE GOD OF WAR AND JUSTICE. HE WAS ALSO ONE-ARMED BECAUSE HE WAS TRYING TO BE COOL WITH FENRIR AND THE OTHER GODS PLAYED A TRICK ON HIM. IN OUR SIMPLE MINDS, ONE-ARMED = MONOBLOCK.
- Page 2 INTRODUCTION Tyr is a choke-input monoblock amplifier featur- The following is required by the roughly 9,542 ing our Nexus™ differential topology and Conti- government agencies and regulations we have to comply with. If you have some common sense, they nuity™ constant-transconductance output stage.
- Page 3 • Ensure there’s plenty of ventilation around amplifier, which means both speaker terminals each Tyr are “hot.” This also means you can’t use Tyr with • If you’re putting Tyrs in a cabinet, ensure at speakers that have a common ground between least 2”...
- Page 4 CONNECTIONS ASSEMBLED IN USA SCHIIT.COM, VALENCIA CA NEXUS + CONTINUITY INDUCTOR INPUT SUPPLY POWER AMPLIFIER SCH-09K 0A19C2832 115VAC 450W 1 & 2 Speaker Outputs. Connect a speaker to 5 XLR Input. Connect one channel of a balanced these outputs. The right output is positive, and source using a high-quality XLR cable.
- Page 5 OPERATION 3 Operate Light. When this light is on, Tyr is 1 Standby Light. When this light is on, Tyr is in Operate mode and working optimally (that in Standby mode—the amp is muted and the is, it will play music when fed a musical signal output stage is de-biased.
- Page 6 1. Over-temperature (left, Standby light flash- shorted, or if you are running into an especially ing). The heatsinks are too hot, and Tyr has demanding speaker load, Tyr may go into over- muted so it can cool down. Turn off the amp, current protection.
- Page 7 Any implied warranties, including warranties of merchantability and fitness for a particular purpose, are hereby limited in duration to the warranty period of 5 years. In no event shall Schiit Audio be liable for consequential or incidental damages resulting from the breach of any implied or expressed warranties.
