Section 2. System Description

The cell must be installed horizontally as the last piece of equipment
in the circulation plumbing system just before the pool.
Power Center

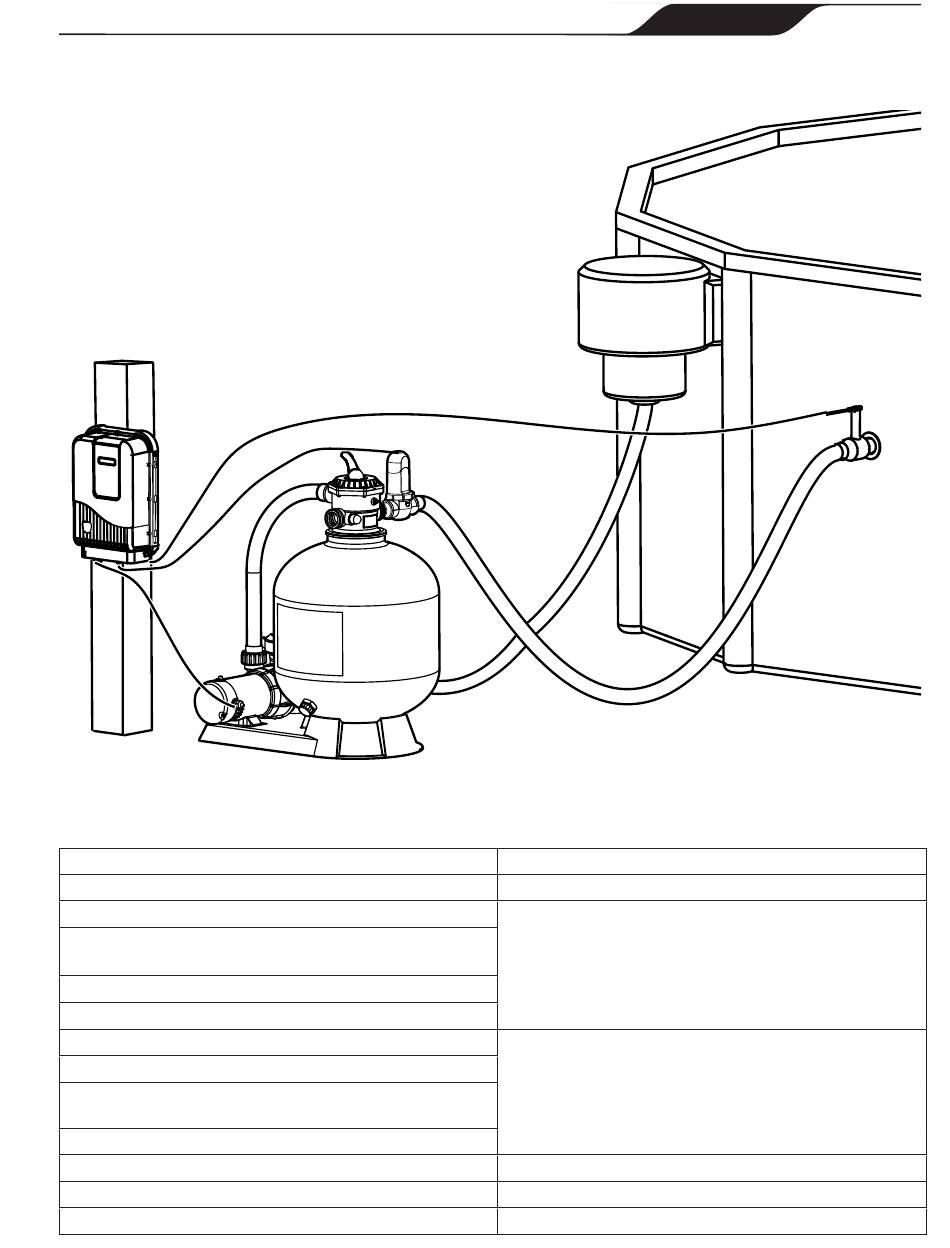

Figure 1. Example of Installation

2.1 Product Specifications

Maximum Operating Pressure: 35 psi
Minimum Flow Rate: 40 gpm (152 lpm)
Maximum Flow Rate: 92 gpm (348 lpm)
Maximum water volume treated:
20,000 gal (75,000 Liters)
Chlorine Output: 0.93 lbs. (0.42 kg) per day
Required Salt Level: 3,250 ppm (3.0 gpl)
Input Voltage: 120 V
Input Current @ 120 VAC, 10A max
Input Current @ 120 VAC: ~ 2.5A
switch connected)
Input Freq: 60 Hz
Power Cord Length
Cell Cord Length
Flowswitch Cord Length
|
Installation and Operation Manual
Cell
(pump connected)
(salt cell and flow
ENGLISH
Output Voltage: 28V DC (max)
Output Current: 8A DC
Dimensions:
Power Pack (L x W x H):
10 in. x 4.5 in. x 13 in. (25.4 cm x 11.4 cm x 33 cm)
Electrolytic Cell (L x W x H):
6.5 in. x 5.5 in. x 12 in. (16.5 cm x 14 cm x 30.5 cm)
Weight:
Power Pack: 7 lbs. (3.2 kg)
Electrolytic Cell: 2 lbs. (0.9 kg)
3 ft
7.38 ft
9.8 ft
Page 7
Flow
Switch
Flow Switch
