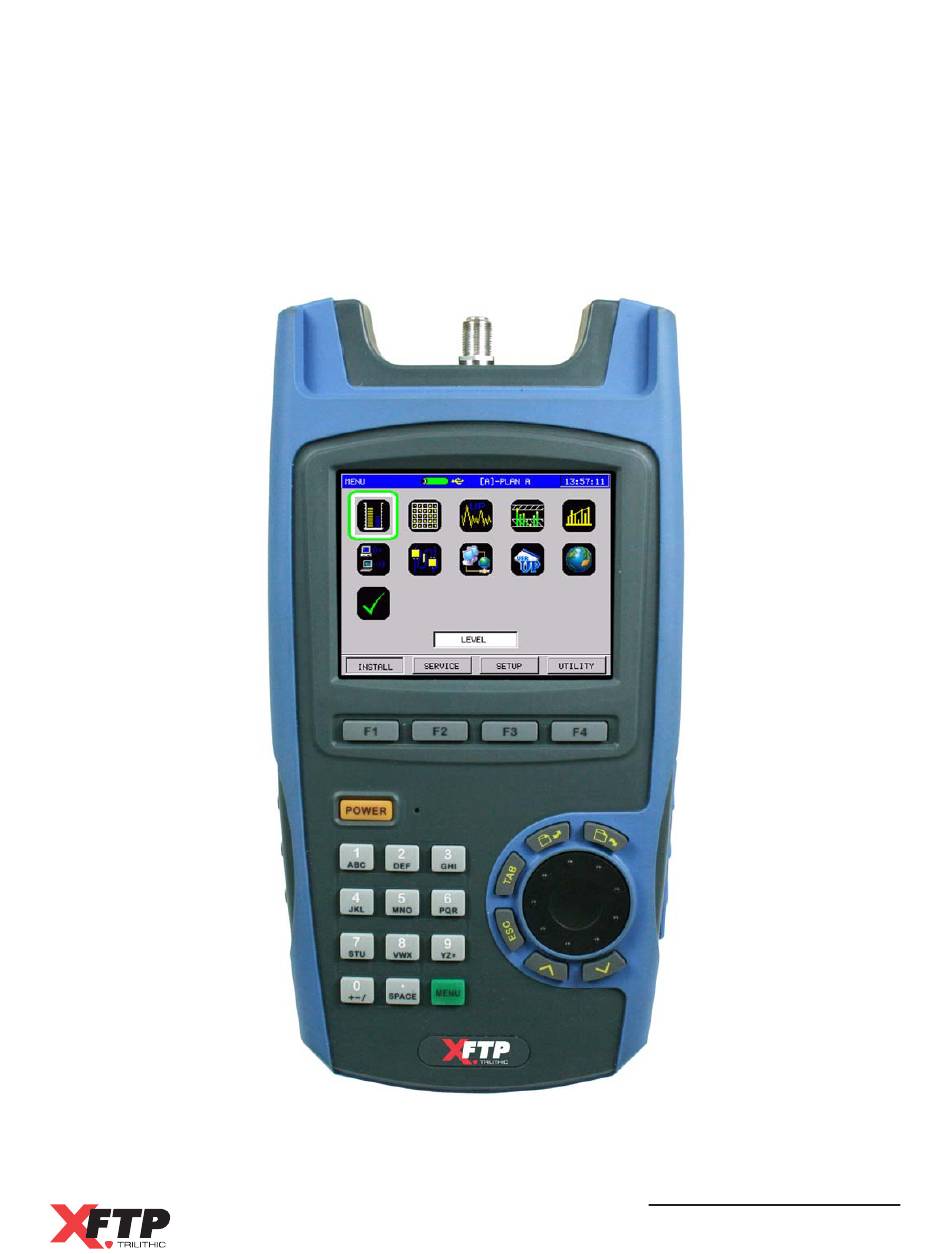

Page 1: Section I: The Basics
TPNA-1000™ Triple Play Network Analyzer Section I: The Basics TPNA-1000 - Section I: The Basics... - Page 2 THIS PAGE LEFT INTENTIONALLY BLANK TPNA-1000 - Section I: The Basics...
-
Page 3: General Information
Your name and your company name • The technical point of contact (name, phone number, e-mail) • The TPNA-1000 serial number, firmware and hardware version numbers • A detailed description of the problem you are having, including any error or information messages... -
Page 4: How This Manual Is Organized
How this Manual is Organized Thank you for choosing the TPNA-1000. This manual is provided with the TPNA-1000 to help the user become better acquainted with the device and to become productive faster. This manual is divided into the following sections: •... -
Page 5: Conventions Used In This Manual
A CAUTION alerts you to any condition that could cause a mechanical failure or potential loss of data. A WARNING alerts you to any condition that could cause personal injury. TPNA-1000 - Section I: The Basics... - Page 6 The date format for the month, day, and year should be set before files are saved in the TPNA-1000. If the date format is changed after files have been stored, the date information for those files will not be correct.
- Page 7 Chapter 2 Introduction What is the TPNA-1000? The Trilithic TPNA-1000™ Triple Play Network Analyzer is a light weight, hand held, high performance instrument; that is developed for digital and analog Cable TV (CATV) signal analysis. The TPNA-1000 can measure and display:...
- Page 8 Marker functions. Level Test The TPNA-1000 tests signal levels in Analog TV, QAM, and Single Frequency Modes. The meter measures Video Level, Audio Level, % V/A, Peak-Hold Level, and % Peak–Peak values. When using the Single-Channel Spectrum function, additional details relative to the specific measurements can be viewed.
-
Page 9: Autotest Programs
Limit Test The TPNA-1000 can perform a complete test of all the Analog channels in the User Channel Plan and compare their values to specified limits. The limits can be set by the user for each channel. Detailed channel information is displayed at the conclusion of each test. -
Page 10: Intelligent Power Management
Files may be saved to a PC or other storage device for viewing and analysis. Intelligent Power Management With a fully charged battery, the TPNA-1000 provides battery power for over six hours. A power supply monitoring system automatically monitors the charge status of the battery and places the unit in the Power Saving Mode whenever possible. - Page 11 Accessories and Replacement Parts for Your TPNA-1000 The following accessories and replacement parts are available for the TPNA-1000: Part Number Description 2131501000 Protective carrying case with strap 0930171000 TPNAworx application software 0090060000 Replacement battery 0610190000 Replacement charger For more information, please contact Trilithic at www.trilithic.com...
- Page 12 THIS PAGE LEFT INTENTIONALLY BLANK TPNA-1000 - Section I: The Basics 1.12...
-

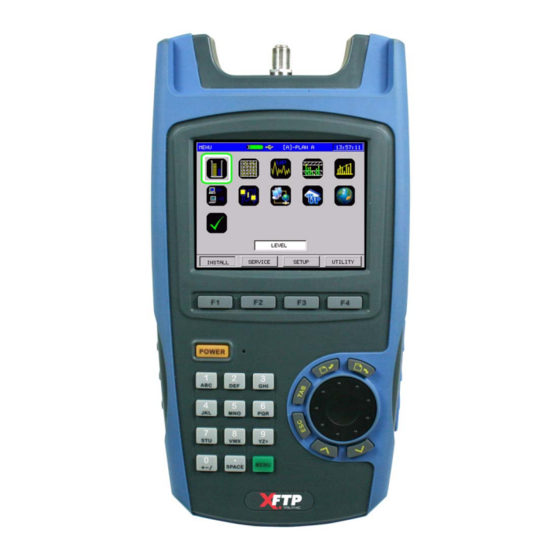

Page 13: Front View
Chapter 3 Getting to Know Your TPNA-1000 Now that you have your TPNA-1000 out of its box, take a few moments to look it over and become familiar with its controls. The thin protective film layer used to protect the display during shipping should be removed. -
Page 14: Right Side View
Right Side View The TPNA-1000 has a power input, LAN and USB port located on the right side of the instrument under a protective rubber cover. Using the TPNAworx application software, the unit can remotely connect to the internet and allow the user to make changes... -
Page 15: Battery Charging
Battery Charging The TPNA-1000 has a built-in 14.8 V / 2.1 AH Lithium battery. When fully charged, it can typically be used for six hours. When the battery charge drops below 13.5 V, the battery symbol flashes in the display screen. If the charge drops below 13 V, the TPNA-1000 shuts off automatically to protect the battery. -
Page 16: The Display Screen
Main Display Area Soft Key Labels A navigation menu is always displayed when the instrument is first turned on. By default, the instrument displays the INSTALL Navigation Menu with the Level icon highlighted. TPNA-1000 - Section I: The Basics 1.16... -
Page 17: Title Bar
Most windows utilize from one to four of the soft keys which can be used for taking readings, adjusting parameters and other operations. For example: INSTALL, SERVICE, SETUP, UTILITY, etc. TPNA-1000 - Section I: The Basics 1.17... - Page 18 THIS PAGE LEFT INTENTIONALLY BLANK TPNA-1000 - Section I: The Basics 1.18...
-
Page 19: Basic Navigation
The instrument will briefly display the introduction screen before displaying the INSTALL Navigation Menu. To return to the last viewed Navigation Menu from any measurement screen, simply press the button on the keypad. MENU MENU TPNA-1000 - Section I: The Basics 1.19... -
Page 20: Scroll Wheel
Short Cut Buttons Use the (Up Arrow) and (Down Arrow) buttons to navigate between the menu icons. With the desired menu icon highlighted, press the center of the Scroll Wheel to select the menu icon. TPNA-1000 - Section I: The Basics 1.20... -
Page 21: Using Soft Keys
On some screens the soft keys are also used to access additional menus, additional information (such as channel plans) or quick access to other functions. TPNA-1000 - Section I: The Basics 1.21... -
Page 22: Using The Short Cut Buttons
Turn the Scroll Wheel counterclockwise (backspace) to SPACE SPACE remove unwanted characters or digits. When the input is finished, press the center of the Scroll Wheel to confirm your entry. TPNA-1000 - Section I: The Basics 1.22... -
Page 23: Initial Setup
Edit a Channel Plan - Section II: Setup & Utility Functions, Chapter 2: Setup, Channel Settings, Edit User Channel Plans. • Configure a Cable Modem and Network Connection - Section II: Setup & Utility Functions, Chapter 2: Setup, General Settings, Network Settings. TPNA-1000 - Section I: The Basics 1.23... - Page 24 THIS PAGE LEFT INTENTIONALLY BLANK TPNA-1000 - Section I: The Basics 1.24...
