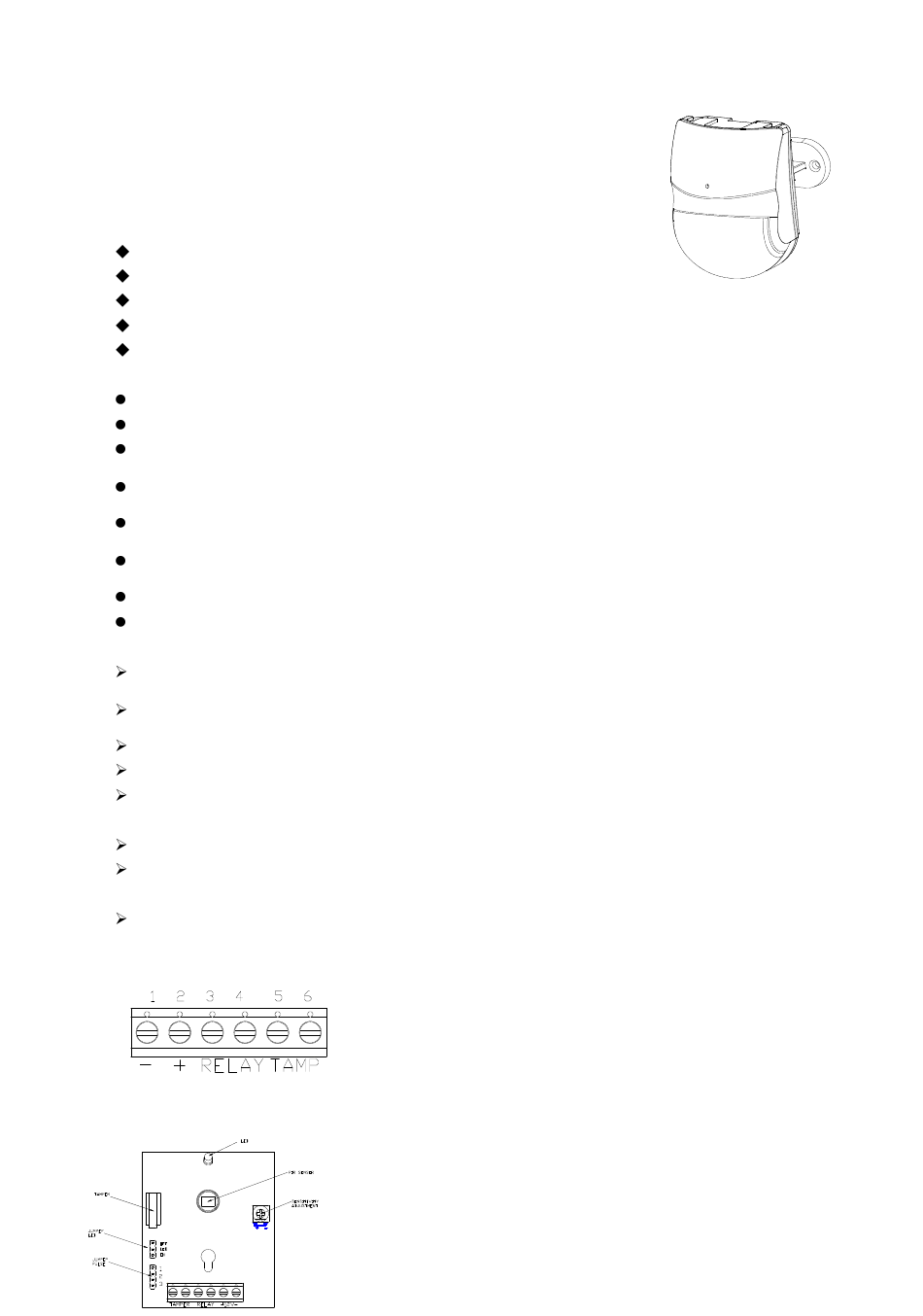

ACDC Dynamics FL-AC03 Using Instruction

Passive infrared detector using instruction

INTRODUCTION

The product is a new type of sensor switch; it adopts infrared
energy detector, IC and SMD technology. When one enters the
product's detecting range, the infrared sensor work and output signal
to its matched control unit, the control unit will alarm.

FEATURES

selectable pulse width;
high interference immune;
tamper switch;
preventing pet design;
installation flexible and convenient;

SPECIFICATIONS

power supply:8~16VDC
warm-up time:30s
alarm time:2s
sense degree:140
°
sense distance:8m(max)
working temperature:-10
relative humidity:<93%RH
installation height:1.5~3.5 m

MOUNTING

Untangle the end screw and open the front cover;
loosen the screw fixing PCB
remove PCB to the end surface, and take out PCB;
bore crossing-line holes on the back cover;
run the wire along the wire slot located on the backside of the back cover and insert
it through its prepared hole.
Fix the back cover on the selected position;
connect power and signal wire to the terminal block according to following diagram,
replace the PCB into back cover.; Set vertical adjustment and tighten the PCB screw;
close the front cover and tighten the screw.

CONNECTION-WIRE

the signal wire is connected directly, when the front cover is opened, the connection is cut
~ +40
℃ ℃
；
Terminal 1 connect to negative voltage "-"
Terminal 2 connect to positive voltage " +"
Terminal 5&6 tamper signal wire
—
Connect with controlling unit
down and give
one signal to controlling unit.
Terminal 3&4 RELAY
—
when close the front cover,
，
