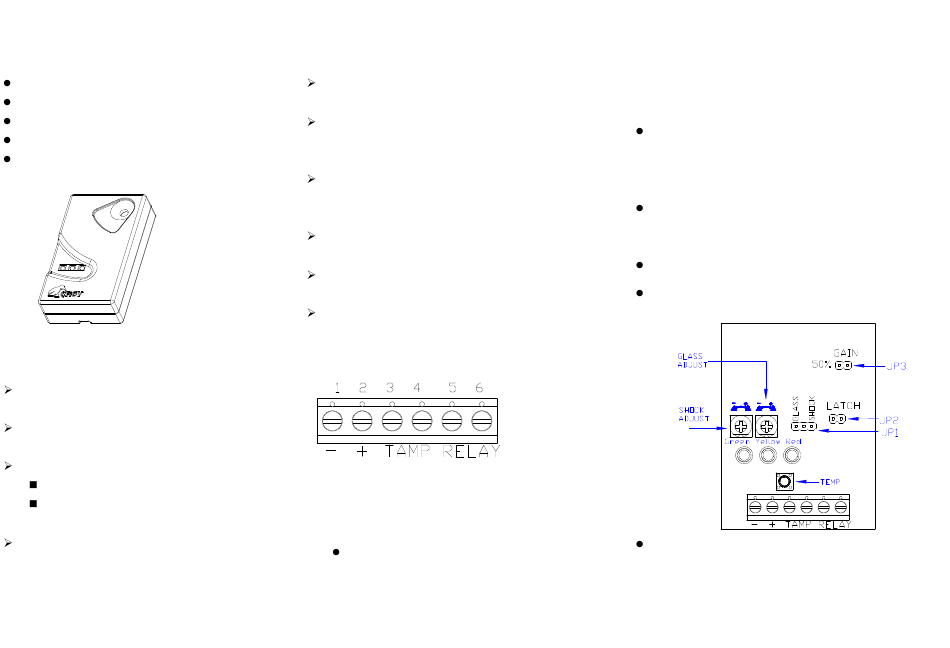

GLASS BREAK DETECTOR
INSTRUCTION

FEATURE:

Double detecting method
SMD technology
Pulse width adjustable
Sensitivity adjustable
convenient mounting
MOUTING THE DETECTOR
1. SELECT LOCATION
Choose a location in front of the protected
glass area.
Make sure that the detector's field of view is
not blocked by any object.
Avoid installation in the following locations:
Areas with substantial air current.
Areas
with
high
audio
vibrations.
Detector's detection range may be
decreased in a place with acoustically
absorbing material.
2. MOUNTING
Determine mounting position and cable
routing.
Open the front cover by pressing the clip
located on the mid-right side with a
screwdriver, and pull it upward.
Run the cable along the cable-duct located
on the backside of the rear cover and insert
it through its prepared hole.
Mount the rear cover to the wall/corner as
determined previously.
Connect the wires to the terminal block
(according to the terminal block diagram.)
Close the detector case.
the terminal block located on the PCB.(like following
fig.)
1.
replace the front cover until the closing click is
noise
or
heard.

Terminal output

Terminal 3&4
m arked "TAMPER"
If a tamper function is required, connect these
terminals to the control unit. When the front cover
of the detector is opened, an immediate alarm
signal will be sent to the
control unit.
Terminal 5&6
m arked "RELAY"
These are the output terminal contacts of the
detector.
Terminal 1
-
Connect to the negative polarity
Terminal 2
+
Connect to the positive polarity
