CONTROL PANEL FOR
SLIDING GATES
Q81S

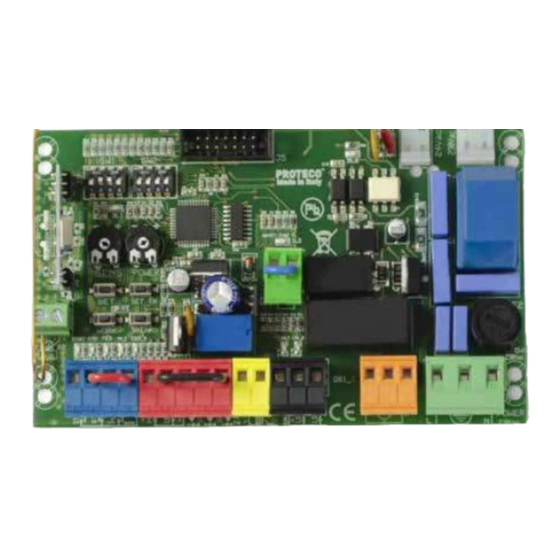

Control panel for 230V ac sliding gates operators
•
Automatic programming mode with obstacle detection
•
Sequential programming mode: adjustable force, slow down, working time per single motor
•
Immediate closing
•
Pedestrian opening
•
Multi-occupation feature
•
Second radio channel interface (optional)
•
Output for electrolock connection
•
Hammer action and lock pulse function
•
Built-in radio receiver 433,92 MHz (32 codes) suitable for fixed or rolling code transmitters
•
Input for 8K2 resistive safety edge
•
Self diagnosis of malfunctions by LED coding
TECHNICAL FEATURES
Item code
Pcb's dimensions
Pcb's weight
Main power supply
Power supply tolerance
Transformer
Main fuse
Rated power
Max. power draw
Power draw in stand-by
Blinker
Accessories
Accessories
Protection rating
Instructions Manual
PQ81S
137 x 84 x 37 mm
160 g
230V, 50-60Hz
-10% +20%
230/21Vac – 15VA
5 A
600 W
3,5 A
30 mA
24Vac, max 20 W
24Vdc , max 5 W
-20 +50 °C
IP55
230V ac
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Euromatic Q81S
Summary of Contents for Euromatic Q81S

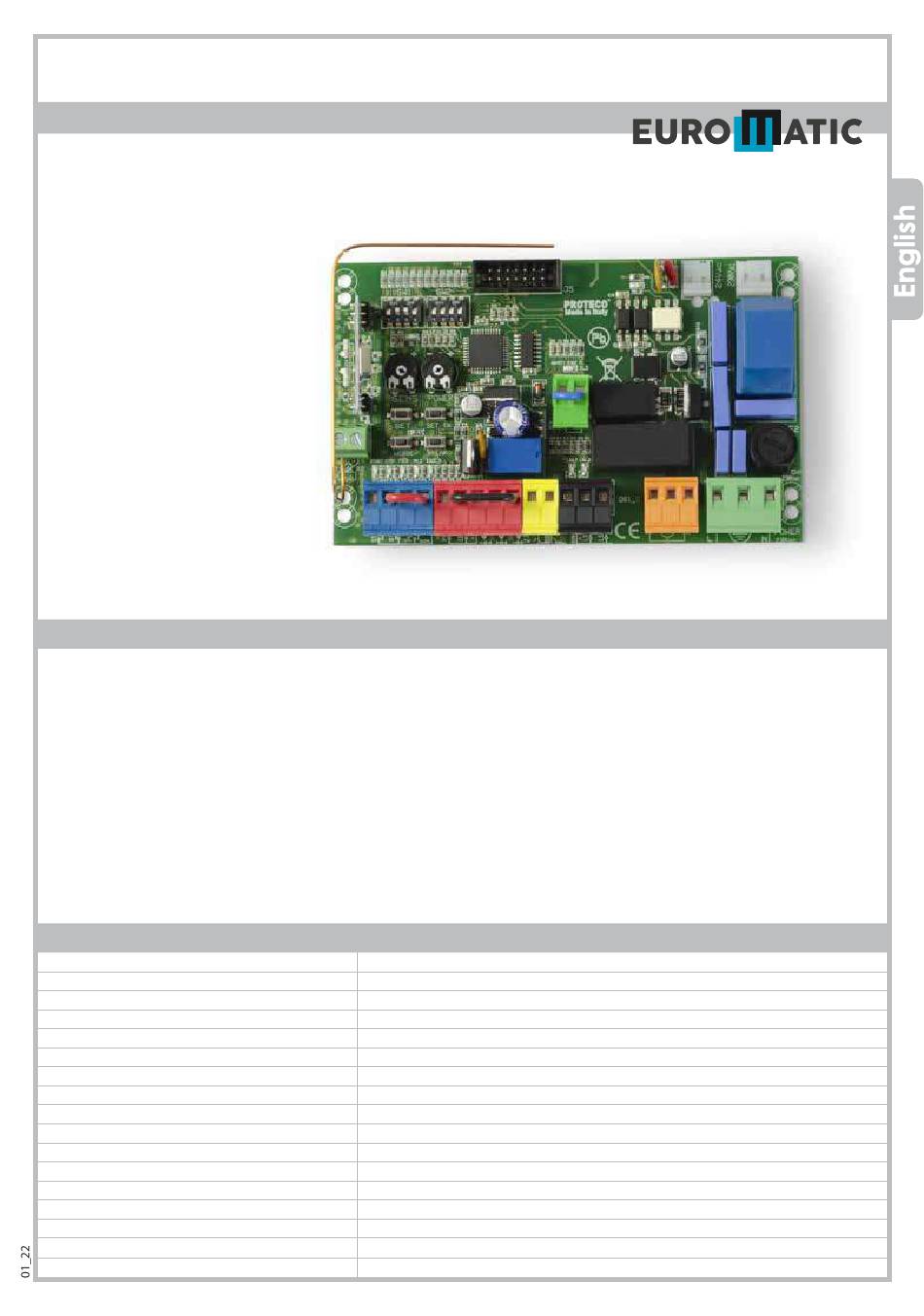

- Page 1 CONTROL PANEL FOR 230V ac SLIDING GATES Instructions Manual Q81S Control panel for 230V ac sliding gates operators • Automatic programming mode with obstacle detection • Sequential programming mode: adjustable force, slow down, working time per single motor • Immediate closing •...
-
Page 2: Table Of Contents
Contents SAFETY INSTRUCTIONS AND PRELIMINARY CHECKS ..................pag. 01 DESCRIPTION AND MAIN COMPONENTS ......................pag. 02 ELECTRICAL CONNECTIONS ..........................pag. 03 LIMIT SWITCHES WIRING .......................... pag. 05 MAIN POWER ............................pag. 06 START DEVICES ............................pag. 06 3.3.1 TIMER 3.3.2 KEY-SWITCH PEDESTRIAN OPENING .......................... -
Page 3: Safety Instructions And Preliminary Checks
SAFETY INSTRUCTIONS AND PRELIMINARY CHECKS WARNING! Important instructions for the safety of people, READ CAREFULLY! Save this manual for future consultation. Do not allow children to play with the fixed command devices, or in the gate’s area of operation. Keep any remote control devices (i.e. transmitters) away from the children as well Children are forbidden to carry out cleaning and maintenance unless accom- panied by adults. -
Page 4: Description And Main Components
DESCRIPTION AND MAIN COMPONENTS SENS POWER SET TX 23 24 JP10 WORK BREAK START STOP PED DL10 230Vac 10 11 12 13 14 15 16 17 POWER 230Vac = radio receiver = input second radio channel jack = line fuse 230V 5A = self resettable fuse 24V 1,6A = self resettable fuse 24V 0,6A = varistor secondary... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS 230Vac WIRING Diagram for OPERATORS BLACK N.B.: TRANSFORMER 230V / 21V ALL SAFETY DEVICES MUST BE CONNECTED BEFORE STARTING BLACK PROGRAMMING, OTHERWISE THE CONTROL PANEL SHALL JP10 SENS POWER JP10 SENS POWER SET TX 23 24 23 24 SET TX WORK BREAK... - Page 6 JP1 = GREEN TERMINAL -Aerial connection signal wire earth wire JP2 = RED WIRES - secondary MOLEX card 24V dc JP3 = BLACK WIRES - primary MOLEX card 230V ac JP4 = BLUE TERMINAL – command devices START (N.O. contact) STOP (N.C.
-
Page 7: Limit Switches Wiring
MOTORS wiring Please check motor wirings according to the gate opening direction Gate opening from left to RIGHT (viw from inside courtyard) OUTSIDE The control unit is pre-set for gate opening from left to right (looking from inside the courtyard as shown in the drawing). Right gear motor INSIDE... -
Page 8: Main Power
MAIN POWER The main line must be protected by a proper CIRCUIT BREAKER. Connect the line 230V to 18-19-20, terminal JP9, fulfilling the polarity (18 PHASE – 19 EARTH – 20 NEUTRAL) CIRCUIT BREAKER 230V START DEVICES Wire the START contact (N.O. contact) to 1 – 4, terminal JP4. An additional START contact can be wired in PARALLEL (N.O. -
Page 9: Emergency Stop Button
EMERGENCY STOP BUTTON Wire the STOP BUTTON (N.C. contact) to 2-4, terminal JP4. An additional STOP BUTTON contact can be wired in SERIES (N.C. contact) The EMERGENCY STOP BUTTON is important for the safety of people and objects EMERGENCY STOP BUTTON N.B.: Before wiring any STOP contact remove the jumper between terminal 2 and terminal 4. -
Page 10: Safety Edge
SAFETY EDGE 3.7.1 Mechanical safety edge in CLOSING Mechanical safety edge + photocells in CLOSING Wire the safety edge and the N.C. contact of the Wire the safety edge to 23 - 24, terminal JP10. photocell in series. If the contact is broken during CLOSING, the If the contact is broken during CLOSING, the gate •... -
Page 11: 8K2 Resistive Safety Edge In Opening
3.7.3 8K2 RESISTIVE SAFETY EDGE IN CLOSING SAFETY EDGE PHOTOCELLS CLOSING (cut the power off before proceeding) (cut the power off before proceeding) ATTENTION!: ATTENTION!: PWire the 8K2 safety edge to 23 - 24, terminal JP10. Wire the 8K2 safety edge to 23 - 24, terminal JP10. Press SET + SET TX together and feed the control panel. -
Page 12: Flashing Light
FLASHING LIGHT EWire the flashing light (max 20W) to 10-11, terminal JP6. QUICK blinking → OPEN • SLOW blinking → CLOSE • 10 11 • FIXED light on → PAUSE FLASH 24V ac max 20W HOW TO PLUG THE 2 RADIO CHANNEL JACK ATTENTION!: CUT THE POWER OFF BEFORE PLUGGING THE INTERFACE... -
Page 13: 8K2 Resistive Safety Edge In Closing
DEFAULT SETTINGS LThe control panel is supplied with a DEFAULT SETTINGS: working time, slow down and automatic closing for a standard gate. To reload the DEFAULT SETTINGS: - Press BREAK to cut the power OFF and to turn it ON - Turn SENS to the maximum (+) and POWER to half position BROWSING THE MENU Use SET:... -
Page 14: Operation Mode
OPERATION MODE Choose the operation mode you wish selecting the switches SW1 – SW2. The control panel is supplied with the following default settings. SOFT START MOTOR TEST ACTIVATED PHOTOCELL TEST How to read switch positio: WHITE switch DOWNWARD = Function OFF WHITE switch UPWARD = Function ON ATTENTION:Turn the power off before setting the switches SWITCH SW1... - Page 15 SWITCH SW2 dip n° 1 OFF = = Motor positioned on the RIGHT (Default) ON = Motor positioned on the LEFT dip n° 2 OFF = N.C. contact limit switches(Default) ON = N.O. contact limit switches dip n° 3 OFF = Standard slow down (Default) ON = Soft slow down ACTIVATED dip n°...
-
Page 16: Radio Codes
LOADING RADIO CODESO The control panel DOESN’T ALLOW TO LOAD any remote control if SAFETY DEVICES are DISCONNECTE. Make sure inputs no. 2 STOP (DL5), no. 5 photocell in CLOSING (DL7), no. 6 photocell in OPENING (DL8) and no. 23 SAFETY EDGE IN CLOSING (DL3), are connected. -
Page 17: Programming
PROGRAMMING The control panel is supplied with a SEQUENTIAL PROGRAMMING DEFAULT (obstacle detection excluded) ATTENTION: Before starting PROGRAMMING make sure mechanical ground stops have been properly fitted. AUTOMATIC mode 8.1.1 AUTOMATIC mode with OBSTACLE DETECTION ATTENTION!: Before proceeding to programming, start a functional cycle test to proof the motor’s thrust. The thrust has to be proper to the gate weight no matters if light or heavy gates. -
Page 18: Sequential Mode
SEQUENTIAL MODE 8.2.1 SEQUENTIAL mode WITHOUT Obstacle Detection ATTENTION!: Before proceeding to programming, start a functional cycle test to proof the motors’ thrust. The thrust has to be proper to the gate weight no matters if light or heavy gates. If adjustments are needed, regulate POWER so that the gate doesn’t stop opposing a light contrast pressure. -
Page 19: Trouble Shooting
TROUBLE SHOOTING – ERROR MESSAGES The control panel is designed to display errors through a LED lighting system. Here below the trouble shooting table. Error possible cause Solution • Closing limit switch ACTIVATED Release and open the gate manually, the LED must turn on. •... - Page 20 Manufacturer: PROTECO S.r.l. Address: Via Neive, 77 – 12050 Castagnito (CN) – ITALIA declares that The product type: Q81S electronic controller for sliding gate automa�on (1 motor), 230V Models: Accessories: MRX01 Is built to be integrated into a machine or to be assembled with other machinery to crate a machine under provisions of 2006/42/EC Machinery Direc�ve.
