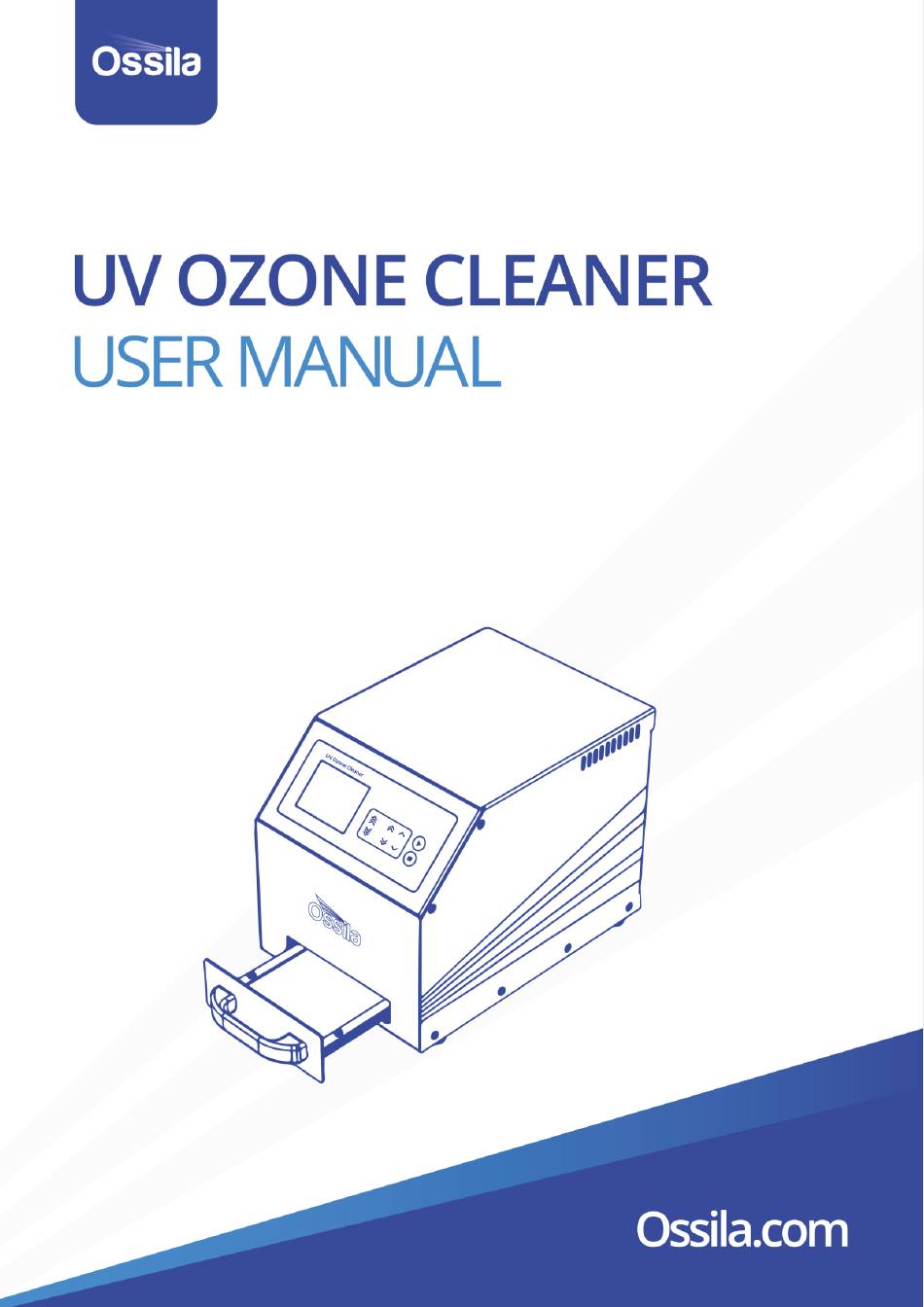

- Page 1 Manual Version: 2.0.I Product code: L2002A2 Product Version: 2.0 Software Version: 2.0...
-
Page 2: Table Of Contents
Contents Overview ..........................3 Applications ..........................3 Contaminants .......................... 3 EU Declaration of Conformity (DoC) ..................4 Safety ............................. 7 Warning ........................... 7 Use of Equipment ........................7 Hazard Icons ..........................7 General Hazards ........................8 Power Cord Safety ........................9 Servicing .......................... -
Page 3: Overview
Å/s. The exact exposure times and methods required to remove various contaminants will vary and should be determined empirically. The Ossila Solar Cell Prototyping Platform is a complementary collection of substrates, materials, and equipment as part of a high-performance standard photovoltaic reference architecture. -
Page 4: Eu Declaration Of Conformity (Doc)
Email Address: info@ossila.com declare that the DoC is issued under our sole responsibility and belongs to the following product: Product: UV Ozone Cleaner (L2002A2) Serial number: L2002A2-xxxx Object of declaration UV Ozone Cleaner (L2002A2) The object of declaration described above is in conformity with the relevant Union... - Page 5 EU-harmoniseringslovgivning, på den/de foregående side(r) i dette dokument. [Deutsch] EU-Konformitätserklärung Hersteller: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL. erklären in alleiniger Verantwortung, dass das aufgeführte Gerät konform der relevanten EU-Harmonisierungsgesetzgebung vorangegangenen Seiten dieses Dokuments ist.
- Page 6 [Slovenščina] Izjava EU o skladnosti Proizvajalec: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL. strani/prejšnjih s polno odgovornostjo izjavlja, da je navedena oprema skladna z veljavno uskladitveno zakonodajo navedeno prejšnji straneh tega dokumenta. [Suomi] EU-vaatimustenm ukaisuusvakuutus Valmistaja: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
-
Page 7: Safety
Mains inlet rated for 230V ± 10%. For 110V mains supplies, use the transformer supplied • Do not cover the ventilation slots • If the lamp breaks, leave the room ventilating for at least 15 minutes and contact Ossila • The unit must be connected to a grounded power outlet 3.2 Use of Equipment The UV Ozone Cleaner is designed to be used as instructed. -
Page 8: General Hazards
Table 3.1 Hazard warning labels used in this manual. Symbol Associated Hazard General warning or caution, which accompanying text will explain Electrical shock Severe injury or death by electrical shock UV radiation Ozone inhalation Explosion 3.4 General Hazards Before installing or operating the UV Ozone Cleaner, there are several health and safety precautions which must be followed and executed to ensure safe installation and operation. -
Page 9: Power Cord Safety
UV Ozone Cleaner. Using an unearthed plug may result in serious injury or death. 3.6 Servicing If servicing is required, please return the unit to Ossila Ltd The warranty will be invalidated if: Modification or service has taken place by anyone other than an Ossila engineer. •... -
Page 10: Health And Safety - Operation
3.9 Health and Safety – Servicing Service or installation work that includes integrating electrical components should only be performed by an Ossila engineer. Never alter the wiring of any purchased equipment. If changes are made, such alterations may damage the equipment, cause injury, or even death. -
Page 11: Unpacking
Examine the components for evidence of shipping damage. If damage has occurred, please contact Ossila directly for further action. The UV lamp is a mercury vapour lamp and the user may be exposed to mercury only if the glass of the lamp is cracked or broken. If this happens, please contact Ossila after abiding by these rules to minimise exposure: 1. -
Page 12: System Components
Table 5.1. UV Ozone Cleaner specifications UV Ozone Cleaner Specifications UV Lamp Synthetic quartz 4in x 4in grid UV lamp UV lamp key wavelengths 185 nm and 254 nm Power supply 230V ± 10 %; 50/60Hz, 50 VA Class of protection Class I Degree of protection IP20... -
Page 13: Installation
Figure 6.2 Main power cord adapter. 7. Installation Place the unit on a solid, level surface inside a fume cupboard. Ensure the area is free from vibrations, temperature extremes and highly flammable or explosive materials. Before plugging in the UV Ozone Cleaner, ensure the power switch on the unit is switched to the ‘0 ’... -
Page 14: Operation
8. Operation 8.1 Overview A top-down view of the UV Ozone Cleaner is shown in Figure 8.1, with all the relevant components highlighted. Figure 8.2 shows the power cord socket, fuse socket, and the power switch. Figure 8.1. Components of the UV Ozone Cleaner. Figure 8.2. -
Page 15: User Interface
8.2 User Interface Figure 8.3 shows the front panel of the UV Ozone Cleaner. The function of each of the keypad buttons is explained in Table 8.1. Figure 8.3. UV Ozone Cleaner LCD screen and keypad. Table 8.1. Operational buttons and their associated functions. Button Function Starts operation for the Set Time programmed... -
Page 16: Practical Operation
8.3 Practical Operation Operate within fume cupboard in a room with suitable air ventilation at all times. 1. Open the tray door. 2. Carefully load your sample to be cleaned onto the tray. The tray surface may become slippery with use of the UV Ozone Cleaner;... - Page 17 1. Turn the UV Ozone Cleaner power switch on (position ‘I’); the bootup screen is shown Figure 8.4. Figure 8.4. Bootup screen. 2. During the bootup time, the user can enter the buzzer setting and temperature reading menu screens for the UV Ozone Cleaner. Press and hold both single-increment second buttons at the same time to see the temperature readings display as in Figure 8.5.
- Page 18 III. To change the buzzer settings, press the single-increment up second button turn the buzzer sound on, or the single-increment down second button turn the buzzer sound off. Figure 8.6. Buzzer settings menu. 3. To exit the Settings page, press the START button to proceed to continue. 4.
- Page 19 Figure 8.8. Set Time screen. 6. Once the timer has been set, press the START button to run the program. The LCD will display the following information (as shown in Figure 8.9). The Elapsed timer will begin and the LED indicator light will switch on. When the Elapsed time matches the Set Time, the one-note buzzer will sound —...
-
Page 20: Operational Safety
8.5 Operational Safety Safety Interlock If the tray is opened while the system is running the program will automatically stop. Turn the lamp OFF and reset the Set Time to 00:00. The display will indicate ‘TRAY OPEN’ (as shown in Figure 8.10). - Page 21 Table 8.2. High temperature warning. Warning Display HIGH TEMP (if tray or electronics is > 50°C) VERY HIGH TEMP (if tray or electronics is > 65°C) Figure 8.11. Temperature error warning.
-
Page 22: Maintenance
There are no user-serviceable parts in this unit except for the fuse which is accessible externally. If the unit is faulty, return it to Ossila Limited. Our service department will promptly quote to repair any faults that occur outside the warranty period. - Page 23 Possible cause Action blown, replace with a suitably rated 1A slow blow fuse d.) Contact Ossila for a replacement transformer e.) If all the above causes have been considered, there may be a fault on the board. Please contact Ossila for information a.) The tray door has not...
