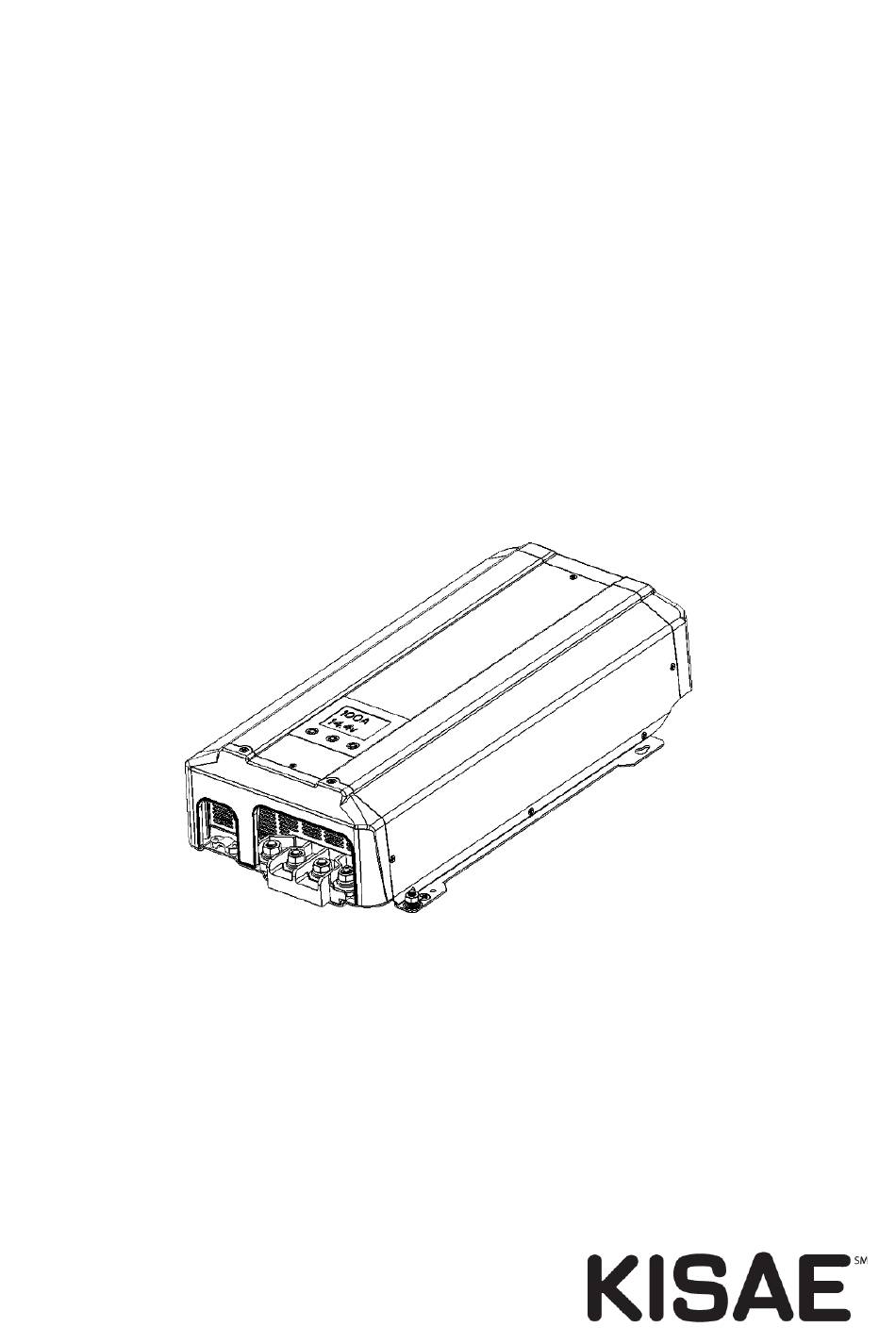

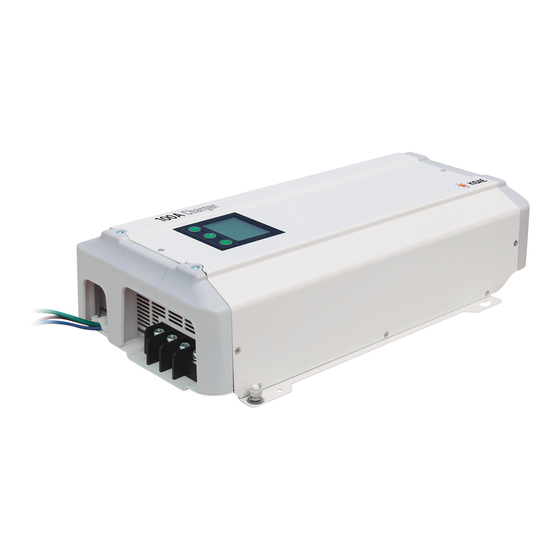

- Page 1 Abso Charger 12V 100A (AC12100) 24V 50A (AC2450) Owner’s Manual...
- Page 2 Page 2...
- Page 3 PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE Disclaimer While every precaution has been taken to ensure the accuracy of the contents of this guide, KISAE Technology assumes no responsibility for errors or omissions. Note as well that specifications and product functionality may change without notice.
-
Page 4: Table Of Contents
Table of Contents INTRODUCTION ....................4 PRODUCT DESCRIPTION ................7 UNDERSTANDING THE UNIT ................7 INSTALLING THE CHARGER ................. 10 UNIT OPERATION .................... 13 SPECIFICATIONS ..................... 19 WARRANTY ...................... 20 Appendix A1 (GEL, Flooded, AGM Setting CH1, CH2/CH3) Appendix A2.1 (Lithium Setting CH1) Appendix A2.2 (Lithium Setting CH2/3) Appendix A3.1 (Program Setting CH1) Appendix A3.1 (Program Setting CH2/3) - Page 5 IMPORTANT SAFETY INFORMATION This section contains important safety information for the KISAE Abso Charger. Each time, before using the unit, READ ALL instructions and cautionary markings on or provided with the unit, and all appropriate sections of this guide. The KISAE Abso Charger contains no user-serviceable parts.
- Page 6 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and comply with the CE EMC Standard. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generate, use, and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 7: Product Description
1. INTRODUCTION Thank you for purchasing the KISAE Abso Charger. With our state of the art, easy to use design, this product will offer you reliable service by providing a multi-stage multi-bank battery charger to charge different types of batteries you have installed in your boat, RV, vehicle, or your cabin battery bank. - Page 8 Typical wiring block diagram of the Battery Charger with 3 battery banks • AC Source: The charger accepts full universal input voltage (90-265Vac, 47-63Hz). • Branch Breaker: For use on 120V AC Input source, use a 15A branch breaker to connect between the AC Source and the charger AC Input hardwire cable (Hot–black wire, Neutral–white wire, Ground–green wire).
- Page 9 Understanding the Multi-Stage Charging Process: The charger is a fully automatic “set-and-forget” design. It is designed to quickly and accurately recharge deep cycle batteries utilizing charger algorithms that help to maximize the life of specialized deep cycle batteries. The charger features a multistage smart charging technology that enables the charger to be connected to the battery banks permanently.
-
Page 10: Installing The Charger
4. INSTALLING THE CHARGER WARNING: It is recommended that all wiring be done by a certified technician or electrician to ensure adherence to the applicable electrical safety wiring regulations and installation codes. Failure to follow these instructions can damage the unit and could also result in personal injury or loss of life. CAUTION: Before beginning your unit Installation, please consider the following: •... - Page 11 • Connect the ring terminal (lug) from the BTS to the negative terminal of Battery Bank 1. For parallel charger operation: CAUTION: Use same model only, cannot be done with non-identical KISAE charger models) • Two temperature sensors (BTS-10K) are required.
- Page 12 For use with two charger units connected in parallel: (use same model only) CAUTION: Use same model only, cannot be done with non-identical KISAE charger models). • Use the same procedure as above to install the first unit and the Remote Display Panel.
-
Page 13: Unit Operation
5. UNIT OPERATION Understanding the Battery Charging Current Setting: The battery charging current rating is based on the battery size. When charging GEL, AGM and Flooded batteries, each battery bank should meet the minimum Ah rating as shown on below chart. If a smaller size battery bank is used, set the current rating to a lower value to match with the battery bank size. - Page 14 Mode 2 Charging: The Two-Stage mode 2 charging is similar to the Three-Stage charging except that there is no Float stage after the Absorption stage. The charger will terminate the battery charging after Absorption stage. The charger will automatically restart the full charging cycle if it senses any one of the battery banks is discharged to lower than 12.5V for the 12V model, 25.0V for the 24V model, or after seven days since the last Absorption stage to refresh the battery banks.
- Page 15 Understanding and Procedure to Set or View CH1 or CH2 and CH3 setting: The following table shows the preset values of the battery charging voltage on GEL, Flooded and AGM type and the user selectable battery voltage setting for the Lithium and Program type. AC12100 Battery Type Absorption...
- Page 16 Procedure to Equalize Flooded Battery: DANGER: Explosion Hazard. The battery generates explosive gasses during equalization. Follow all the battery safety precautions listed in the manual. When using the equalization mode, the user has to be sure the battery connected to the channel is a flooded battery type. Equalizing a non-flooded battery may overcharge battery and cause the battery to explode.
- Page 17 Understanding and Executing the Silent Mode Function A unique feature of the KISAE Abso Charger is the ability to reduce fan speed at night or whenever required. This setting is manually activated via the Digital Display. Mode Operation Fan Operation...
- Page 18 Understanding the Error Codes Error codes will be shown on the display when either an internal fault such as high internal temperature or external fault like AC input voltage out of range is detected. The unit will shut down. Code Condition Corrective Action Temperature Sensor (BTS) is defective.
-
Page 19: Specifications
6. SPECIFICATIONS AC12100 AC2450 Charger Output: Output Current (Maximum) 100A Output Voltage Range: Charge 13.8 – 14.8 V 27.6 – 29.6 V Float 13.0 - 13.8 V 26.0 – 27.6 V Equalize (Flooded Battery) 15.5 V 31.0 V Charging Control Three stages (Bulk/Absorption/Float) Two stages (Bulk/Absorption) DC Output Bank... -
Page 20: Warranty
The limited warranty program is the only one that applies to this unit, and it sets forth all the responsibilities of KISAE. There is no other warranty, other than those described herein. Any implied warranty of merchantability of fitness for a particular purpose on this unit is limited in duration to the duration of this warranty. - Page 21 Page 21...
- Page 22 Page 22...
- Page 23 Page 23...
- Page 24 Page 24...
- Page 25 Page 25...
- Page 26 Appendix B Page 26...
