USER MANUAL
ECO-Line series
ECO-Line monitors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO-Line Series and is the answer not in the manual?

Questions and answers

Related Manuals for DISTEC ECO-Line Series

Summary of Contents for DISTEC ECO-Line Series

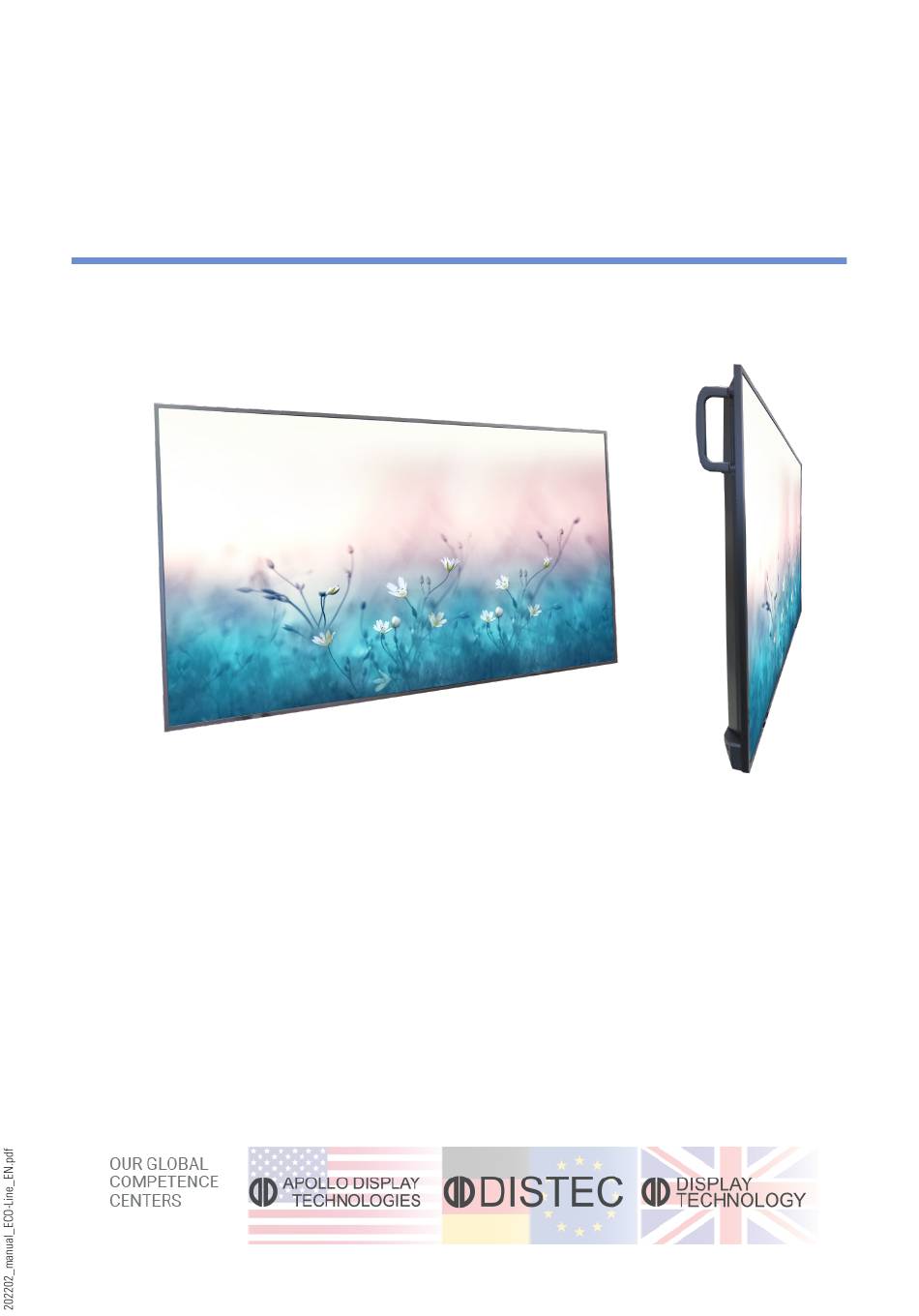

  • Page 1 USER MANUAL ECO-Line series ECO-Line monitors...
  • Page 2 Reproduction of this manual in parts or entirely without the previous authorization of Distec GmbH is prohibited. Distec GmbH is not liable for errors and collateral or subsequent damage which result from supply, deployment or any other utilisation of this document.

  • Page 3: Table Of Contents

    Table of contents Table of contents Table of contents ....................3 1. General specification .................. 4 Scope of delivery ..................4 General Safety Regulations ............... 5 First Installation ..................8 ECO-Line monitor controller ..............10 Maintenance .................... 18 Warranty / Service ................... 18 Disposal ....................

  • Page 4: General Specification

    Important note: This user manual is complemented by other additional documents. Please note the information on this. This document and all other referenced documents can be found at web site: www.distec.de/en. ECO-Line variants: Monitors 43“/ 55“/ 86“ with integrated controller, 2 x HDMI (in), 2 x USB 2.0, 1 x VGA in, 1x AUDIO in, 1x AUDIO out, 1x SPDIF, 1x RS232, 1x RJ45 in.

  • Page 5: General Safety Regulations

    Please read this safety information carefully for your personal safety and for the prevention of property damage. In case of a malfunction, immediately disconnect the power plug and contact your dealer or the next Distec GmbH service centre. A malfunction is also considered if the housing, a control element or cable is damaged or if liquids or other objects penetrate the monitor.
  • Page 6 General Safety Regulations Safety guidelines for the handling of LCD monitors • If the device is not used for a long period of time, unplug the power cable. • Do not unplug the power cable while the device is powerd on, except for emergencies. •...
  • Page 7 General Safety Regulations • Ensure sufficient ventilation of the device. • Keep a minimum distance of at least 10 mm devices to the wall, for devices with inte- grated PC of at least 40 mm. • Ensure compliance with the operating temperature. •...

  • Page 8: First Installation

    First Installation First Installation Position of connectors and controls All connectors for power and cables are located at the bottom of the back side of the display. Connection for power cable and on / off switch Data cable connectors, OSD menu buttons, Mounting oben Distance to wall:...
  • Page 9 First Installation Allowed tilt angle for mounting Attention! All monitors are not allowed to be mounted with a tilt angle of 0°. Connecting to power The ECO-Line monitor requires an AC voltage of 100-240 V AC. The standard delivery includes a suitable power cable for connecting the power supply.

  • Page 10: Eco-Line Monitor Controller

    ECO-Line monitor controller ECO-Line monitor controller ECO-Line monitors have the following connections and controls: Description Function VGA IN external image input AUDIO IN external audio input HDMI IN High-Definition-Multimedia Interface signal input, connect with devices with HDMI output Interface (PC) with HDMI output, set top box or other video device. RS 232 Serial interface to be used for data transmission between devices AUDIO OUT...
  • Page 11 ECO-Line monitor controller Connect to a PC with VGA cable VGA (RGB) VGA (RGB) Connect to a PC or an external device via RS232 RS232 RS232 Connect to a network with a patch cable Connect to active speakers Line-out Line-in...
  • Page 12 ECO-Line monitor controller Connect to keyboard and mouse via USB cable OSD controls Navigation in the OSD-menu Description Function Power indicator Indicates the status of the power supply . tap to turn on Energy saving: Press for at least 2 seconds to switch to stand-by mode Menu Settings pop-up menu Input...
  • Page 13 ECO-Line monitor controller Remote control instructions Description Function On-/ off button Turn on or off mute scroll up Press this button to select one selection up scroll down Press this button to select one selection down scroll left Press this button to select one selection left scroll right Press this button to select one selection right Enter...
  • Page 14 ECO-Line monitor controller Range of the remote control The remote control can work normally within a range of 8 meters, 30 degrees left and right of the remote control receiver; To protect the environment, please dispose of used batteries in a recycling box. SERIAL MONITORING PROTOCOL Installation ITEM...
  • Page 15 ECO-Line monitor controller Function Mode Code Power on AA BB CC 01 00 00 01 DD EE FF Power Power off AA BB CC 01 01 00 02 DD EE FF VGA 1 AA BB CC 02 03 00 05 DD EE FF VGA 2 AA BB CC 02 04 00 06 DD EE FF VGA 3...
  • Page 16 AA BB CC 07 59 00 60 DD EE FF ECO-Line monitor controller AA BB CC 07 57 00 5E DD EE FF AA BB CC 07 08 00 0F DD EE FF AA BB CC 07 5C 00 63 DD EE FF Green AA BB CC 07 5D 00 64 DD EE FF Yellow...
  • Page 17 AA BB CC 81 13 00 94 DD EE FF type-c1 ECO-Line monitor controller AA BB CC 81 14 00 95 DD EE FF type-c2 AA BB CC 02 2F 00 31 DD EE FF Returns all current channel commands with signals volume state AA BB CC 03 02 00 05 DD EE FF AA BB CC 82 00 xx ** DD EE FF...

  • Page 18: Maintenance

    Distec Service Centre together with all information as specified in the RMA process. Warranty Exclusions and Limitations This warranty does not apply to any defect for which Distec is not responsible and which includes, but is not limited to the following: • Unauthorized opening or disassembling of the product •...
  • Page 19 Distec RMA process. In order to avoid unnecessary charges, it is important to adhere to the RMA regulations. Products must be appropriately and professionally packed for a safe return to the Distec Service Centre. Products with panel sizes equal or larger then 81 cm (32“) must be shipped on pallets in upright position.

  • Page 20: Disposal

    Http://www.distec.de/en/service Disposal Disposal of old devices If the acquired Distec product is to be disposed of, must be implemented into national law the Directive 2012/19/EU. Disposal of batteries Applicable in all countries of the EU and in countries with separate battery collection systems.

  • Page 21: Declaration Of Conformity

    Declaration of Conformity Declaration Hereby the Distec GmbH declared that the unit EU is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU and 2011/65/EU. The CE declaration of conformity can be found in English at the website of Distec: https://www.distec.de/en/service/downloads/...
