USER MANUAL
Brilan 4K series
Brilan 4K monitors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brilan 4K Series and is the answer not in the manual?

Questions and answers

Related Manuals for DISTEC Brilan 4K Series

Summary of Contents for DISTEC Brilan 4K Series

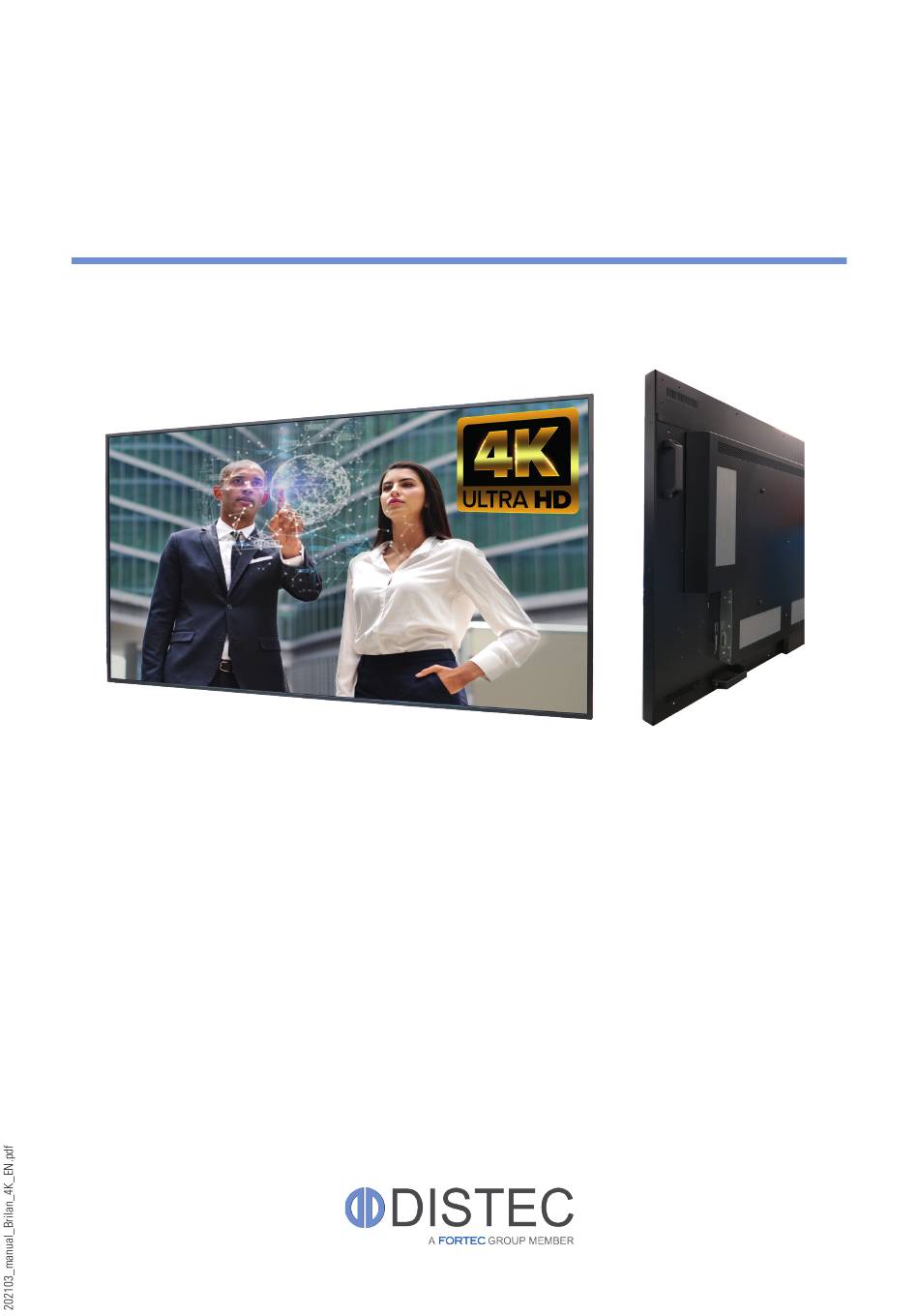

  • Page 1 USER MANUAL Brilan 4K series Brilan 4K monitors...
  • Page 2 Reproduction of this manual in parts or entirely without the previous authorization of Distec GmbH is prohibited. Distec GmbH is not liable for errors and collateral or subsequent damage which result from supply, deployment or any other utilisation of this document.

  • Page 3: Table Of Contents

    Table of contents Table of contents 1. General specification .................. 4 Scope of delivery ..................4 General Safety Regulations ............... 5 First Installation ..................8 Instruction sheet wall mount ..............10 Brilan 4K monitor controller ..............12 Rock PI4 module B (option) ............... 26 -i5 ..............

  • Page 4: General Specification

    This user manual is valid for Video wall monitors 109.2 cm (42.5“) up to 217.4 cm (85.6“). Important note: This user manual is complemented by other additional documents when indicated. All documents are also available for download from Distec GmbH web site: www.distec.de/en.

  • Page 5: General Safety Regulations

    Please read this safety information carefully for your personal safety and for the prevention of property damage. In case of a malfunction, immediately disconnect the power plug and contact your dealer or the next Distec GmbH service centre. A malfunction is also considered if the housing, a control element or cable is damaged or if liquids or other objects penetrate the monitor.
  • Page 6 General Safety Regulations Safety guidelines for the handling of LCD monitors • If the device is not used for a long period of time, unplug the power cable. • Do not unplug the power cable while the device is powerd on, except for emergencies. •...
  • Page 7 General Safety Regulations • Ensure sufficient ventilation of the device. • Keep a minimum distance of at least 10 mm devices to the wall, for devices with inte- grated PC of at least 40 mm. • Ensure compliance with the operating temperature. •...

  • Page 8: First Installation

    First Installation First Installation Position of connectors and controls All connectors for power and cables are located at the bottom of the back side of the display. Connection for power cable and on / off switch Data cable connectors, OSD menu buttons, Mounting oben Distance to wall:...
  • Page 9 First Installation Allowed tilt angle for mounting Attention! All monitors are not allowed to be mounted with a tilt angle of 0°. Connecting to power The Brilan 4K monitor requires an AC voltage of 100-240 V AC. The standard delivery includes a suitable power cable for connecting the power supply.

  • Page 10: Instruction Sheet Wall Mount

    Instruction sheet wall mount Instruction sheet wall mount A special wall mount is available for sizes 42.5“ to 64.5“. Thias wall mount enables a very flat and rigid suspension without inclination on a wall. The retaining lugs of the wall mount fit into the back cover of the monitor both in landscape and in portrait mode. LANDSCAPE PORTRAIT 1.
  • Page 11 Instruction sheet wall mount 3. Tilt the monitor to the wall mount 4. Slide the monitor down...

  • Page 12: Brilan 4K Monitor Controller

    Brilan 4K monitor controller Brilan 4K monitor controller Brilan 4K Monitors have the following connections and controls: OSD Tastatur keyboard Power supply On/ o button RS232 IN RS232 OUT RS232 RS232 HDMI OUT DisplayPort 2 x HDMI IN Connect to a PC r an external device with HDMI cable HDMI HDMI Connect to a monitor with HDMI cable...
  • Page 13 Brilan 4K monitor controller Connect to a PC with DisplayPort cable DisplayPort DisplayPort Connect to a PC or an external device via RS232 RS232 RS232 Connect to a monitor with RS232 cable RS232 RS232 Connect to an USB stick for firmware download DOWNLOAD...
  • Page 14 Brilan 4K monitor controller Remote OSD control You can remotely control the monitor from an external PC. To do this, connect the monitor to the PC via an RS232 cable and start the program „WallExpress“. Here you can configure the monitor or its VideoWall. The OSD keyboard Operating the OSD menu via keyboard Operation...
  • Page 15 Brilan 4K monitor controller Operation • Navigates input source • Executes function (by OSD help commands) in main OSD menu • Navigates previous menu in main OSD menu Down • Navigates input source • Executes function (by OSD help commands) in main OSD menu •...
  • Page 16 Brilan 4K monitor controller OSD-menu To enter the OSD settings menu, press the Menu button on the OSD keypad or the IR remote control. Now you are in the first level of the menu. Press „OK“ to go to the second level of the menu item. Press „Menu“...
  • Page 17 Brilan 4K monitor controller Brightness Sharpness Saturation Apect Ratio (Full Screen, Auto, 4:3, 5:4, 16:9, 1:1) Dimming (Backlight Helligkeit) 1.2 Color Color Temperature (3200K, 5600K, 6500K, 7800K, 9300K, User) Red, Green, Blue Gain...
  • Page 18 Brilan 4K monitor controller Gamma Input Color Format Color Range 1.3 VideoWall This setting is required for VideoWall operation to map the monitors to the positions. X Max: Number of columns into which the image is divided. (up to 11 columns) Y Max: Number of lines in which the image is divided.
  • Page 19 Brilan 4K monitor controller 1.3.2 Video Wall onfiguration example In the following picture you can see an example of a 3x3 video wall. In order for the image to be displayed correctly, the values must be entered in the Video Wall menu in the OSD. X Axix/ MAx X=3 ID 1 ID 2...
  • Page 20 Brilan 4K monitor controller 1.4 Timer Current Time One Time/Off Time 1.5 Other Setting Language Menu Transparency OSD Time Power Save Mode (Power off if no signal) Panorama (Option für gestretchte Panels) Reset (factory defaults)
  • Page 21 Brilan 4K monitor controller 1.6 SERIAL CONTROL PROTOCOL 1.6.1 Serial Setup ITEM SETTINGS Baud rate 19200 bps Data bit 8 bit Stop bit 1 bit Parity bit none Stream control none 1.6.2 Serial Cable between PC and AD BOARD (simple null modem cable) CONNECTOR1 CONNECTOR2 CONNECTOR 1...
  • Page 22 Brilan 4K monitor controller 1.6.3.3 Data setting only (Not adjust function for speed) Packet (4bytes) 0xF5 0x88 ID (0~0xFE) PARAM. Value Command Format 0xFX F = Command Start Sending X = No of Byte to Send Current Example (0xF5) Start Sending 5 Bytes of Packet Data AD Board Response Check sum.
  • Page 23 Brilan 4K monitor controller 1.6.4 Control Command Packages Data1 Data2 Data3 Data4 Data5 Description Range (HEX) Command Target PARAM Value English 0x00 LANGUAGE SOURCE HDMI1 0x01 *DP & HDMI2 HDMI1 HDMI3 5700K COLOR 6500K 0x03 TEMP 9300K User 0x04 CONTRAST BRIGHT- 0x05 NESS...
  • Page 24 Brilan 4K monitor controller Data1 Data2 Data3 Data4 Data5 Description Range (HEX) Command Target PARAM Value OFF TIME 0x29 ON OFF 0x2A SET ID CURRENT 0x32 HOUR CURRENT 0x33 MINUTE REMOTE 0x36 LOCK ILLUMI- 0x37 NANCE (7)(8) MAX_ILLU- 0x38 MINANCE 25000 MIN_ILLU- 0x39...
  • Page 25 Brilan 4K monitor controller Data1 Data2 Data3 Data4 Data5 Description Range (HEX) Command Target PARAM Value POWER 0x00~0xFF 0x6B SAFE MODE 0xF5 (by min-max) (Start Set) 0x88 (Set) 0xFE/ 0xXX 0xFC Set/ 0x68 RESET (0x00~0xFE) Get Param. 0xF4 0x89 (Get) SEND (Start Get) IN GET...

  • Page 26: Rock Pi4 Module B (Option)

    Rock PI4 module B (option) Rock PI4 module B (option) The RockPi4 is a single board computer that is small in size compared to other computers, but is still extremely powerful. It offers excellent compatibility with various hardware and has an LPDDR4 RAM and a 64bit Hexacore processor. The RockPi4 is completely integrated into the system of the monitor and can be used like that.
  • Page 27 Rock PI4 module B (option) Position Rock PI int the monitor Note: If you change the signal source without switching off the RockPi, it is still active. This means that for devices in which a touch- screen is installed, the RockPi is activated when you enter it via the touchscreen, even though you see a different picture. If you want to use another signal source in connection with the touchscreen, you have to shut down the RockPi and link the USB connection from the touch screen to another signal source.

  • Page 28: External Pc Box Iq Core™-I5

    External PC box IQ Core™-i5 External PC box IQ Core ™ Note: The PC box is not intended for the Brilan 4K 42.5” Note: A combination of PC box IQ Core -i5 and Rock PI4 is not intended. ™ Note: The delivery includes a driver DVD with all IQ Core -i5 main board drivers! ™...
  • Page 29 External PC box IQ Core™-i5 Mounting and dismounting the PC box Note: The display must be switched off before dismounting or mounting the PC box. Not confirming to the rules may electron- ically damage the display and the PC box. Note: The two interfaces on the Brilan 4K Monitor may only be used for the PC-Box (option).
  • Page 30 External PC box IQ Core™-i5 Operating the PC box without display The PC box can be operated as stand alone device without display for maintenance purposes. This requires an external power supply (12V DC, 60 Watt) which is available as option (order number DS-91-945). Please connect monitor, keyboard and mouse before switching on power.

  • Page 31: Touch Sensors

    External PC box IQ Core™-i5 BIOS settings A Phoenix UEFI Flash BIOS is installed on the PC main board. To change BIOS settings press the ‘ENTF/DEL’ key on your keyboard during the boot process of the PC. Operating systems An operating system is pre-installed if you has been ordered this option. In this case all main board drivers or touch drivers are installed. Activating the operating system: •...
  • Page 32 External PC box IQ Core™-i5 Line-out Line-in...
  • Page 33 External PC box IQ Core™-i5...

  • Page 34: Maintenance

    Distec Service Centre together with all information as specified in the RMA process. Warranty Exclusions and Limitations This warranty does not apply to any defect for which Distec is not responsible and which includes, but is not limited to the following: • Unauthorized opening or disassembling of the product •...
  • Page 35 Distec RMA process. In order to avoid unnecessary charges, it is important to adhere to the RMA regulations. Products must be appropriately and professionally packed for a safe return to the Distec Service Centre. Products with panel sizes equal or larger then 81 cm (32“) must be shipped on pallets in upright position.

  • Page 36: Disposal

    Http://www.distec.de/en/service Disposal Disposal of old devices If the acquired Distec product is to be disposed of, must be implemented into national law the Directive 2012/19/EU. Disposal of batteries Applicable in all countries of the EU and in countries with separate battery collection systems.

  • Page 37: Declaration Of Conformity

    Declaration of Conformity Declaration Hereby the Distec GmbH declared that the unit EU is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU and 2011/65/EU. The CE declaration of conformity can be found in English at the website of Distec: https://www.distec.de/en/service/downloads/...
