Summary of Contents for AXA entrya Facila

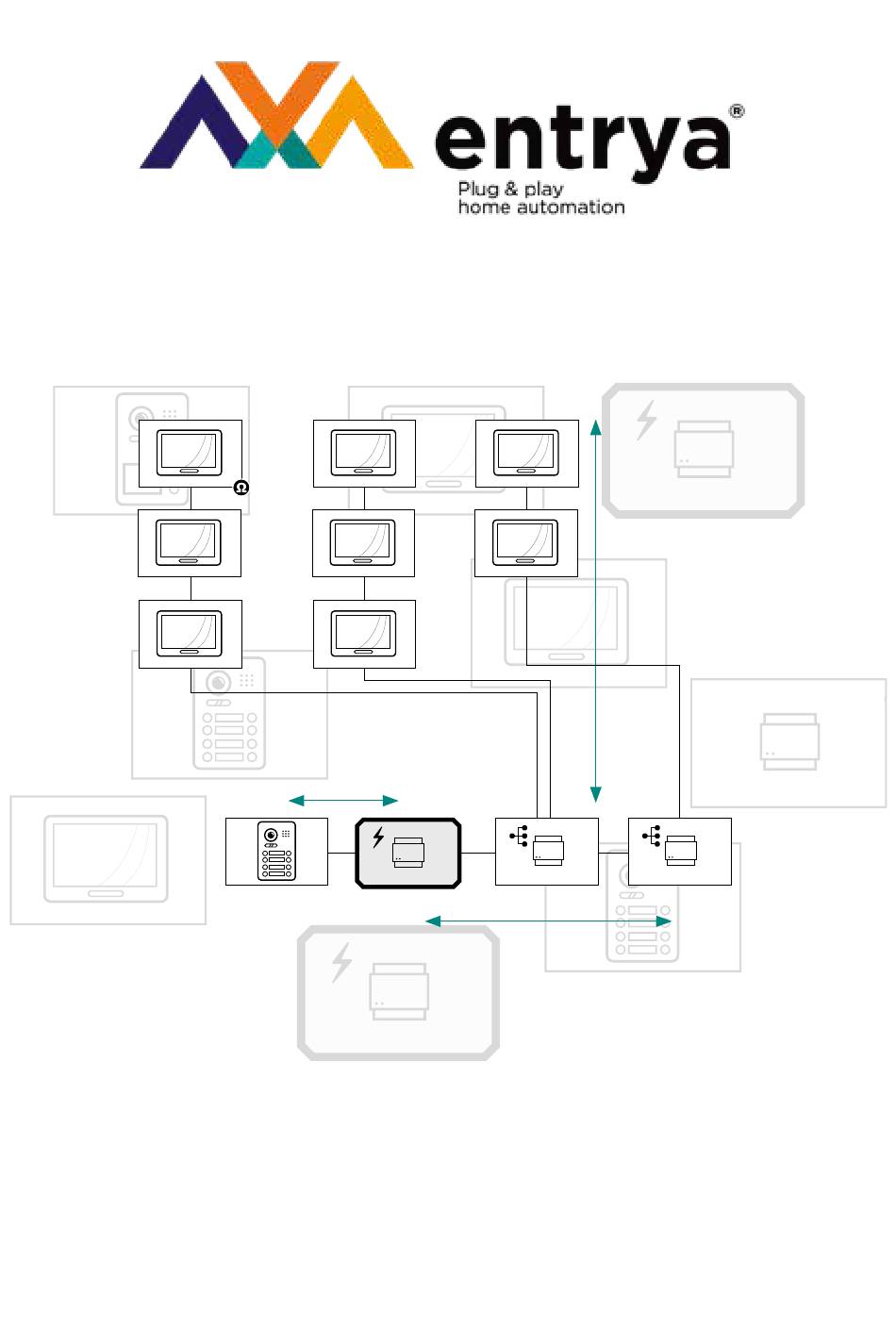

- Page 1 Facila Installation Guide 2017...
-
Page 2: Table Of Contents
Index Preface Legend Notions Cabling requirements VILLA system Topology: Cascade network Topology: Star network Example schematics Basic schematic Basic schematic with lock module Multiple door stations with a distributor Multiple monitors with a distributor Multiple monitors with a distributor in combination with a telephone-interface Multiple monitors with distributor in combination with a lock module Multiple monitors with multiple distributors Camera module... -
Page 3: Preface
Preface The FACILA-system is designed with a focus on usability. A two-wiresystem that is not sensible to polarity, guarantees a quick and easy installation. The multi-use of our monitors ensures an answer for every installation. Call forwarding, videosur- veillance, mobile forwarding, standard and panic-lock activations and controlling gate operators, FACILA has quick solutions for every case. - Page 4 Terminating resistor A terminating resistor will close the BUS-signalline. This closure ensure that reflections of signals are minimized. When a BUS-line is not closed, interferences in video, audio and data-communicati- on may occur which will disturb the functioning of the system. This ‘impedance switch’...
-
Page 5: Cabling Requirements Villa System
Cabling requirements VILLA system The maximum length of cabling is limited. The use of other cables then subscribed could influence the maximum length of cabling and cause interferences. Topology: Cascade network In a serial network all devices are connected on one BUS-line. This makes a serial network usable for new building projects. -
Page 6: Topology: Star Network
Topology: Star network In a star network all devices communicate through distributors. The advantage of such a star topo- logy is that ‘local’ problems are contained and do not influence the entire network. Star networks are very adequate for renovating projects where an existing intercom has to be exchanged. A star network requires more cabling than a serial network. -
Page 7: Example Schematics
Example schematics Basic schematic Basic schematic with lock module Lock module Multiple door stations with a distributor Distributor Multiple monitors with a distributor Distributor Multiple monitors with a distributor in combination with a telephone-interface Telephone Distributor interface Important! The telephone interface has address 15, no other device may have this address! All texts and images in this guide are protected by copyright and intellectual property of ENTRYA BVBA. -
Page 8: Multiple Monitors With Distributor In Combination With A Lock Module
Multiple monitors with distributor in combination with a lock module Lock module Distributor Multiple monitors with multiple distributors All texts and images in this guide are protected by copyright and intellectual property of ENTRYA BVBA. v1710v31... -
Page 9: Camera Module
Camera module Multiple door stations and a lock module with a distributor Distributor Lock module All texts and images in this guide are protected by copyright and intellectual property of ENTRYA BVBA. -
Page 10: Cabling Requirements Appartment System
Cabling requirements APPARTMENT system The maximum length of cabling is limited. The use of other cables then subscribed could influence the maximum length of cabling and cause interferences. Topology: Star network In a star network all devices communicate through distributors. The advantage of such a star topo- logy is that ‘local’... -
Page 11: Topology: Cascade Netwrk
Topology: Cascade netwrk In een serienetwerk zijn alle posten met elkaar verbonden op één Bus-lijn. Een serienetwerk is dan ook geschikt voor nieuwbouwprojecten. Een serienetwerk vereist minder kabels dan een sternetwerk maar bij problemen wordt het volledige netwerk verstoord. Less than 16 monitors in the installation Twisted pair without shielding (2x 0.75mm²) Twisted pair without shielding (2x 1mm²) A: Maximum length between PSU and door station... -
Page 12: Example Schematics
Example schematics Basic schematic Basic schematic with lock module Lock module Multiple door stations with distributor Distributor Multiple monitors with distributor Distributor Multiple monitors with a telephone interface and a distributor Telephone Distributor interface Important! The telephone interface has address 15, no other device may have this address! All texts and images in this guide are protected by copyright and intellectual property of ENTRYA BVBA. -
Page 13: Multiple Monitors With A Lock Module And A Distributor
Multiple monitors with a lock module and a distributor Lock module Distributor Multiple monitors with multiple distributors Important! Switch terminating resistance ON on accessories and monitors with this symbol. All texts and images in this guide are protected by copyright and intellectual property of ENTRYA BVBA. -
Page 14: Camera Module
Camera module Multiple door stations with lock module and distributors Distributor Lock module All texts and images in this guide are protected by copyright and intellectual property of ENTRYA BVBA. v1710v31... -
Page 15: Using A Supplementary Power Supply
Using a supplementary power supply When on one signal line more than 8 monitors are installed, a supplementary PSU is advised. This extra PSU is installed at the end of the BUS-line to guarantee that the required tension does not go below 23V DC. Before installing a supplementary PSU it is important that one measures the tension on the BUS when a monitor is communicating with a door station. -
Page 16: Overview Installation Codes Fp070 / Fp035
Overview installation codes FP070 / FP035 Description Code FP070 FP035 Restore factory settings 2412 Erase Memory 2499 Update Firmware 2810 User Interface Update 2811 Update Tunes 2812 Format SD-card 2813 Send adjusted namelist to other monitors 2910 ...
