Dakota Digital XMT-7 Quick Start Manual

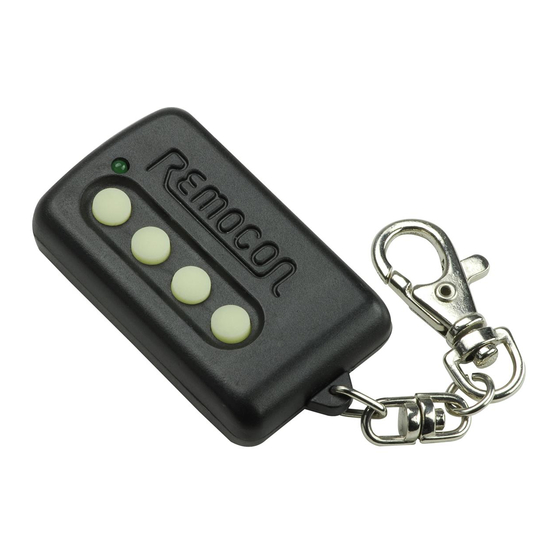

The XMT-7 transmitter is a universal programmable remote. The XMT-7 must be programmed with a
known working remote. This transmitter can only operate up to four functions/buttons.
If you have a two function system, then button 1 (closest to the LED light) will operate function 1
and button 2 will operate function 2. Buttons 3 and 4 will not be used. If you have a three function
system then the third function will be operated by button 3 and button 4 will not be used. If you have a
four function or larger system then the fourth function will be operated by button 4.
The procedure for programming with a working existing remote is:
1. Remove the back case from the key chain transmitter and place the remote in programming mode by
placing the jumper over the two programming pins, as pictured(units ship this way so it should be
there already, two pins close to the battery).
2. Place the XMT-7 key chain transmitter beside the old key chain transmitter on a non-metallic table as
shown below. The closer the remotes are the better, within 1/8" of each other is ideal. The supplied
tuning screwdriver will be used for programming as it has an insulated handle that will prevent
interference during programming.
Note: programming should be done in an area free from electrical interference, or the remote
may program incorrectly.
Currently working remote
(1 -4 buttons)
3. Press and hold the first button on both transmitters at the same time. The green LED on the XMT-7
key chain transmitter should flash/flicker rapidly. If it doesn't then adjust the frequency trimmer, with
the tuning screw driver, until the green LED is flashing rapidly while the buttons on both remotes are
being held. Once the led is flashing rapidly the frequency is in range, release the buttons and go on to
the next step.
Programmable 4 button remote.
Button 1
Button 4
XMT-7
Green LED
Programming mode
(Jumper over both pins)
Trimmer
Tuning
screwdriver
XMT-7
Manual #650279
