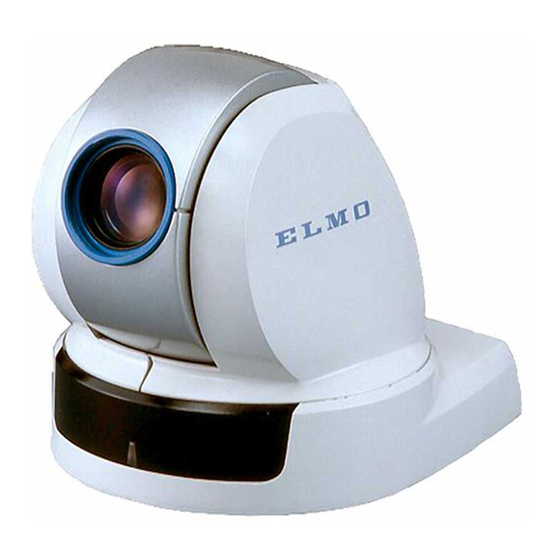

- Page 1 All manuals and user guides at all-guides.com PAN • TILT • ZOOM COLOR CAMERA PTC - 200C INSTRUCTION MANUAL Please read this instruction manual carefully before using this PTC-200C and keep it for future reference.
-
Page 2: Important Safety Instructions
All manuals and user guides at all-guides.com IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus outdoors. 6. Do not use this apparatus near water. 7. - Page 3 All manuals and user guides at all-guides.com INFORMATION CAUTION RISK OF ELECTRIC This equipment has been tested SHOCK DO NOT OPEN and found to comply with the CAUTION : TO REDUCE THE RISK OF limits for Class A digital device, ELECTRIC SHOCK.
-
Page 4: Handling Precautions
All manuals and user guides at all-guides.com HANDLING PRECAUTIONS Be sure to use the provided AC adapter. Do not leave the Camera under direct sunlight or by heater, or the Camera may be discolored, or damaged. Do not place the Camera in any humid, dusty, windy or vibrating location. -
Page 5: Table Of Contents
All manuals and user guides at all-guides.com CONTENTS IMPORTANT SAFETY INSTRUCTIONS .........1 HANDLING PRECAUTIONS ............3 1. PART NAMES AND FUNCTIONS............5 2. WIRELESS REMOTE CONTROLLER ..........7 3. SETTING UP ..................9 4. OPERATION PROCEDURES ............14 [1] Power supply to the Camera ............. 14 [2] Turning ON/OFF of the Camera power ........ -
Page 6: Part Names And Functions
All manuals and user guides at all-guides.com 1. PART NAMES AND FUNCTIONS Overall View INFRARED SENSOR BASE LENS CAMERA HEAD ALARM IN TERMINAL RS-485 IN TERMINAL TERMINAL BLOCK DIP Switch (4) DIP Switch (10) RS-485 OUT TERMINAL ALARM OUT TERMINAL DC IN INFRARED SENSOR COMPOSITE-VIDEO OUT (RCA pin jack) This camera is designed to mount on ceiling panels only. - 5 -... - Page 7 All manuals and user guides at all-guides.com Wireless Remote Controller RESET POWER BACK LIGHT PRESET OPEN NEAR NUMBER (1 6) CLOSE AUTO AUTO HOME Directions TELE WIDE MENU CURSOR/PAN-TILT Button Name Function Reference Page POWER To turn ON/OFF the Camera power. P.19 OPEN To open the iris manually.
-
Page 8: Wireless Remote Controller
All manuals and user guides at all-guides.com 2. WIRELESS REMOTE CONTROLLER Point the infrared emitting window of the wireless remote controller at the infrared sensor of the Camera, located at the front, and the rear panel, and select the desired function. Receivable range Note: The infrared sensors may receive the infrared rays only within a narrower receivable range or may not receive them at all depending on the ambient... - Page 9 All manuals and user guides at all-guides.com Preparation Remove the battery case cover by pressing downward on the [ ] mark part in the direction as indicated by the arrow. Install 2 pcs. of batteries (type R03,AAA) into the case in the direction as indicated there.
-
Page 10: Setting Up
All manuals and user guides at all-guides.com 3. SETTING UP [1] Installation Note: When carrying the Camera, be sure to hold the base. Note: Do not turn the Camera head in the PAN-TILT direction by hand, or the Camera head may be broken. (1) Mounting the Fixing Plate •... - Page 11 All manuals and user guides at all-guides.com (2) Making mounting holes to the Ceiling Tile • Make 4 holes of 8mm (5/16 in.) to the Ceiling Tile as shown. MOUNTING HOLE 8mm (5/16 in.), 4 LOCATIONS 102mm (4 in.) 70mm (2-3/4 in.) BACK 54mm (2-1/8 in.) FRONT CEILING TILE (t 1/2 in. 1 in.) t = thickness - 10 -...
- Page 12 All manuals and user guides at all-guides.com (3) Fixing the Main Unit • Put the Ceiling Tile between the Main Unit and the Ceiling Plate, and fix the Main Unit by fastening 4 Wing Nuts. WING NUT M5 (supplied), 4 PCS CEILING PLATE MOUNTING HOLE: 5/16 in., 4 LOCATIONS CEILING TILE (t 1/2inch-1inch) t = thickness HEXAGON HEAD BOLT M5x40 (supplied), 4 PCS MAIN UNIT...
- Page 13 All manuals and user guides at all-guides.com (4) Mounting the Safety Wires • Loop up one end of the Safety Wires through the respective safety wire looping holes made on the Ceiling Plate, and then loop up the other end of the same around the beams or anything that is used to mount ceiling tile channel for structure safety.
- Page 14 All manuals and user guides at all-guides.com Connection examples for the Camera - 13 -...
-
Page 15: Operation Procedures
All manuals and user guides at all-guides.com 4. OPERATION PROCEDURES [1] Power supply to the Camera The Camera has no POWER switch. Power is supplied to the Camera when the AC adapter is connected to the wall socket and the Camera. When power is supplied to the Camera, the Camera turns to the right and then to the center automatically (viewed from the front), returning the Camera position to the detault home position. -
Page 16: Operating Pan/Tilt
All manuals and user guides at all-guides.com [3] Operating PAN/TILT • While watching the screen, press any of (UP, DOWN, LEFT, RIGHT) direction buttons for the direction in which you want to watch the image. • To change the direction minutely, jog the direction button. -
Page 17: Lens Operation
All manuals and user guides at all-guides.com [4] Lens operation (1) Zoom operation • The object is zoomed in (appears larger in the screen) when TELE button of ZOOM is pressed, or zoomed out (appears smaller in the screen) when WIDE button of ZOOM is pressed. -
Page 18: Blc (Back Light Control)
All manuals and user guides at all-guides.com [5] BLC (Back Light Control) In case the back lighting is too bright to shoot the main object clearly, press BACK LIGHT button. To cancel this mode, press the button. [6] Preset operation The Camera head direction, the zoom position, the focus status and the brightness level can be registered for as many as six settings. -
Page 19: The Id Number Setting
All manuals and user guides at all-guides.com 5. THE ID NUMBER SETTING When multiple Cameras are laid out adjacently and operated via the wireless remote controller, the Cameras receiving the infrared rays operate in unison in the same way. When each Camera is allocated with a different ID No., the Camera can be controlled independently when its ID No. -
Page 20: Osd (On-Screen Display)
All manuals and user guides at all-guides.com 6. OSD (On-Screen Display) MENU button is used to turn ON/OFF the OSD display. When the Sub menu is displayed, the screen goes back to the previous screen. When the OSD display is available, direction buttons and HOME button function as the menu operation keys. - Page 21 All manuals and user guides at all-guides.com <6> ALARM IN Sets the alarm position time [10 sec (default), 20 sec, 30 sec, 1 min, 5 min, 10 min, OFF]. When the set time has passed, automatic resetting is made to the lastly executed preset position.
- Page 22 All manuals and user guides at all-guides.com *1: <9> "R SHIFT" and <10> "B SHIFT" are available in 2 types, respectively: one for the ATW and AWC functions, and the other for the INDOOR, OUTDOOR and LIGHT functions. For example, it is possible to set "R SHIFT" to +10 in the ATW mode and to ±...
-
Page 23: Alarm In/Out Terminals
All manuals and user guides at all-guides.com 7. ALARM IN/OUT TERMINALS [1] Alarm input By short-circuiting the ALARM 1 IN or ALARM 2 IN Terminal Block to the GND terminal on the Terminal Block, the Camera moves to the allocated preset position. •... -
Page 24: All Clear Switch
All manuals and user guides at all-guides.com 8. ALL CLEAR SWITCH The PAN-TILT settings, the LENS settings, the preset settings, the ID settings and the Camera settings by means of the OSD can be reset to the factory-settings by turning ON the switch No. -
Page 25: Rs-485
All manuals and user guides at all-guides.com 9. RS-485 This system can be controlled from the PC by connecting the RS-485 terminal on the 9-pin Terminal Block to the PC via an RS-485 converter. Make the connection as shown below. Each camera can be set for the ID address via a 10-pin DIP Switch located on the bottom so that a selected camera can be controlled. -
Page 26: Terminating Resistance And Id Address Settings
All manuals and user guides at all-guides.com 10. TERMINATING RESISTANCE AND ID ADDRESS SETTINGS The ID address of the RS-485 and the terminating resistance can be set by using the switches Nos. 1 through 9 of the DIP Switch (10) located on the bottom of the Main Unit. Switch No. - Page 27 All manuals and user guides at all-guides.com Setting the ID address Camera Switch No. of DIP Switch (10) Camera Switch No. of DIP Switch (10) ID address ID address Disabled OFF OFF OFF OFF OFF OFF OFF 56 OFF OFF OFF ON ON ON OFF OFF OFF 1 ON OFF OFF OFF OFF ...
- Page 28 All manuals and user guides at all-guides.com Camera Switch No. of DIP Switch (10) Camera Switch No. of DIP Switch (10) ID address ID address 112 OFF OFF OFF OFF ON ON OFF 168 OFF OFF OFF ON OFF ON OFF ON ON 113 ON OFF OFF OFF ON ON ON OFF 169 ...
-
Page 29: Troubleshooting Hints
• The Camera head has been moved directly due to some is blurry cause. Adjust the Camera direction by setting the "RESET" button to the normal position. (See P.15) If the problem still remains after checking the above, consult your nearest dealer or authorized ELMO service center. - 28 -... -
Page 30: Specifications
All manuals and user guides at all-guides.com 12. SPECIFICATIONS General Item Specifications Power source 12V DC Current consumption MAX.1A Outside dimensions 124mm(W) X 153mm(D) X 136mm(H) (4.9 X 6.0 X 5.4 in.) Weight /Mass mainbody only: 800g (1.8 lb), with plates: 1,100g (2.4 lb) Television system NTSC compatible Output terminal... -
Page 31: Supplied Accessories
Screw M3x5 Ceiling plate Wing nut M5 Hexagon head bolt M5x40 Instruction manual *Weight and dimensions are approximate. *Design and specification are subject to change without prior notice. Trademark Acknowledgements ,ELMO are registered trademarks of ELMO CO.,Ltd. - 30 -... - Page 32 Elmo Mfg. Corp. 1478 Old Country Road, Plainview, NY 11803-5034 Tel:(516)501-1400 Fax:(516)501-0429 E-mail:elmo@elmousa.com Web : http://www.elmousa.com Canada Elmo Canada Mfg. Corp. 44 West Drive, Brampton, Ontario L6T 3T6 Tel:(905)453-7880 Fax:(905)453-2391 E-mail : info@elmocanada.com Web : http://www.elmocanada.com Germany Elmo (Europe) G.m.b.H Neanderstr.
- Page 33 All manuals and user guides at all-guides.com Receivable range - 32 -...
