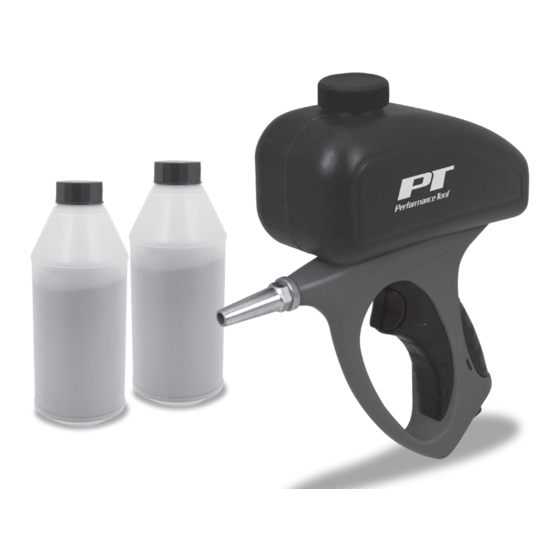

AIR POWERED ABRASIVE SPOT BLASTER
Stock Number M545
MANUAL
SPECIFICATIONS:
Nozzle diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mm
Hopper capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 .2 fl . oz . (510 ml)
Maximum air pressure : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 PSI
Air consumption: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 CFM @ 90 PSI
Air inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 oz . (0 .4 kg)
Specifications are subject to change without notice .
WARNING!
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO
MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND
WILL VOID WARRANTY.
Some dust created by sand blasting contains chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm. An example of this type of chemical is lead from lead based paints, Crystalline Silica from bricks
and cement or other masonry, Arsenic and Chromium from chemically treated lumber. Your risk from these exposures varies,
depending on how often you do this type of work. To reduce your exposure: work in a well ventilated area and work with
approved safety equipment, such as dusk masks that are specially designed to filter out microscopic particles.
