1. Product Name

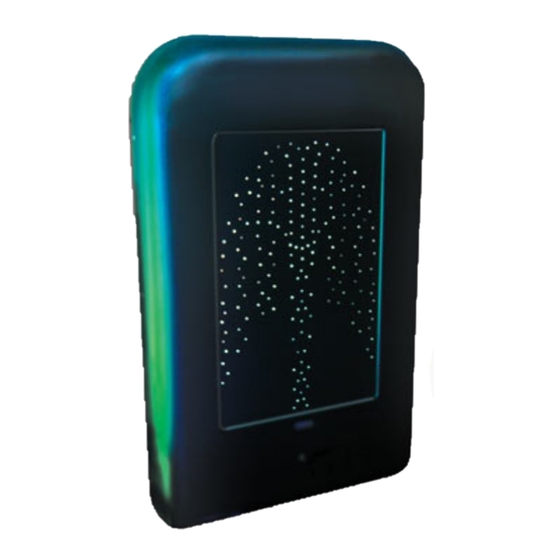

Interactive Fountain Panel
2. Product Code
18537
3. Colour
Black or White
4. Brief Description
This Fountain Panel can be used passively and interactively rotating through 8 colour
cycles. It features controllable sound that can be switched off, can be controlled
wirelessly, with a variety of ROMPA™ switches and controllers.
5. Contents
1 x
Interactive Fountain Panel
1 x
A switch
NOTE: No fixings are included for wall mounting (please seek professional advice
regarding construction of wall).
Advertisement
Table of Contents
Related Manuals for Rompa 18537
Summary of Contents for Rompa 18537
- Page 1 1. Product Name Interactive Fountain Panel 2. Product Code 18537 3. Colour Black or White 4. Brief Description This Fountain Panel can be used passively and interactively rotating through 8 colour cycles. It features controllable sound that can be switched off, can be controlled ...
- Page 2 6. Snoezelen® Stimulations • Visual • Audible 7. Best Use • Can be either wall mounted or used in a Porter so it can be moved around (product ® codes 18518/18522 – see ROMPA catalogue/website for further information about Porters). • Use under supervision 8. Compatible ROMPA® Products 19847 – 8 Colour Wirefree Controller 19939 – Wi Fi Interactive Carpet switch Set by ROMPA® 18870 ‐ Talking Cube by ROMPA® 20402 – Mini Talking Cube 20563 – Wi Fi Microphone by ROMPA® 19214 – Colour Changing Panel by ROMPA® 9. Starting Up • Plug the interactive Fountain Panel in • Switch on using the on/off rocker switch at the top of the Panel • Enjoy the colour changing display! Volume...
-
Page 3: Detailed Description
Important Note ® Only ROMPA switches should be used in conjunction with the Fountain Panel. Radios, amplifiers or other equipment terminated in jack plugs should never be connected. Damage to the electronics of either or both items is likely to follow. ... -
Page 4: Installation
13. Installation • Note: When attaching fixings to the back of the panel please proceed with caution – be aware that there are electrical assemblies inside the panel. Note: A short screw (no longer than 20mm) can be used in the safe fixing areas. • This panel weighs approximately 21 kg. Please take this into consideration when fixing. • Attach fixings such as mirror plates to the back of the panel. Fixings are not supplied as these depend on the surface the panel will be fixed to. Check the fixings you choose (e.g. mirror plates) can easily support 21kg. You may wish to attach two mirror plates to the back of the panel at the top and two on the back at the bottom. • Please make sure that you are aware of the construction of the wall the panel is to be fixed to. • Taking this into account please ensure that you use the correct fittings. For example, walls may be partition walls and plaster board as opposed to solid brick or stone. • Take advice from a suitably qualified professional builder or from an estates department if in any doubt about appropriate fixtures. ... -
Page 5: Care And Maintenance
15. Troubleshooting In the unlikely event of problems with this product, please check: • Plugged in? • Check the fuse in the mains plug • Look at the power supply – is there a light on it? The light should be constantly on. If the light is flickering, the power supply is faulty. If not on at all, the power supply has failed: contact us in both instances Further copies of these instructions can be downloaded at www.rompa.com We hope you find our instructions invaluable. If you have any suggestions for improving them further your comments will be greatly received – please contact us at producthelp@rompa.com INTERACTIVE FOUNTAIN PANEL 18537, April 2014 Copyright ROMPA® Ltd ... - Page 6 1. Produit Panneau Fontaine 2. Code 18537 3. Couleur Noir ou blanc 4. Brève description Contrôle sans fil – interactif : facile et avec télécommande. Un panneau de lumières LED sous forme de fontaine qui produit différents effets. Idéal pour les problèmes visuels. Il est possible de l’utiliser avec les Cubes Parlants, Panneau de Couleurs Changeantes et la Télécommande de 8 Couleurs sans Fils. Contacteur compris. La fontaine change doucement de couleurs. Le cycle de variation des effets dure 2 minutes. Peut être ...
- Page 7 6. Stimulations Snoezelen® • Vue • Ouïe 7. Usage • Attachez ce panneau au mur ou servez‐vous d’un Support 18518/18522 – voir le ® catalogue/web ROMPA pour plus de renseignements • Il faut toujours surveiller l’usage de ce produit 8. Produits Compatibles de ROMPA® 19847 – Télécommande de 8 Couleurs Sans Fil 19939 – Tapis Interactif sans fil, set de contacteurs ROMPA® 18870 ‐ Cube parlant ROMPA® 20402 – Mini Cube parlant ROMPA® 20563 – Microphone WiFi® 19214 – Panneau de couleurs changeantes ROMPA® 9. Fonctionnement • Branchez • Allumez (le bouton en haut du panneau) • Regardez le changement des couleurs Volume On/Off Power...
-
Page 8: Caractéristiques Techniques
Couvercle du panneau: ne contient pas de plastifiant Important Uniquement les contacteurs ROMPA doivent être utilises avec la fontaine à fibres optiques. Ne jamais brancher de radio, d’amplis ou d’autres appareils à fiche jack. Cela risquerait d’endommager l’électronique des deux appareils. De même, un micro portable ne doit pas être branché directement au panneau ... -
Page 9: Soin Et Entretien
13. Installation • Noter: En attachant des installations à l’arrière du panneau, prenez soin – tenez compte des parties électriques à l’intérieur du panneau. Vue du DEVANT du panneau Il est sûr attacher les installations ici Matériel: panneau fibreux 12mm d’épaisseur Note: A short screw (no longer than 20mm) can be used in the safe fixing ar Noter: servez‐vous d’une courte vis (moins de 20mm) aux bords indiqués avec les lignes diagonales • Ce panneau pèse vers 21 kilos. Prenez cette information en considération quand vous fixez le panneau au mur. Les installations ne sont pas comprises – elles dépendent la construction de votre mur et devraient supporter 21 kilos sans risque. • Attachez les installations (ex. plaques) à l’arrière du panneau. Tout bien considérez quand vous achetez des installations. Par exemple, le mur pourrait être une cloison, ® de Placoplâtre ou un mur solide en brique. En cas de doute en ce qui concerne les installations, cherchez les conseils d’un maçon convenablement qualifié ou votre service de maintien. 14. Soin et Entretien Pour accéder à l’intérieur du panneau: • Il est fort probable qu’il n’est pas nécessaire accéder à l’intérieur du panneau, mais s’il est nécessaire : • Débranchez. Détachez le panneau du mur. Mettez le panneau sur une surface plate. •... -
Page 10: En Cas De Problèmes
PANNEAU FONTAINE 18537, Octobre 2013 Copyright ROMPA® Ltd... - Page 11 1. Nome do Produto Painel Interactivo “A Fonte” 2. Código do Produto 18537 3. Cor Preto ou Branco 4. Descrição Breve Agora compatível com WiFi! Controlo sem fios – interacção fácil e remota! Um painel de LEDs iluminado sequencialmente em forma de fonte, que o envolve suavemente em vários efeitos visuais. Ideal para pessoas com visão diminuída. Perfeito para utilizar em conjunto com o Cubo Falante, Painel Mudança de Cores e Controlador ...
- Page 12 6. Estimulações Snoezelen® • Visão • Audição 7. Melhor Utilização • Fixar na parede. Alternativamente, este painel pode ser utilizado com um suporte 18518/15822 – consulte o catálogo Rompa para mais informações. • Supervisione sempre a utilização deste produto 8. Compatibilidade com Produtos ROMPA® 19487 – Painel interactivo de 8 botões 19939 – Tapetes Interactivos 18870 – Cubo Falante 20402 – Mini Cubo Falante 20563 – Microfone WiFi 19214 – Painel Mudança de Cores 9. Começar • Ligue o painel na tomada. • Ligue o painel no botão ON/OFF situado no topo do painel • Aprecie o visor que muda de cor! Volume...
-
Page 13: Especificações Técnicas
10. Descrição Detalhada UTILIZAÇÃO PASSIVA O visor vai percorrer a sequência que mostra uma fonte em que as cores mudam de baixo para cima. Existem 8 cores neste ciclo – vermelho, azul, verde, amarelo, cor de rosa, roxo, cor de laranja, branco (sem nenhuma ordem em particular). Não existe activação por som no modo passivo. UTILIZAÇÃO INTERACTIVA Existe uma ligação Jack de 6.3mm no centro do painel por baixo do visor. Sem nenhum Jack introduzido, o visor vai repetir continuamente. Pode ligar qualquer switch Rompa nesta ligação. Quando pressiona o switch o visor vai percorrer o seu ciclo uma vez. Quando liga o switch pela primeira vez, o visor apaga‐se. O visor vai permanecer apagado até que o switch seja pressionado. Quando o switch é pressionado é reproduzido um tema relacionado com água (ex: água a correr). Se pressionar o switch durante o ciclo, irá ouvir o próximo som. 11. Segurança • Supervisione sempre a utilização deste produto • Manuseie com cuidado • Utilize apenas no interior 12. Especificações Técnicas ... -
Page 14: Cuidado E Manutenção
• Olhe para a fonte de alimentação – a luz está acesa? A luz deve estar constantemente acesa. Se a luz tremer, a fonte de luz tem um defeito. Se não acende de todo, a fonte de alimentação está avariada: em ambos os casos entre em contacto connosco. PAINEL INTERACTIVO ‘A FONTE’ 18537, October 2013 Copyright ROMPA® Ltd ...
