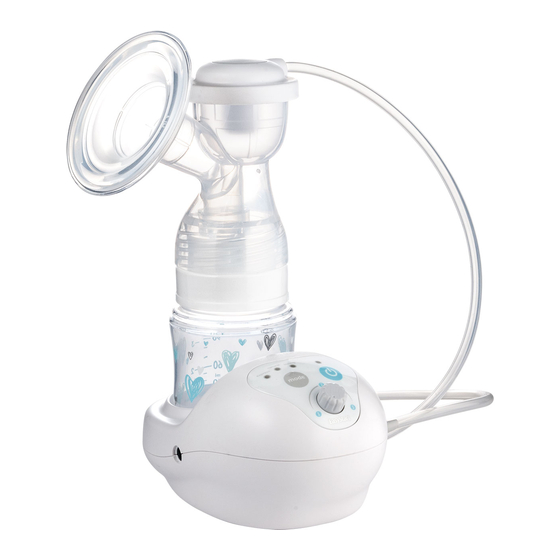

Electric breast pump

Advertisement

Quick Links

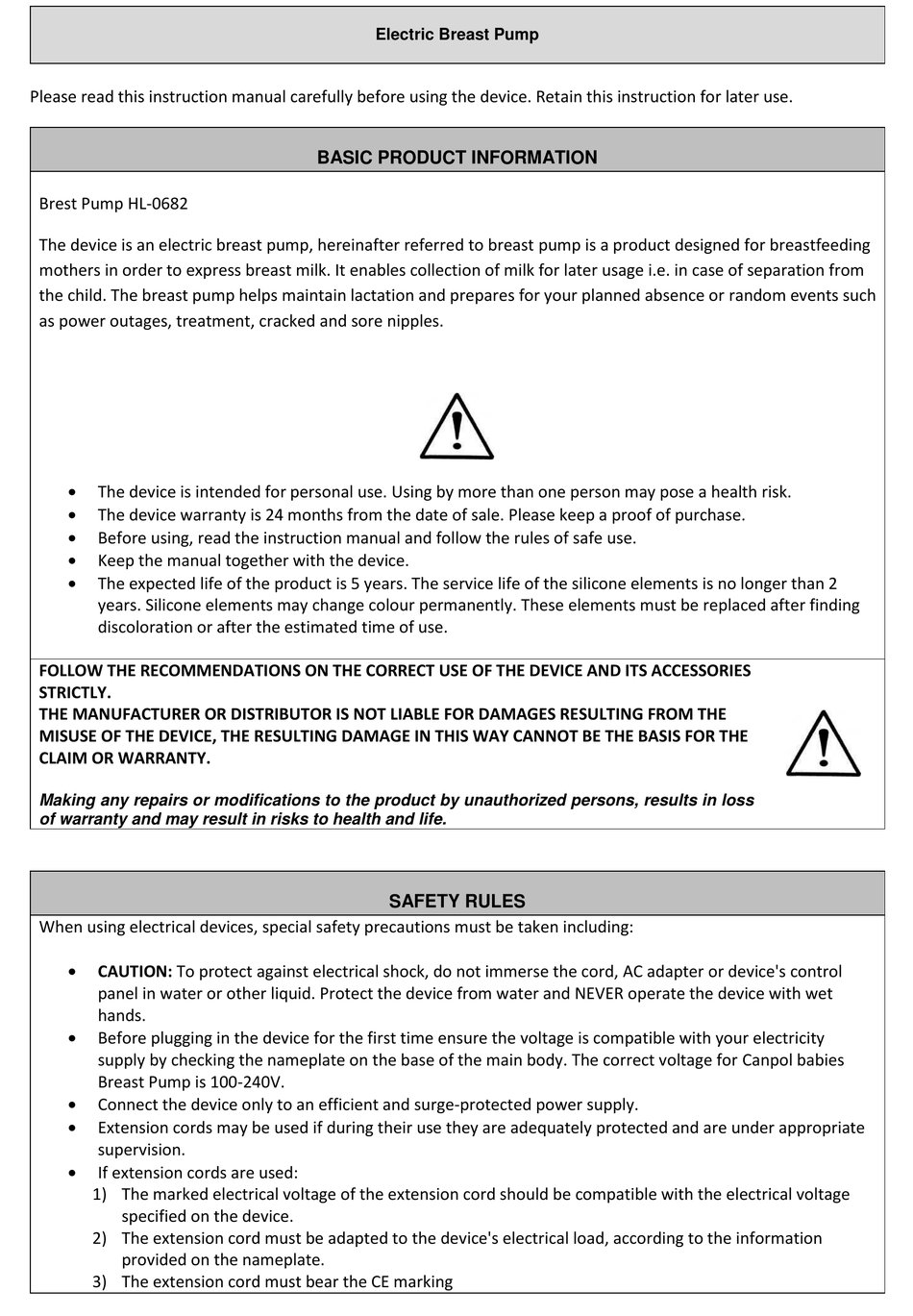

Please read this instruction manual carefully before using the device. Retain this instruction for later use.
Brest Pump HL-0682
The device is an electric breast pump, hereinafter referred to breast pump is a product designed for breastfeeding
mothers in order to express breast milk. It enables collection of milk for later usage i.e. in case of separation from
the child. The breast pump helps maintain lactation and prepares for your planned absence or random events such
as power outages, treatment, cracked and sore nipples.
The device is intended for personal use. Using by more than one person may pose a health risk.
The device warranty is 24 months from the date of sale. Please keep a proof of purchase.
Before using, read the instruction manual and follow the rules of safe use.
Keep the manual together with the device.
The expected life of the product is 5 years. The service life of the silicone elements is no longer than 2
years. Silicone elements may change colour permanently. These elements must be replaced after finding
discoloration or after the estimated time of use.
FOLLOW THE RECOMMENDATIONS ON THE CORRECT USE OF THE DEVICE AND ITS ACCESSORIES
STRICTLY.
THE MANUFACTURER OR DISTRIBUTOR IS NOT LIABLE FOR DAMAGES RESULTING FROM THE
MISUSE OF THE DEVICE, THE RESULTING DAMAGE IN THIS WAY CANNOT BE THE BASIS FOR THE
CLAIM OR WARRANTY.
Making any repairs or modifications to the product by unauthorized persons, results in loss
of warranty and may result in risks to health and life.
When using electrical devices, special safety precautions must be taken including:
CAUTION: To protect against electrical shock, do not immerse the cord, AC adapter or device's control
panel in water or other liquid. Protect the device from water and NEVER operate the device with wet
hands.
Before plugging in the device for the first time ensure the voltage is compatible with your electricity
supply by checking the nameplate on the base of the main body. The correct voltage for Canpol babies
Breast Pump is 100-240V.
Connect the device only to an efficient and surge-protected power supply.
Extension cords may be used if during their use they are adequately protected and are under appropriate
supervision.
If extension cords are used:
1) The marked electrical voltage of the extension cord should be compatible with the electrical voltage
specified on the device.
2) The extension cord must be adapted to the device's electrical load, according to the information
provided on the nameplate.
3) The extension cord must bear the CE marking
Electric Breast Pump
BASIC PRODUCT INFORMATION
SAFETY RULES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HL-0682 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Canpol Babies HL-0682

  • Page 1  Before plugging in the device for the first time ensure the voltage is compatible with your electricity supply by checking the nameplate on the base of the main body. The correct voltage for Canpol babies Breast Pump is 100-240V.
  • Page 2 4) The extension cord cannot bear signs of any damage. 5) The cord should be arranged so that it does not drape over the countertop or table top where it can be pulled by children or tripped over unintentionally.  Do not leave the device unattended when it is plugged in.
  • Page 3: Technical Description

    The product is not a toy. Use and store the pump and all its parts out of the reach of children. Do not disassemble the product. DO NOT use a power supply or batteries that have not been attached to the device. It is forbidden to redesign and modify the product.
  • Page 4 Disassemble, wash and disinfect the breast pump components which come in contact with mother's milk, always before and after each use of the breast pump. Do not wash or disinfect control panel or AC adapter.  Ensure the overall purity of the product. Prevent the build-up of dust and other contaminants that may adversely affect the work of the product.
  • Page 5 SET PARTS a) Silicone massaging cushion b) Breast pump body c) Membrane d) Membrane cap e) Silicone anti-return valve Bottle g) Dust cover h) Silicone tubing Tubing connector Pump unit with control panel k) Buttle cap Screw cap m) Teat n) Sealing disc o) Bottle adaptor p) AC adapter...
  • Page 6: Control Panel Description

    Spare parts Silicone anti-return valve – 3 pcs s) Membrane – 1 pc PIC 2 – Pump unit with control panel Control panel description ON/OFF button – Turning ON/OFF (pressing turns on the device automatically) Phase button – enables changing modes Pumping strength regulation –...
  • Page 7: Cleaning And Disinfection Instructions

    CLEANING AND DISINFECTION INSTRUCTIONS Before first and each subsequent use disassemble the breast pump. Wash all components of breast pump and bottle in warm water with mild detergent, then rinse thoroughly and disinfect in accordance to rules below. Before first use, disinfect all components which come in contact with mother's milk (membrane cap fig 1.d, membrane (fig.
  • Page 8: Assembling Instructions

    Warning! Before each use, check the condition of all elements for cracks, tears, discoloration or deterioration, as they may affect the effectiveness of the device. How to disinfect the teat? Before first and subsequent use wash the teat with warm water then place it in boiling water for 5 min. This is to ensure hygiene.
  • Page 9 Fig. 4.5 Connect one tubing connector (fig 1.I) of the tube to the membrane cap (fig 1.D) and the other end tubing connector (fig 1.I) to the pump unit (fig 1.J). Make sure that the tube is not tangled. Fig. 4.6 Fit the funnel cover (fig 1.G). Fig.
  • Page 10: Pumping Instructions

    4. Sit comfortably with good back support and relax. Place the baby's photo in front of you or express milk in his presence - eye contact with your child stimulates lactation. Do not express milk when you are stressed or tired, as this inhibits milk flow. 5.
  • Page 11: Suction Level

    When milk appears, press the phase change button to enter the expressing phase. The button allows you to freely and repeatedly switch between phases of stimulation and expressing. If you do not change the phase yourself, after 2 minutes of the stimulation phase, the pump unit will switch automatically on lately set stage of expressing phase.
  • Page 12 7. Shake the container to combine separated fat molecules with the remaining volume of milk. 8. DO NOT store milk on the shelves placed on the refrigerator door. 9. NEVER refreeze defrosted milk. 10. DO NOT add fresh breast milk to already defrosted milk. 11.
  • Page 13: Troubleshooting

    TROUBLESHOOTING While using the breast pump you may encounter small difficulties. Before you decide to place the claim, try to solve these minor problems by yourself. Here are some useful tips. Pain when using the breast pump:  Put a warm compress on your breast and wait 5 minutes, use the breast pump again. ...
