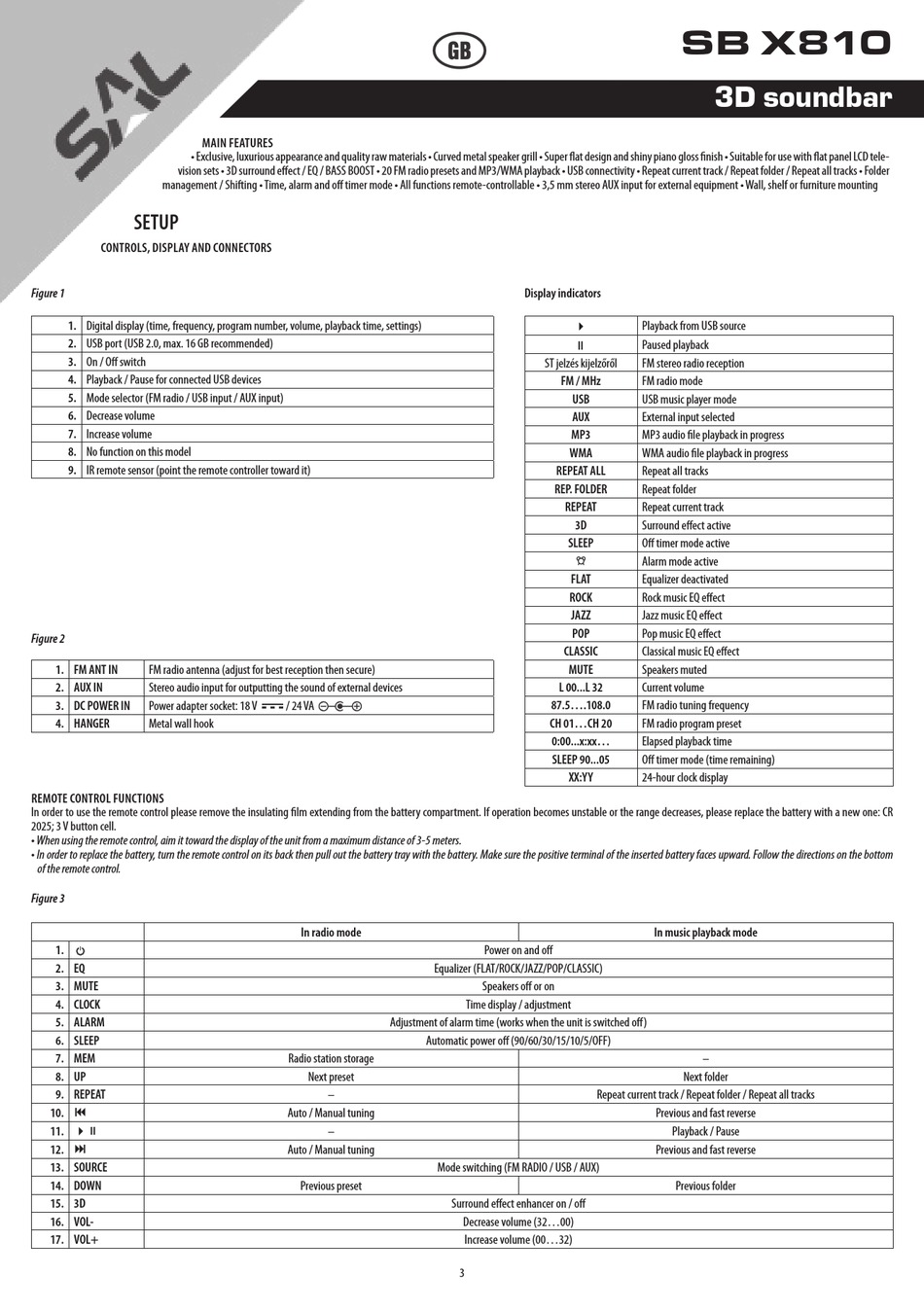

SAL SB X810 Manual

Main features
• Exclusive, luxurious appearance and quality raw materials • Curved metal speaker grill • Super flat design and shiny piano gloss finish • Suitable for use with flat panel LCD tele-
vision sets • 3D surround effect / EQ / BASS BOOST • 20 FM radio presets and MP3/WMA playback • USB connectivity • Repeat current track / Repeat folder / Repeat all tracks • Folder
management / Shifting • Time, alarm and off timer mode • All functions remote-controllable • 3,5 mm stereo AUX input for external equipment • Wall, shelf or furniture mounting
setuP
Controls, disPlay and ConneCtors
Figure 1
1. Digital display (time, frequency, program number, volume, playback time, settings)
2. USB port (USB 2.0, max. 16 GB recommended)
3. On / Off switch
4. Playback / Pause for connected USB devices
5. Mode selector (FM radio / USB input / AUX input)
6. Decrease volume
7. Increase volume
8. No function on this model
9. IR remote sensor (point the remote controller toward it)
Figure 2
FM radio antenna (adjust for best reception then secure)
1. fM ant in
Stereo audio input for outputting the sound of external devices
2. auX in
Power adapter socket: 18 V
3. dC PoWer in
4. HanGer Metal wall hook
reMote Control funCtions
In order to use the remote control please remove the insulating film extending from the battery compartment. If operation becomes unstable or the range decreases, please replace the battery with a new one: CR
2025; 3 V button cell.
• When using the remote control, aim it toward the display of the unit from a maximum distance of 3-5 meters.
• In order to replace the battery, turn the remote control on its back then pull out the battery tray with the battery. Make sure the positive terminal of the inserted battery faces upward. Follow the directions on the bottom
of the remote control.
Figure 3
1.
2. eQ
3. Mute
4. CloCK
5. alarM
6. sleeP
7. MeM
8. uP
9. rePeat
10. 9
11. 4 ;
12. :
13. sourCe
14. doWn
15. 3d
16. Vol-
17. Vol+
/ 24 VA
in radio mode
Equalizer (FLAT/ROCK/JAZZ/POP/CLASSIC)
Adjustment of alarm time (works when the unit is switched off)
Automatic power off (90/60/30/15/10/5/OFF)
Radio station storage
Next preset
–
Auto / Manual tuning
–
Auto / Manual tuning
Mode switching (FM RADIO / USB / AUX)
Previous preset
Surround effect enhancer on / off
3
display indicators
4
;
ST jelzés kijelzőről
fM / MHz
usB
auX
MP3
WMa
rePeat all
reP. folder
rePeat
3d
sleeP
flat
roCK
JaZZ
PoP
ClassiC
Mute
l 00...l 32
87.5....108.0
CH 01...CH 20
0:00...x:xx...
sleeP 90...05
XX:yy
Power on and off
Speakers off or on
Time display / adjustment
Repeat current track / Repeat folder / Repeat all tracks
Decrease volume (32...00)
Increase volume (00...32)
SB X810
3D soundbar
Playback from USB source
Paused playback
FM stereo radio reception
FM radio mode
USB music player mode
External input selected
MP3 audio file playback in progress
WMA audio file playback in progress
Repeat all tracks
Repeat folder
Repeat current track
Surround effect active
Off timer mode active
Alarm mode active
Equalizer deactivated
Rock music EQ effect
Jazz music EQ effect
Pop music EQ effect
Classical music EQ effect
Speakers muted
Current volume
FM radio tuning frequency
FM radio program preset
Elapsed playback time
Off timer mode (time remaining)
24-hour clock display
in music playback mode
–
Next folder
Previous and fast reverse
Playback / Pause
Previous and fast reverse
Previous folder
