STRIKEMASTER LITHIUM 24V BATTERY CHARGING BASE Quick Start Manual

STRIKEMASTER
QUICK START
for use with strikemaster
4aH (LtV-b)
battery onLy

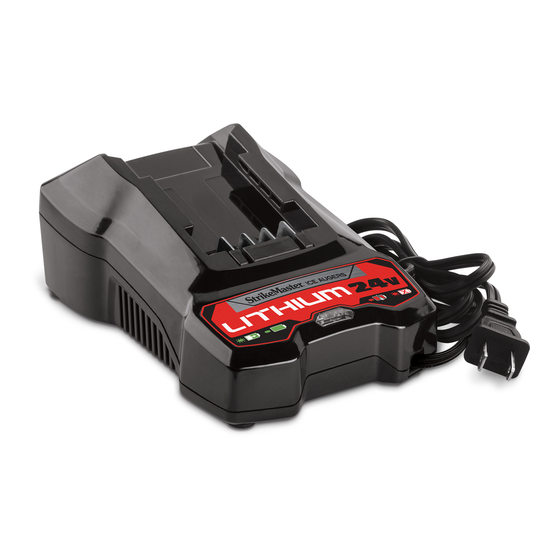

1. Remove 24v Battery Charging Base from carton (Image 1).
2. Unpack Battery Charging base and plug it in. Slide Battery onto Battery Charging Base
using the channels on both sides as a guide. Press down until you hear it click in place.
Leave Battery on Battery Charging Base until fully charged (Image 2).
NOTE: Battery is not fully charged when first removed from box.
3. When Battery Charging Base indicator shows solid green, your Battery is fully
charged (Image 3). Your StrikeMaster Lithium 24v Battery is ready for use.
Your StrikeMaster Lithium 24v Battery Charging Base has built in "Smart Charging
Technology". The chart below shows you the correct charging procedure/occurrences
that could be experienced while charging.
4. Your Battery must be charged in a location where the temperature is more than 35°F/2°C,
but less than 100°F/38°C.
CHARGING PROCEDURE
BATTERY IS CHARGING
FULLY CHARGED
BATTERY IS TOO COOL OR
TOO WARM TO CHARGE
(REFER TO OWNERS MANUAL)
DEFECTIVE BATTERY
(REFER TO OWNERS MANUAL)
REGISTER YOUR PRODUCT ONLINE TO ACTIVATE YOUR WARRANTY
©2020 StrikeMaster, Inc. August 2020
LITHIUM 24v BATTERY CHARGING BASE
®
®
.
www.strikemaster.com/warranty
IMAGE 1
IMAGE 2
IMAGE 3
GREEN (BLINKING)
GREEN
RED
RED (BLINKING)
