Summary of Contents for AG Neovo FMC-06

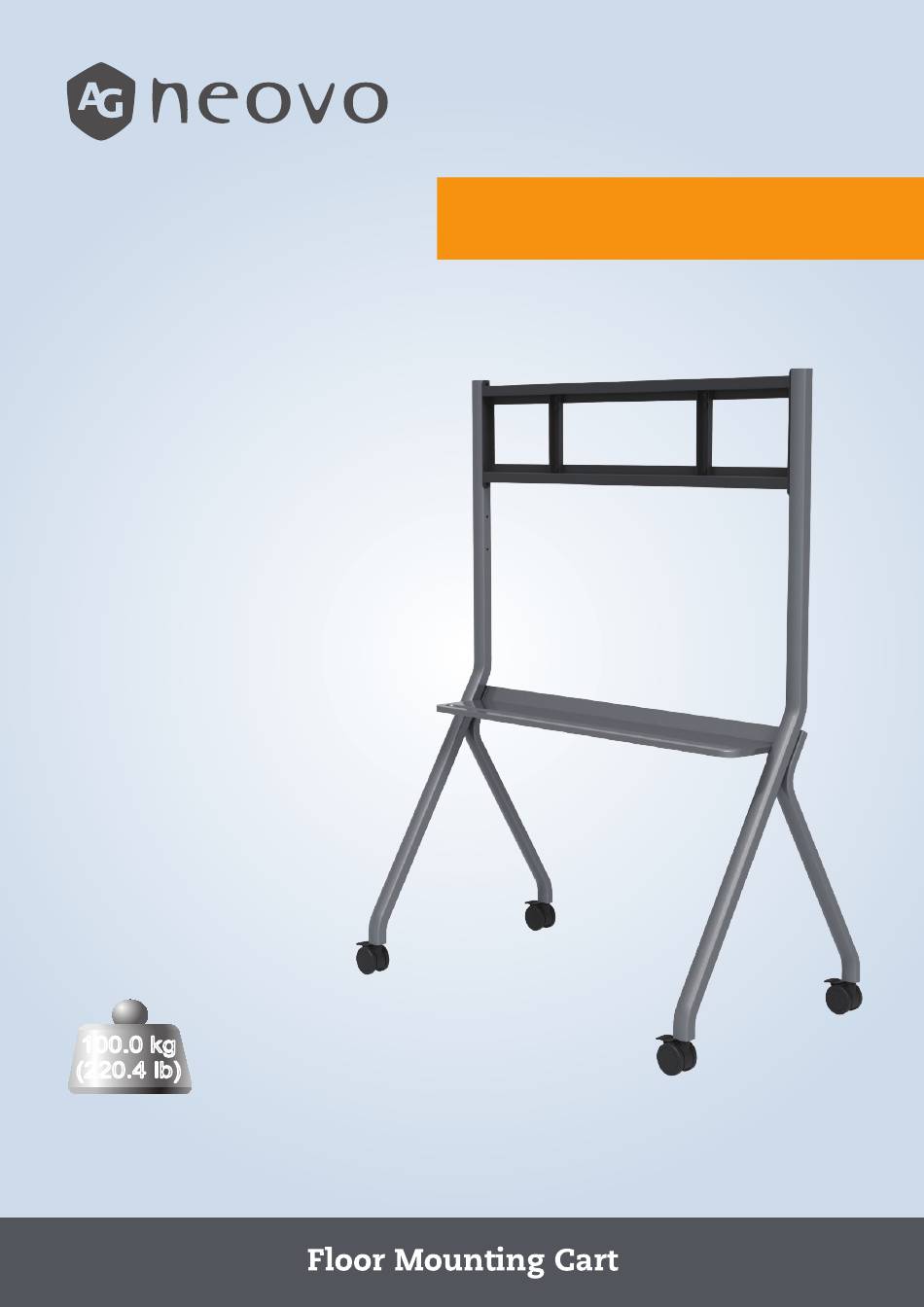

- Page 1 FMC-06 100.0 kg (220.4 lb) Installation Manual...
- Page 2 FMC-06 Installation manual To ensure using the stand correctly and safely, please read this manual carefully before installation. This model is recommended to be used for 55-86 inch interactive flat panel. Maximum load capacity: 100KG. Bill of materials: A- Left leg 1pcs...
- Page 3 Step 1 : Adjust the wheel to the brake state and screw it into the leg ( Figure 1). When turning the wheel, adjust the wheel to the brake state in advance Figure 1...
- Page 4 Step 2: Attach the wall bracket to the end leg (Figure 2). Bracket hole Wall bracket hole position suggestion Monitor size Matching hole position 55" 3rd and 6th holes Positive 65"- 70" 2nd, 5th hole 75"- 86" 1st and 4th hole Positive Figure 2...
- Page 5 Step 3: Attach the other leg on the other end of the wall bracket (Figure 3). Figure 3 Step 4: Assemble the tray between the two columns (Figure4). Insert the tray into the positioning bolt on the column firstly Snap the tray into the positioning bolt Tighten all bolts Figure 4...
- Page 6 Step 5 : According to the actual requirements of the whole machine, lock the wall hanging strip on the whole machine (Figure 5). Figure 5 Step 6: The assembled machine will be hung on the wall bracket and the safety screw of the wall hanging strip will be locked ( Figure 6).
- Page 7 Remarks: In some cases, the machine's wall mount bracket don't match with wall mount of the stand, and need to be adjusted with the wall mount together. Following is the adjusting process: 1. Lock the wall hanging board to the wall bracket Positive Positive Make sure that the...
- Page 8 Step 7: After the assembly is completed, refer to the figure below. FMC-06_User Manual_V011...
