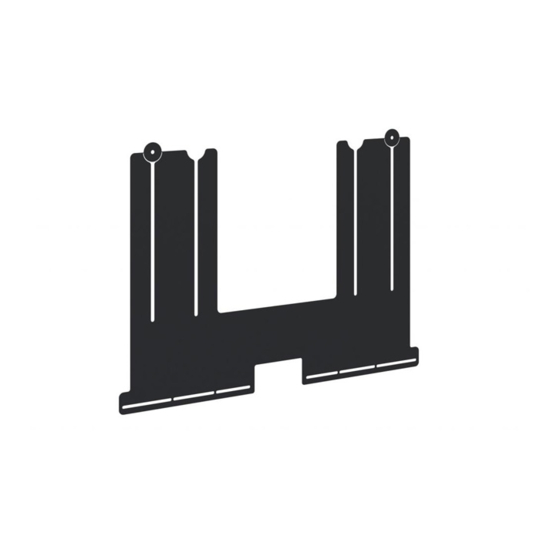

- Page 1 FMA-01 Soundbar Bracket for Touch Display Floor Trolley and Wall Lift 4.0 kg (8.8 lb) Installation Manual...
- Page 2 Soundbar Bracket for Touch Display Floor Trolley and Wall Lift mounting with M4-M6 MOUNTING INSTRUCTIONS MON.0220 2a | M4 | 2x 2b | M5 | 2x 2c | 25x45 | 2x...
- Page 3 CAUTION Max. weight on FMA-01 is 4kg 2a | (optional) 2x 2b | (optional) 2x 2c | 2x...
- Page 4 Always lift with two people and use proper lifting techniques when installing or mounting the display! NOTE: carefully maneuver the FMA-01 (with the soundbar) up, between the display and the VESA bracket NOTE: After mounting the display and universal bracket FMA-01 tighten the four bolts!
- Page 5 13.25 13.25 76.75 76.75 FMA-01_User Manual_V010...
