NTC HC10B Installation & User Manual

INSTALLATION & USER GUIDE
Thermostat: HC10B

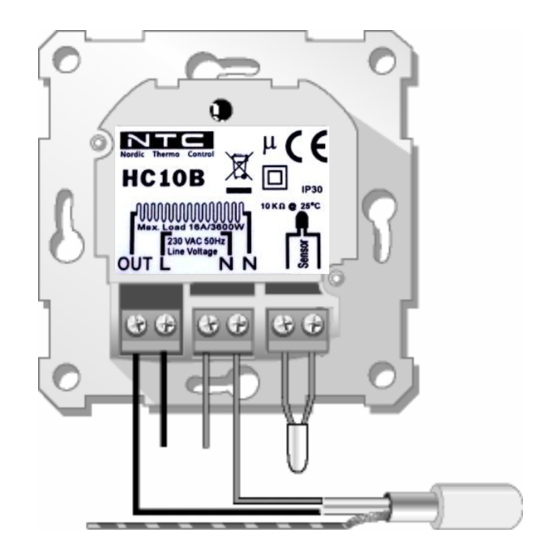

Fig. 1 Connections
L / N: Line and Neutral
Mains 230-240 VAC connection
OUT / N: Heating cable connection
Sensor: Floor sensor connection
Earth connected separately
User instructions - General information.
A) What HC10B does

HC10B is a digital thermostat for precise control of electric underfloor heating.

HC10B starts automatically in Quickstart = Manual mode and floor sensor

HC10B can also perform night and day setback in three different ways
B) IMPORTANT!
Important information before connecting the underfloor heating

To ensure optimum service life of the underfloor heating, the material in which the heating system is laid must be allowed to
dry for a minimum of 28 days before switching on the heat.

A new installation of HC10B and underfloor heating must be carried out by an authorised electrician.

Exchanging an HC10B, is allowed to do by the end-user in most countries.

HC10B must not be covered
C) Programs in HC10B
C1) Quickstart

Switch on and the underfloor heating will start up.

The temperature is set to 21
 The temperature can be altered with [▼] and [▲]

The display shows the set temperature

The floor sensor will automatically start operation
C2) Night and day setback programs

HC10B holds three different night and day setback programmes.

They each control the temperatures and time settings. i.e. low temperature at night and during working hours, higher
temperature at morning and evening.

For each program the starting time and temperature are determined. Start times and temperatures are set at the factory, but
can be changed as required. The factory setting is shown in Table 1.

Night and day setback ensures minimum power consumption. With optimum adjustment of the underfloor heating the average
temperature can be dropped by up to 3
the circumstances and on what you want from the underfloor heating.

Max. and min. limits are in all programs Max: 27
Program 1: Settings for Monday to Friday, and settings for Saturday and Sunday.
Program 2: Settings for All Weekdays.
Program 3: Settings for Each Day of the Week separately.
Table 1: Factory setting for night and day setback.
Times and temperatures can be changed as required. See section 3.4) and 3.5).
O
C
o
C, giving potential power savings of up to 15%. The savings will naturally depend on
o
C Min.: 15
Technical data:
Voltage:
Frequency:
Resistive load:
Inductive load:
Ingress protection: IP30
Temperature range: 5 °C - 40 °C
Tolerance sensor:
Signal sensors:
Sensor type:
Terminals:
Apply:
 LVD 2014/35/EU
 EN60730-2-9
 EN 50081-1
 EN 50082-1
 RoHS
o
C.
UK 0200008-2.3
230-240 VAC
50-60 Hz
1 6 A (3600 W-230 VAC)
1 A
±1.5 °C @ 10-30 °C
Room, Floor, Combined
NTC 10 kΩ @ 25 °C Double
insulated
– 4.0 mm
² ²
1.5 mm
